Overview

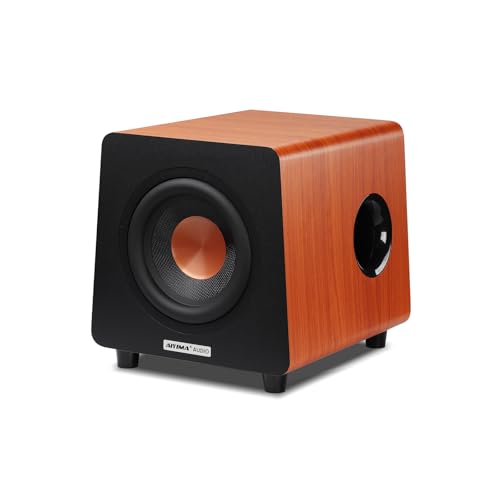

The AIYIMA 800X is an 8-inch powered subwoofer designed to enhance bass response in home audio systems. Built around Texas Instruments’ TPA3116D2 Class-D amplifier chip and MVSILICON’s BP1048B2 Bluetooth processor, it targets budget-conscious users seeking straightforward bass augmentation with multiple connectivity options [1][2]. The trapezoidal enclosure design features MDF construction with claimed frequency coverage from 30Hz to 300Hz.

Scientific Validity

\[\Large \text{0.5}\]

Manufacturer specifications indicate signal-to-noise ratio ≥85dB and harmonic distortion <1% [1]. For subwoofers, the SNR specification falls between sufficient (80dB) and excellent (105dB+) levels. THD is specified as <1%, placing it below the level considered problematic for subwoofers (1% or above). No credible third-party measurement data is available for independent verification. Since evaluation relies solely on manufacturer specifications without independent verification, conservative scoring is applied per policy guidelines. The frequency response specification (30Hz-300Hz) lacks deviation measurements necessary to assess performance against standard ±3dB criteria for subwoofers. Dynamic range and crossover performance specifications are not provided, preventing comprehensive evaluation of measurement criteria applicable to subwoofers.

Technology Level

\[\Large \text{0.4}\]

The implementation utilizes standard contemporary components without proprietary technology development. The TPA3116D2 amplifier provides up to 2×50W at 4Ω and represents mature, widely-adopted Class-D technology [2]. BP1048B2 Bluetooth 5.0 processor handles wireless connectivity with standard codec support [3]. No significant technical differentiation or innovation is evident in the design approach, with competitors easily able to replicate the technical implementation using identical or equivalent components.

Cost-Performance

\[\Large \text{0.6}\]

Target price: 195.99 USD. Equipped with 100W–150W amplification, multiple inputs (RCA, AUX, LFE), and adjustable crossover (50–250Hz). The Rockville Rock Shaker 8” at 124.95 USD provides equivalent user-facing functions (RCA inputs, LFE, adjustable crossover 50–200Hz, powered Class-D) and equal-or-better manufacturer specs: 200W RMS versus 100–150W, and 20–200Hz versus 30–300Hz for low-frequency extension [4]. CP = 124.95 USD ÷ 195.99 USD = 0.637, rounded to 0.6.

Reliability & Support

\[\Large \text{0.4}\]

AIYIMA provides 14-day return window, shorter than typical 30-day industry standard [5]. Support infrastructure includes phone and multiple messaging platforms, though 72-hour response wait times are mentioned. The TPA3116D2 and BP1048B2 components represent proven, reliable integrated circuits with established track records. No specific failure rate data or extended warranty information is publicly available.

Rationality of Design Philosophy

\[\Large \text{0.8}\]

AIYIMA demonstrates scientifically rational design philosophy with explicit emphasis on “science and technology as foundational to product development” while avoiding occult audio claims [6]. The cost structure reflects functional priorities with active elimination of brand premiums and non-performance-related expenses. Technical implementation focuses on proper utilization of high-performance Texas Instruments Class-D amplifier technology rather than proprietary development, representing rational cost-performance optimization aligned with measurable improvements.

Advice

The AIYIMA 800X offers acceptable value for users prioritizing cost-effectiveness in 8-inch subwoofer selection. The rational design approach and proven component selection provide reliable foundation for bass augmentation in budget systems. However, significantly cheaper alternatives with superior specifications exist, and lack of independent measurement verification limits appeal for users requiring verified performance data. Consider if 14-day return window meets your evaluation needs.

References

1. AIYIMA 800X - Amazon Product Page
2. TPA3116D2 Datasheet - Texas Instruments
3. BP1048B2 Datasheet - MVSILICON
4. Rockville Rock Shaker 8” - Amazon Product Page
5. AIYIMA Return and Refund Policy
6. About AIYIMA

(2026.2.24)
