Overview

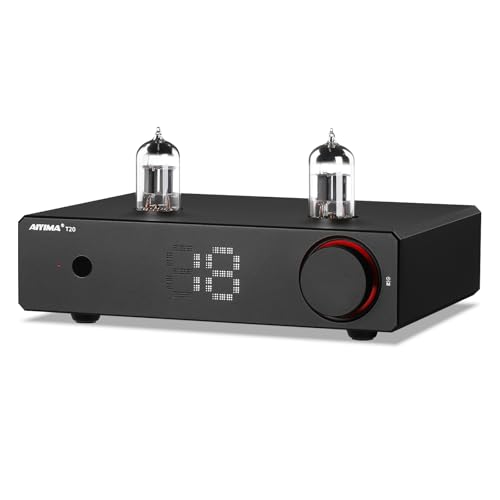

The Aiyima T20 is a fully balanced line preamplifier using two ECC83 (12AX7) tubes plus TI LME49720 (socketed, user-replaceable) and OPA1612 op-amps. It provides balanced XLR and unbalanced RCA inputs/outputs, digital volume with remote control, and 12 V trigger in/out—features rarely seen at this price. (Manufacturer/retailer documentation [1][2].)

Scientific Validity

\[\Large \text{0.7}\]

Manufacturer/retailer specifications report, for the line outputs, SNR ≥ 112 dB, THD+N 0.003 %, dynamic range 109 dB, noise floor 20 µV, and frequency response 20 Hz–20 kHz (±0.2 dB) [1]. If met, these figures approach transparency versus typical audibility thresholds (SNR ≈ 105 dB, THD+N ≤ 0.01 %). However, no third-party lab measurements are available as of 2025-08-21, and the tube stage can introduce harmonic coloration even when headline metrics are strong. Provisional score reflects promising specs with limited independent verification. (Specs/price sources [1][2].)

Technology Level

\[\Large \text{0.6}\]

The T20’s hybrid topology (ECC83 tubes + LME49720/OPA1612 op-amps) and fully balanced signal path are competent, with practical touches like swappable dual op-amp packages and a 12 V trigger [1]. These are mature, mainstream design choices rather than novel advances; parts such as TI’s LME49720 are well-known, high-performance audio op-amps [8]. Overall, technically sound but not groundbreaking.

Cost-Performance

\[\Large \text{1.0}\]

Cost-performance compares against the cheapest product with equal-or-better user-facing functions and measured performance. We surveyed balanced preamps with XLR I/O, remote, and published performance figures.

• Cheapest equal-or-better found: Fosi Audio ZP3 — XLR/RCA in/out, remote and 12 V trigger, with published SNR ≥ 115 dB and THD+N ≤ 0.0007 % at 199.99 USD [3].
• Cheaper but **not equivalent:** Douk Audio H8 — adds BT/headphone functions and XLR I/O at 149.99 USD, but performance is clearly lower (SNR ≥ 103 dB, THD 0.05 %) and therefore fails the equal-or-better criterion [4].

Since no cheaper equal-or-better option was found relative to the T20 price of 179 USD [2], CP is set to 1.0 by rule. (Comparator evidence [3][4].)

Reliability & Support

\[\Large \text{0.5}\]

AIYIMA’s site documents a 14-day money-back return window; broader warranty terms for T20 are not explicitly posted at the time of writing [6]. Some AIYIMA models indicate a 1-year warranty in their manuals, suggesting a likely baseline but not confirmed for T20 [7]. User-serviceable tubes and socketed op-amps aid maintainability. Lack of long-term reliability data and limited official warranty clarity keep the score average.

Rationality of Design Philosophy

\[\Large \text{0.4}\]

From a fidelity-first standpoint, inserting a tube gain stage does not contribute to improving transparent-level measured performance; it typically increases harmonic distortion and variability relative to solid-state. While the T20 adds practical features (balanced I/O, remote, trigger) and targets affordability, the core choice to prioritize tube coloration over strictly minimizing distortion/noise is not a rational path toward maximum measured transparency. Therefore the rationality score is set lower despite the attractive functionality and price [1][2].

Advice

For listeners wanting balanced XLR connectivity plus a touch of tube character at the lowest possible cost, T20 is a uniquely affordable entry point [1][2]. If absolute transparency is the goal and the budget allows, solid-state options with stronger published performance such as the Fosi ZP3 exist—though at higher price [3]. For reference-grade solid-state preamp performance with balanced topology (and headphone drive), Audio-GD’s NFB-1AMP remains a higher-tier alternative, again costlier [5].

References

[1] Audiophonics — “Aiyima T20 Tube Balanced Preamplifier (2× ECC83)—Specs” — https://www.audiophonics.fr/en/preamplifiers-volume-controllers/aiyima-t20-p-21019.html — accessed 2025-08-21. (Lists SNR ≥ 112 dB, THD+N 0.003 %, dynamic range 109 dB, FR ±0.2 dB, 12 V trigger, op-amp types.)

[2] AIYIMA (official) — “AIYIMA T20” product page (price) — https://www.aiyima.com/products/aiyima-t20 — accessed 2025-08-21. (Confirms existence and price around 179.99 USD; tube/XLR features.)

[3] Fosi Audio (official) — “ZP3 Preamplifier” — https://fosiaudio.com/products/zp3-preamplifier — accessed 2025-08-21. (States 199.99 USD; SNR ≥ 115 dB; THD+N ≤ 0.0007 %; XLR/RCA in/out; remote; 12 V trigger.)

[4] Douk Audio (official) — “H8 HiFi Tube Bluetooth Preamp Receiver (Balanced XLR/RCA)” — https://doukaudio.com/products/douk-audio-h8-hifi-tube-bluetooth-preamp-receiver-balanced-xlr-rca-pre-amplifier-headphone-amp — accessed 2025-08-21. (Lists 149.99 USD; SNR ≥ 103 dB; THD 0.05 %; fails equal-or-better vs T20.)

[5] Audio-GD (official) — “NFB-1AMP Specifications” — http://www.audio-gd.com/Pro/Headphoneamp/NFB1AMP/NFB1AMPEN.htm — accessed 2025-08-21. (Balanced topology, gain, power; reference-class alternative.)

[6] AIYIMA (official) — “Return & Refund Policy” — https://www.aiyima.com/pages/return-and-refund-policy — accessed 2025-08-21. (14-day return window.)

[7] ManualsLib — “AIYIMA A07 MAX Manual — Product Warranty (1 year)” — https://www.manualslib.com/manual/3374685/Aiyima-Audio-A07-Max.html?page=5 — accessed 2025-08-21. (Indicative warranty example; not product-specific to T20.)

[8] Texas Instruments — “LME49720 Dual High-Performance Audio Op-Amp” — https://www.ti.com/product/LME49720 — accessed 2025-08-21. (Part identification only; not used to infer system-level performance.)

(2025.8.21)
