Overview

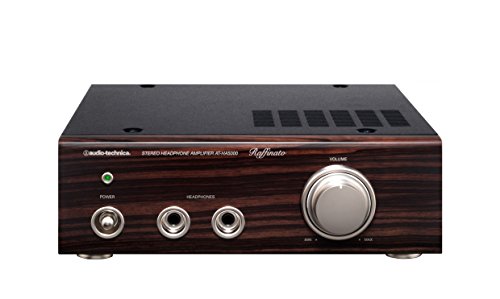

The Audio-Technica AT-HA5000 is a discontinued Class A headphone amplifier that was positioned as a premium offering in Audio-Technica’s lineup. Featuring ebony wood front panel, Class A topology with Ultra High Current (UHC) MOSFETs, and R-core transformers, the amplifier delivers 1,200mW per channel at 32Ω. While demonstrating competent measured performance with 117dB SNR and 0.006% THD, the unit represents traditional audiophile design philosophy emphasizing aesthetics over measurement optimization. Currently available only on the used market for approximately 645 USD.

Scientific Validity

\[\Large \text{0.6}\]

The AT-HA5000 demonstrates solid measured performance meeting transparent levels in most key areas. Signal-to-noise ratio of 117dB significantly exceeds the 105dB transparent threshold, placing it in excellent territory. Frequency response of 5Hz-200kHz far surpasses typical audible range requirements. Output impedance of 0.1Ω provides excellent headphone matching characteristics across impedance ranges from 16-600Ω.

The 0.006% THD specification appears to exceed the 0.05% excellent threshold for headphone amplifiers, though these manufacturer specifications require independent verification. Power output of 1,200mW at 32Ω is adequate but not exceptional by current standards. Critical limitation exists as these represent manufacturer specifications rather than verified third-party measurements, requiring conservative evaluation approach pending independent verification.

Technology Level

\[\Large \text{0.4}\]

The amplifier employs conventional Class A MOSFET topology using Hitachi 2SK2955/2SJ554 complementary pairs rated at 60V/45A with ±18V rails. While representing competent engineering execution with quality components including Neutrik jacks and R-core transformers, the design utilizes mature rather than cutting-edge technology. Audio-Technica’s in-house UHC MOSFET implementation demonstrates solid technical execution but lacks proprietary innovations or advanced features.

Modern competitors achieve superior measured performance through more sophisticated approaches including advanced feedback topologies, improved power supply designs, and digital integration. The purely analog/mechanical approach excludes modern advantages like DSP processing, software control, or intelligent power management. Technology represents established rather than innovative solutions easily replicated by competitors.

Cost-Performance

\[\Large \text{0.2}\]

Current market price for the AT-HA5000 is approximately 645 USD on the used market. Equipped with headphone amplification functions and 117dB SNR, 1,200mW output at 32Ω, and 0.006% THD are equivalent-or-better in the Schiit Magni Unity. The Magni Unity provides superior measured performance with THD+N <0.0001% versus 0.006%, SNR >122dB versus 117dB, and 2,500mW versus 1,200mW output at 32Ω, exceeding AT-HA5000 in all measured performance aspects while offering equivalent headphone amplification functionality.

CP = 119 USD ÷ 645 USD = 0.18

The comparison reveals superior measured performance available at dramatically lower cost, demonstrating poor cost-performance relative to current market alternatives.

Reliability & Support

\[\Large \text{0.4}\]

The amplifier benefits from inherently robust Class A construction with quality components including Neutrik connectors and R-core transformers, providing solid mechanical reliability. Simple discrete MOSFET topology with minimal complex circuitry reduces potential failure points compared to more sophisticated designs. Audio-Technica maintains generally positive reliability reputation in professional audio equipment.

However, product discontinuation significantly impacts long-term support prospects. Standard two-year warranty period was typical for category but no longer applicable for used units. Parts availability and specialized repair support for discontinued models presents growing challenges as time progresses. Global Audio-Technica service network exists but prioritizes current product lines over legacy equipment support.

Rationality of Design Philosophy

\[\Large \text{0.3}\]

The design philosophy emphasizes traditional audiophile aesthetics and subjective Class A topology preferences rather than measurement-focused optimization. Substantial investment in cosmetic elements including exotic ebony wood front panel and machined brass insulators provides no measurable performance benefit, representing inefficient cost allocation compared to measurement-focused competitors.

Class A operation choice lacks scientific justification versus more efficient topologies achieving superior measured results. Conservative approach avoiding digital integration, software control, or modern power management techniques while competitors demonstrate measurable advantages through advanced implementations. Product discontinuation without successor suggests stagnation in Audio-Technica’s amplifier development direction rather than progression toward improved measured performance.

Advice

The AT-HA5000 represents a competently executed but outdated approach to headphone amplification. While measured performance reaches acceptable levels in most areas, dramatically superior alternatives exist at much lower cost points. The Schiit Magni provides measurably better THD+N, SNR, and equivalent output power at 119 USD versus 645 USD used market pricing for the AT-HA5000.

Potential buyers seeking Class A topology for subjective preferences should recognize that measured performance advantages are not demonstrated over modern efficient designs. Budget-conscious users will find significantly better measured performance and reliability in current production amplifiers at a fraction of the cost. Collectors interested in Audio-Technica heritage or ebony wood aesthetics may find reasonable value given the substantial cost differential, though measured performance benefits are not demonstrated.

References

[1] Audio-Technica, AT-HA5000 Product Page, https://www.audio-technica.co.jp/product/AT-HA5000, accessed 2025-10-04

[2] Schiit Audio, Magni Unity Headphone Amplifier, https://www.schiit.com/products/magni-unity, accessed 2025-10-04, THD+N <0.0001%, SNR >122dB, 2,500mW output at 32Ω
