Overview

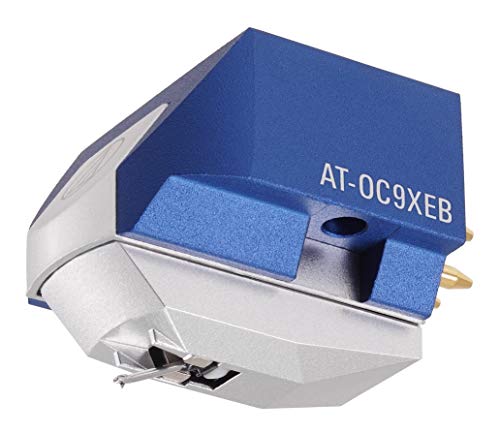

The Audio-Technica AT-OC9XEB is an MC stereo cartridge released in 2019 as the fourth generation of the company’s traditional OC9 series. Manufactured at the Fukui factory in Japan, it features dual moving coil construction and PCOCC (Pure Copper by Ohno Continuous Casting process) coils. Equipped with a bonded elliptical stylus and aluminum cantilever, it is positioned as an entry-level MC cartridge at 259 USD. The design is said to reflect Audio-Technica’s 50 years of technical expertise, but objective evaluation against modern technical standards is necessary.

Scientific Validity

\[\Large \text{0.2}\]

All record cartridges, including the AT-OC9XEB, fall far short of the “transparent” performance levels achieved by modern digital playback technology due to their physical limitations. The signal-to-noise ratio of vinyl playback remains around 60-70dB even under the best conditions, significantly below the 105dB+ standard easily met by inexpensive DACs. From this perspective, the scientific validity in terms of faithful reproduction of the master source must be rated as extremely low.

For comparison within the analog domain, this product (with a bonded elliptical stylus) has published specs of a 20-30,000Hz frequency response and 25dB of channel separation (at 1kHz). In contrast, the less expensive comparison target, the AT-VM95ML (with a Microlinear stylus), has specs of 20-25,000Hz and 23dB. While this product appears slightly superior on the spec sheet, the Microlinear stylus is fundamentally superior in terms of actual tracking ability and distortion due to its shape. It is therefore reasonable to judge that the cheaper alternative provides equivalent or better fidelity in the audible range.

Technology Level

\[\Large \text{0.2}\]

The PCOCC coil and dual moving coil structure have certain technical significance but represent industry-standard approaches. The combination of aluminum body and bonded elliptical stylus is a solid design choice, but innovation is limited. The adoption of neodymium magnets and pure iron yoke contributes to magnetic energy improvement, but these are common technologies in modern times. While precision Japanese manufacturing is commendable, no notable elements are observed in design philosophy or technical originality. No clear technical advantage is confirmed compared to competing products in the same price range.

Cost-Performance

\[\Large \text{0.7}\]

Compared to this product’s price of 259 USD, a more affordable MM cartridge, the Audio-Technica AT-VM95ML (approx. 170 USD), offers equivalent or better performance with a more advanced Microlinear stylus. The calculation is: 170 USD ÷ 259 USD ≈ 0.656, which rounds to a score of 0.7. From a user’s perspective, the stylus performance has a greater impact on sound quality than the technical difference between MC and MM. The existence of a more affordable and higher-performing alternative means the cost-performance cannot be rated top marks. While it is one of the cheapest in the MC cartridge category, its value decreases when the comparison is made across categories.

Reliability & Support

\[\Large \text{0.7}\]

Audio-Technica maintains a reliable support system as an established Japanese manufacturer. Quality control at the Fukui factory is strict, and manufacturing quality is stable. The warranty period is a standard one year, but after-service as a domestic manufacturer is comprehensive. However, due to the consumable nature of cartridges, the significance of long-term warranties is limited. Regarding repair support, repairs other than stylus replacement are basically not performed, and replacement is the standard response. The historical continuity of the OC9 series provides confidence in future parts supply, but there is no special advantage compared to other domestic manufacturers.

Rationality of Design Philosophy

\[\Large \text{0.2}\]

For the purpose of “faithfully reproducing the information from the master source,” the process of tracing a record groove with a physical stylus, amplifying a weak signal, and then applying RIAA equalization is markedly irrational compared to modern digital technology. The signal path is complex and inherently introduces numerous factors that degrade sound quality. In an era where less expensive digital file playback can achieve far simpler and higher fidelity reproduction, the rationality of choosing vinyl playback is extremely low from a pure performance perspective.

However, when viewed within the framework of vinyl playback as a hobby, the design philosophy of this product has its rational aspects. Its market positioning as an entry-level MC cartridge is clear, opening the door to the world of MC cartridges at an incredible cost-performance. In terms of providing the basic performance of an MC cartridge at this price point and offering a path for future upgrades, it can be said to have commercial and hobbyist rationality.

Advice

When considering the purchase of the AT-OC9XEB, you must first clarify your objective. If what you seek is “high fidelity” that is as faithful as possible to the master source, this product is not recommended. A DAC or other digital playback equipment, available for the same price or less, will outperform the AT-OC9XEB in every objective metric, including S/N ratio, distortion, and frequency response accuracy.

On the other hand, if your goal is to “enjoy the act of playing records itself with excellent cost-performance,” then the AT-OC9XEB is one of the best choices on the market. Compared to competitors like the Denon DL-103 (approx. 399 USD) and Ortofon Quintet Red (approx. 399 USD), this product’s 259 USD price is overwhelming. It is an ideal entry point for experiencing the unique hobby and ritual of the vinyl medium at an astonishingly low price for an MC cartridge. It is recommended to purchase this product with the understanding that it is for economically enjoying the hobby of analog audio, rather than for the pursuit of fidelity.

(2025.7.12)
