Overview

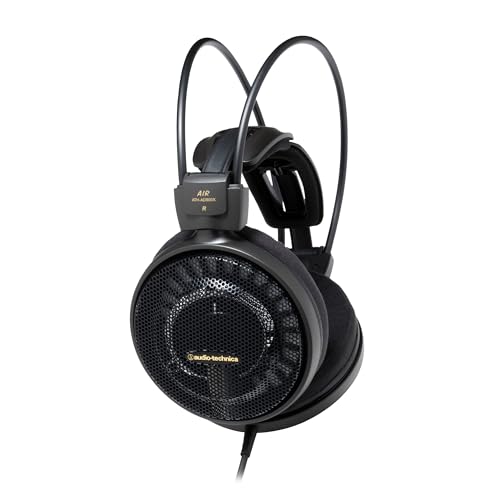

The Audio-Technica ATH-AD900X is positioned as a high-fidelity open-back headphone for audiophile applications, featuring large 53mm drivers exclusively designed for this model. The headphones incorporate Audio-Technica’s proprietary copper-clad aluminum-wire (CCAW) voice coil technology and rare-earth magnets, claiming an extended frequency response from 5Hz to 35kHz. With 3D Wing Support Housing for comfort and lightweight honeycomb aluminum construction, the ATH-AD900X represents Audio-Technica’s established engineering approach in the premium headphone segment at approximately 299.95 USD.

Scientific Validity

\[\Large \text{0.3}\]

Third-party measurements reveal significant performance limitations that place the ATH-AD900X below competitive standards. Frequency response shows approximately 10dB underemphases in critical 2-4kHz and 5-7kHz ranges, substantially exceeding the ±5dB problematic threshold for headphones [1]. Total harmonic distortion peaks near 1% at moderate levels and reaches 6% at 30Hz bass frequencies, significantly above the 0.5% problematic level for headphones [1]. While channel tracking remains within 2dB and sensitivity measures adequately at 106.2dB (300Hz-6kHz, 1mW), the combination of substantial frequency response deviations and elevated distortion levels indicates performance below transparent thresholds across multiple critical indicators.

Technology Level

\[\Large \text{0.6}\]

Audio-Technica demonstrates established technical competence through proprietary CCAW voice coil technology and in-house 53mm driver design exclusively developed for this model [2]. The CCAW technology represents Audio-Technica’s accumulated expertise and has been adopted by other manufacturers, indicating merit. The company’s 60+ year track record in transducer design provides substantial technical foundation. However, the implementation remains primarily analog/mechanical without integration of modern digital signal processing or software technologies. While the engineering demonstrates solid fundamentals and proprietary elements, the conservative approach lacks significant advancement relative to contemporary headphone technology standards.

Cost-Performance

\[\Large \text{0.6}\]

This site evaluates based solely on functionality and measured performance values, without considering driver types or configurations.

Analysis reveals the Sennheiser HD560S provides equivalent or better performance at significantly lower cost. Equipped with equivalent open-back design, analog connectivity options, and detachable cable functionality, the HD560S demonstrates superior measured performance with close compliance to target frequency response across broad regions, avoiding the ATH-AD900X’s significant 10dB underemphases in critical 2-4kHz and 5-7kHz ranges [3]. Audio Science Review measurements show the HD560S achieves a performance score of 85.6 without equalization and exhibits low THD at 80dB SPL, compared to the ATH-AD900X’s THD peaks near 1% and 6% distortion at bass frequencies [1][3]. Both products offer equivalent user-facing functions including open-back design and standard analog connectivity.

CP = 170 USD ÷ 299.95 USD = 0.57

Current market price for the ATH-AD900X is approximately 299.95 USD, while the superior-performing Sennheiser HD560S is available for approximately 170 USD [3].

Reliability & Support

\[\Large \text{0.7}\]

Audio-Technica provides standard 2-year warranty coverage in the USA with global support infrastructure through manufacturer service centers [4]. The open-back design features relatively simple construction with minimal moving parts, providing reasonable durability expectations for the product category. Audio-Technica’s 60+ year operational history demonstrates established reliability track record, though no specific failure rate data is available for this model. The company maintains manufacturer-backed support and repair services through authorized service centers, providing adequate post-purchase support structure. Construction quality appears consistent with Audio-Technica’s established manufacturing standards.

Rationality of Design Philosophy

\[\Large \text{0.3}\]

Audio-Technica’s stated focus on natural, accurate sound reproduction appears contradicted by measured performance results showing significant frequency response deviations and elevated distortion levels. The 299.95 USD price point is not well-justified by measured performance relative to superior alternatives available at lower cost. While the company demonstrates appropriate functional integration for headphone category applications, the conservative analog-only approach without modern optimization techniques limits performance advancement potential. Design costs do not appear optimized for measured performance value, with premium pricing unsupported by corresponding measurement superiority. The philosophy emphasizes traditional approaches without demonstrable advantages over more cost-effective implementations achieving superior measured results.

Advice

The ATH-AD900X faces significant challenges in the competitive open-back headphone market due to measured performance limitations relative to its price point. Potential purchasers seeking accurate audio reproduction should consider the Sennheiser HD560S, which provides equivalent or better performance characteristics without the significant frequency response deviations at approximately 130 USD less cost [3]. For users specifically committed to Audio-Technica products, consider whether the brand preference justifies the performance compromise and substantial cost premium. The ATH-AD900X may appeal to listeners who prioritize the specific tonal signature and comfort design, but objective measurement standards indicate equivalent alternatives exist at significantly lower prices for transparency-focused applications.

References

[1] Audio-Technica ATH-AD900x Review, Reviewed.com, https://www.reviewed.com/headphones/content/audio-technica-ath-ad900x, accessed 2025-12-03, THD measurements at 100dBA, frequency response analysis 300Hz-6kHz

[2] Audio-Technica ATH-AD900X Product Information, Audio-Technica Official, https://www.audio-technica.com/en-us/ath-ad900x, accessed 2025-12-03, CCAW technology specifications

[3] Sennheiser HD560S Review (Headphone), Audio Science Review, https://www.audiosciencereview.com/forum/index.php?threads/sennheiser-hd560s-review-headphone.29603/, accessed 2025-12-03, ASR measurements including frequency response, THD, and performance scoring

[4] Audio-Technica Support Information, https://www.audio-technica.com/en-us/support, accessed 2025-12-03, warranty and service details

(2025.12.7)
