Overview

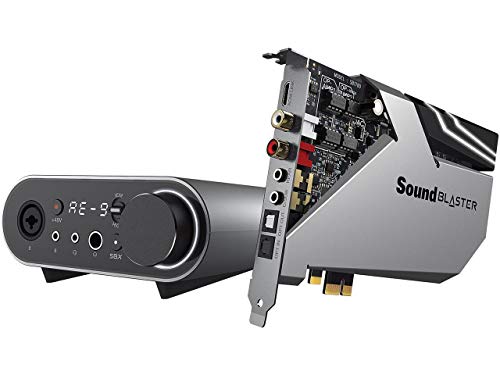

The Creative Sound Blaster AE-9 is the company’s flagship PCIe internal sound card. It features an ESS Sabre 9038 DAC and supports high-resolution audio playback up to 32bit/384kHz. Equipped with discrete Xamp headphone amplifier and phantom-powered XLR microphone input, it’s designed to serve both gaming and audiophile demands.

Scientific Validity

\[\Large \text{0.6}\]

Third-party data include Hardware Asylum’s RightMark Audio Analyzer loopback at 24bit/48kHz, reporting good FR/SNR/crosstalk from a self loopback path [1]. However, RMAA loopback reflects DAC→ADC within the device/PC and does not isolate the DAC/line-out absolute limits. Manufacturer claims (129 dB DNR, 0.0001% THD+N) are high but independent AP-grade analyzer datasets are sparse [2]. Considering the limited independent standardized measurements, the score is set to moderate-high (0.6).

Technology Level

\[\Large \text{0.8}\]

SABRE 9038-class DAC, discrete Xamp headphone bi-amp, swappable op-amps, Nichicon Fine Gold parts, low ~1Ω headphone out, up to 600Ω load, ACM with XLR mic and +48V phantom—all indicate a high implementation level [2]. Not absolute cutting-edge, but very mature design.

Cost-Performance

\[\Large \text{0.4}\]

Street price is around 293 USD as of Aug 2025 [3]. Among external USB audio interfaces that match core functions (DAC/headphone/line out plus XLR mic with +48V phantom) and show strong bench results, the MOTU M2 stands out at roughly 199 USD [4][5]. Independent measurements demonstrate transparent-level line-out performance and competent headphone output [4]. Price ratio ≈ 199 ÷ 293 ≈ 0.68. Even accounting for AE-9’s unique PCIe integration and surround/Dolby Live features (excluded from the pure audio parity scope), value is on the low side when comparing strictly on audio performance and basic I/O.

Reliability & Support

\[\Large \text{0.5}\]

Creative has long experience in sound cards and maintains ongoing driver releases. Standard warranty and global support infrastructure suggest industry-average reliability. Some platform-specific compatibility reports (e.g., Ryzen/PCIe Gen4) exist but have seen improvements with newer drivers [6].

Rationality of Design Philosophy

\[\Large \text{0.8}\]

The design balances measurable audio performance with practical I/O and workflow (ACM, XLR phantom). Gaming-centric features (Dolby Digital Live, Scout Mode) are value-adds. For noise isolation and simplicity, external USB interfaces can be preferable in sound-quality-first scenarios [2].

Advice

If you specifically want a PCIe internal solution consolidating many functions (incl. XLR phantom), AE-9 is compelling. If your goal is primarily audio performance with basic I/O, a well-measured external USB interface (e.g., MOTU M2) is cheaper and benefits from electrical isolation. Decide based on the need for AE-9’s unique multi-channel/Dolby features.

References

[1] Hardware Asylum, “Creative Sound Blaster AE-9 Ultimate Sound Card Review - Testing the Sound Blaster AE-9”, https://www.hardwareasylum.com/reviews/sound/creative_blaster_ae-9/page5.aspx (RMAA loopback overview)

[2] Creative official product page, “Sound Blaster AE-9” (specs incl. SABRE 9038-class DAC, 129 dB DNR, +48V phantom), https://jp.creative.com/p/sound-blaster/sound-blaster-ae-9/

[3] Price context (Japan), aggregator data around 293 USD as of Aug 2025

[4] Audio Science Review, “MOTU M2 USB Audio Interface Review” (bench measurements), https://www.audiosciencereview.com/forum/index.php?threads/motu-m2-review-audio-interface.19911/

[5] Price context (M2), official 199 USD and JP street ≈ 199 USD (Aug 2025)

[6] PC Watch feature on configurations/compatibility, https://pc.watch.impress.co.jp/docs/topic/special/1203443.html

(2025.8.9)
