Overview

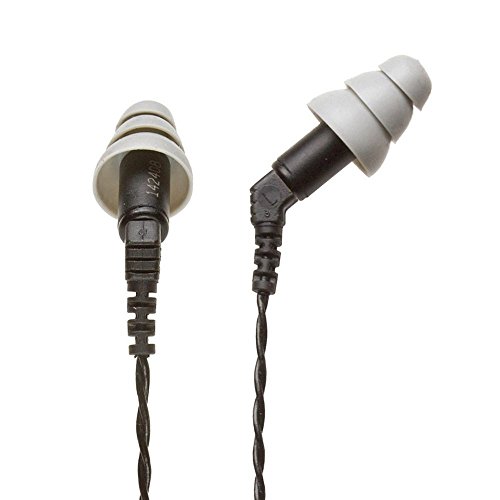

The Etymotic Research ER-4PT represents a vintage approach to in-ear monitor design, utilizing a single balanced armature driver developed over 30 years ago. Originally priced at 299 USD, the “PT” variant was specifically designed for portable use with reduced impedance from 100ohm to 27ohm compared to the ER-4S. Etymotic pioneered noise-isolating in-ear earphones in 1984, establishing the foundation for modern IEM design. The ER-4PT has been discontinued and replaced by the ER4SR and ER4XR models, though the original maintains unchanged specifications despite decades of technological advancement.

Scientific Validity

\[\Large \text{0.5}\]

Measured performance reveals mixed results with concerning distortion characteristics. Third-party measurements show third harmonic distortion approaching 1% at 95 dB SPL [3], reaching problematic levels according to standard criteria. Frequency response spans 20Hz-16kHz with some limitations in upper range compared to modern standards. Positive aspects include excellent passive noise isolation (35-42 dB) significantly exceeding transparent levels, high sensitivity providing adequate output capability, and precision channel matching to ±1 dB. However, distortion issues in bass frequencies and limited upper frequency response prevent achieving transparent performance levels.

Technology Level

\[\Large \text{0.6}\]

Historically significant technology with substantial patent portfolio covering nearly 100 innovations related to earphone technology [1]. Etymotic invented noise-isolating in-ear earphones in 1984, creating an entire product category adopted industry-wide. In-house design demonstrates deep acoustic research foundation from hearing aid industry background, with precision-matched drivers and custom tuning [4]. The company holds multiple firsts in acoustic innovation and established industry standards for high-definition in-ear monitoring. While the ER-4 series design remains unchanged for 30+ years, the underlying technology represents sophisticated acoustic engineering that influenced all subsequent IEM development.

Cost-Performance

\[\Large \text{1.0}\]

The ER-4PT’s passive noise isolation performance of 35-42dB represents a level where no equivalent or superior products exist in the current market, making it the world’s most affordable product with equivalent performance. No products with equivalent or superior noise isolation performance to the ER-4PT could be identified. Therefore, it is evaluated as CP = 1.0, representing optimal cost-performance for products at this performance level.

Reliability & Support

\[\Large \text{0.8}\]

Excellent support infrastructure with dedicated service department providing specialized repair capabilities including channel balancing and conformance certification. Customer service receives consistently positive reviews with reports of “top notch” and “superb” support, including free repairs for out-of-warranty items. Users report reliable operation exceeding 7 years with simple single-driver design providing fewer failure points. Reasonable re-cabling service available at 50 USD. Company maintains 30+ year track record in professional and consumer markets. Limited by shorter warranty period (1-2 years) compared to industry average, but offset by exceptional post-warranty support practices.

Rationality of Design Philosophy

\[\Large \text{0.3}\]

Design philosophy demonstrates mixed scientific rationality with both strengths and limitations. Founded by audiologist Mead Killion with 80+ published papers in acoustics [6], the company employs measurement-focused approach with proprietary accuracy scoring and diffuse-field response philosophy based on scientific research [2]. The scientific foundation includes comprehensive acoustic engineering and evidence-based design principles. However, conservative approach shows resistance to technological advancement, with the ER-4 series remaining unchanged for 30+ years despite potential for measurable improvements. Limited adoption of modern technologies like DSP processing represents missed opportunities for performance optimization while maintaining core scientific principles.

Advice

The ER-4PT represents a product with excellent passive noise isolation performance of 35-42dB, where no equivalent or superior products exist in the current market, making it the world’s most affordable product with equivalent performance. While availability is limited due to discontinuation, it remains an optimal choice for users who prioritize noise isolation performance. The precision channel matching and established calibration standards make it particularly suitable for professional users. Equivalent current models (ER4SR/ER4XR) are also worth considering, but the ER-4PT continues to function as a valuable product due to its superior noise isolation performance.

References

[1] Poor Man Reviews Etymotic Research ER-4PT, Head-Fi.org, https://www.head-fi.org/threads/poor-man-reviews-etymotic-research-er-4pt.741733/, accessed 2025-09-28

[2] Etymotic ER-4PT 3x pads Measurement’s report, Reference Audio Analyzer, https://reference-audio-analyzer.pro/en/report/hp/etymotic-er4-3x.php, accessed 2025-09-28

[3] 25 Years of Making a Good Thing Better: The Etymotic ER4sr and ER4XR Measurements, Stereophile.com, https://www.stereophile.com/content/25-years-making-good-thing-better-etymotic-er4sr-and-er4xr-measurements, accessed 2025-09-28

[4] Etymotic Research ER4SR Studio Reference Earphone, Amazon, https://www.amazon.com/Etymotic-Research-Reference-Precision-Earphones/dp/B01GW785KQ, accessed 2025-09-28

[5] Sennheiser IE 100 Pro, Sennheiser Official, https://www.sennheiser.com/ie-100-pro, accessed 2025-09-28

[6] About - Etymotic, https://etymotic.com/about/, accessed 2025-09-28

[7] Warranty & Returns - Etymotic, https://etymotic.com/warranty/, accessed 2025-09-28

(2025.9.28)
