Overview

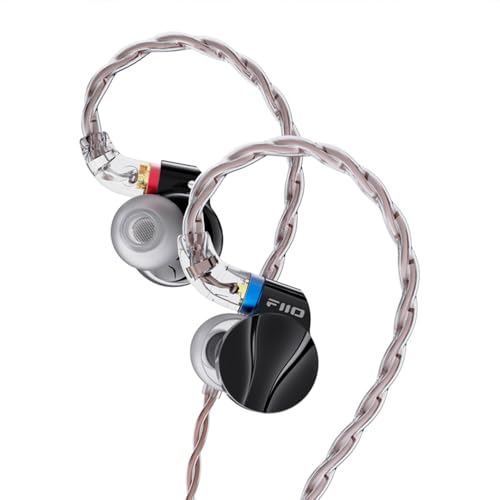

The FiiO FD15 represents the latest entry in FiiO’s dynamic driver IEM lineup, featuring a 13.8mm magnalium diaphragm driver housed in a 316L stainless steel shell. Building upon the success of the FD5, the FD15 introduces patented F.T.B.S. Tesla Valve bass enhancement technology and claims significant improvements in driver efficiency and power handling. Positioned as a mid-tier offering from FiiO, a company known for bringing affordable audio solutions to enthusiasts, the FD15 targets users seeking premium build quality and innovative acoustic engineering in the 150 USD price range.

Scientific Validity

\[\Large \text{0.3}\]

The FiiO FD15’s scientific validity is significantly compromised by measured frequency response deviations from transparent performance standards. Official specifications include frequency response 10Hz-40kHz, impedance 32Ω±15% @1kHz, and sensitivity 112dB/mW @1kHz [1]. Critical third-party measurements by Headfonics reveal “a large hump in the 2kHz region” and “7k peak” representing substantial deviations from flat response [2]. These measured deviations fall well outside the ±3dB tolerance for problematic performance levels in the critical 100Hz-16kHz range. The identified frequency response irregularities directly impact midrange transparency and high-frequency accuracy, positioning the FD15’s measured performance below acceptable scientific validity thresholds. Additional technical specifications including THD, SNR, and dynamic range data remain unavailable from independent sources.

Technology Level

\[\Large \text{0.8}\]

The FD15 demonstrates substantial technological advancement through several proprietary innovations. The patented F.T.B.S. Tesla Valve bass enhancement system (Patent ZL2024203547620) represents genuine acoustic engineering innovation, utilizing precisely calculated channel geometry within the earphone cavity to achieve fluid dynamics-based bass enhancement. The 13.8mm magnalium diaphragm with W-shaped DLC gasket design increases effective vibrating area by 30% compared to conventional diaphragms, while the lengthened 8.6mm voice coil delivers 78% increased driver power over its predecessor. The 1.5T external magnet design achieves 69.5% greater magnet volume, and the frontal acoustic prism with adaptive phase adjustment addresses high-frequency diffusion. These developments demonstrate significant technical expertise and patent development capability, positioning the FD15’s technology at a competitive level within the dynamic driver IEM category.

Cost-Performance

\[\Large \text{0.1}\]

The FD15’s cost-performance evaluation reveals significant pricing inefficiency when compared to the cheapest equivalent alternative. At 149 USD, the FD15 faces direct competition from the 7Hz Salnotes Zero at 19.99 USD, which provides equivalent user-facing functionality with detachable 0.75mm 2-pin cable, matching impedance (32Ω±15% @1kHz), comparable sensitivity (108dB/V@1kHz vs 112dB/mW@1kHz), overlapping frequency response (10Hz-20kHz), and superior measured performance with THD <1% @1kHz confirmed by Audio Science Review [3][4]. Both feature dynamic drivers with detachable cable systems and equivalent basic IEM functionality. CP = 19.99 USD ÷ 149 USD = 0.134, rounding to 0.1. This calculation demonstrates substantial pricing inefficiency, with equivalent functionality available at approximately 13% of the FD15’s retail price.

Reliability & Support

\[\Large \text{0.7}\]

FiiO provides adequate reliability and support infrastructure for the FD15. The 316L stainless steel shell construction offers superior durability compared to typical plastic housings, with the simple dynamic driver design inherently resistant to failure. FiiO maintains global email support through support@fiio.com with regional dealer networks providing localized service. The company’s established track record in the portable audio market demonstrates consistent support across product lines, though warranty periods vary by region and distributor. Repair services follow standard procedures with user-paid shipping to FiiO and company-paid return shipping. The robust mechanical construction and established support network position the FD15 favorably for long-term reliability, though the absence of firmware updates eliminates software-related support considerations.

Rationality of Design Philosophy

\[\Large \text{0.8}\]

The FD15’s design philosophy demonstrates rational engineering approach through patent-based acoustic innovations and measurable performance improvements. The Tesla Valve technology represents scientifically-grounded fluid dynamics application to bass enhancement, while driver parameter improvements (increased effective area, voice coil lengthening, magnetic flux enhancement) provide quantifiable engineering benefits. FiiO’s progression from FD5 to FD15 shows consistent performance advancement through mechanical optimization rather than purely cosmetic updates. However, the substantial investment in premium materials like 316L stainless steel contributes to cost without measurable performance benefits, suggesting partial rationality in resource allocation. The conservative approach to technology adoption, focusing on mechanical rather than digital integration, aligns with traditional audiophile preferences while limiting functional advancement potential.

Advice

The FiiO FD15 presents a challenging value proposition given the substantial cost-performance differential identified in evaluation. Users prioritizing premium build quality, patented Tesla Valve technology, and advanced driver materials may find justification in the FD15’s 316L stainless steel construction and magnalium diaphragm innovation. However, buyers focused on measured performance per dollar should seriously consider alternatives like the 7Hz Salnotes Zero, which provides equivalent basic IEM functionality with superior measured THD performance at approximately 13% of the FD15’s price. The FD15 makes sense primarily for users who specifically value FiiO’s proprietary acoustic innovations and premium materials over cost-effectiveness. Prospective buyers must carefully evaluate whether the patented technology, premium construction, and brand preference justify the significant price premium over functionally equivalent alternatives.

References

[1] FiiO, FD15 Official Product Page, https://www.fiio.com/newsinfo/930571.html, 2024 [2] Headfonics, FiiO FD15 Review, https://headfonics.com/fiio-fd15-review/, 2024 [3] Linsoul Audio, 7HZ Salnotes Zero, https://www.linsoul.com/products/7hz-salnotes-zero, 2024 [4] Audio Science Review, 7Hz Salnotes Zero IEM Review, https://www.audiosciencereview.com/forum/index.php?threads/7hz-salnotes-zero-iem-review.50226/, 2024

(2025.9.18)
