Overview

\[\Large \text{3.1}\]

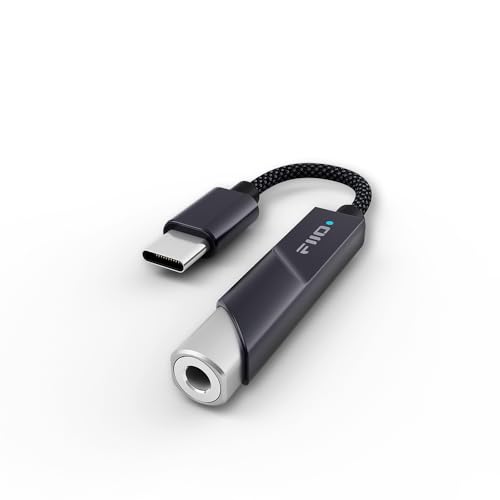

The FiiO KA11 is a compact USB DAC/amplifier dongle positioned in the affordable portable audio market. Featuring a Cirrus Logic CS43131 DAC chip and SGM8262 op-amp, it delivers up to 245mW of power output while supporting high-resolution audio formats up to 32-bit/384kHz and DSD256. At 8.5g and measuring just 44.5mm × 9.7mm × 10.5mm, the aluminum-magnesium alloy construction provides both durability and portability for smartphone and computer audio enhancement.

Scientific Validity

\[\Large \text{0.7}\]

Manufacturer specifications indicate SNR ≥125dB (32Ω, A-weighted) and THD+N <0.0006% at 32Ω, both exceeding transparent levels per measurement criteria. Dynamic range from CS43131 chip specifications shows 130dB (A-weighted) [3]. Conservative evaluation applied for non-third-party measurements by adjusting score 0.1 toward 0.5. Audio Science Review forum discussions report “2-3 dB of deviation” and thermal effects, indicating measurement variability, but core performance metrics suggest competent audio quality within transparent range [4].

Technology Level

\[\Large \text{0.6}\]

The KA11 demonstrates competent integration of contemporary components including the CS43131 DAC (2017), SGM8262 op-amp, and SA9312L USB interface. While representing solid in-house design by FiiO with appropriate digital/circuit integration and software control via FiiO Control app, it lacks proprietary patent technology or cutting-edge innovation. The implementation offers no significant competitive advantage duration and uses standard approaches easily replicated by competitors.

Cost-Performance

\[\Large \text{1.0}\]

At 29 USD, the KA11 represents competitive pricing within its specification class. The Tempotec Sonata HD Pro at 30 USD on AliExpress offers similar CS43131-based performance with 32-bit/384kHz and DSD256 support, but provides lower output power (60mW vs 200mW at 32Ω) and lacks app control functionality [2]. No current alternatives provide equivalent high-resolution format support (32-bit/384kHz + DSD256) combined with 200mW output power at lower cost. The KA11 stands as the most affordable option meeting these combined specifications.

Reliability & Support

\[\Large \text{0.7}\]

FiiO provides global support system through local agents, email support, and social media channels. The simple structure with aluminum-magnesium alloy construction and few moving parts ensures robust design resistant to degradation. However, international shipping costs for warranty service can be prohibitive. FiiO maintains established track record in portable audio market with ongoing support infrastructure, though specific warranty duration and failure rate data remain unspecified.

Rationality of Design Philosophy

\[\Large \text{0.7}\]

The KA11 demonstrates rational, measurement-focused design philosophy with published specifications and no occult claims. Costs contribute to function and performance improvement through component selection. However, the design represents incremental rather than innovative advancement, using standard 2017-era CS43131 DAC implementation without significant differentiation. While appropriate for portable applications, the approach lacks cutting-edge integration or cost optimization that would justify premium over basic alternatives.

Advice

The FiiO KA11 suits users requiring high-resolution audio format support (32-bit/384kHz PCM, DSD256) combined with 200mW output power for demanding headphones. The device provides good value when both high-resolution format support and substantial power output are essential. For basic audio enhancement without high-resolution requirements, simpler alternatives exist. Consider whether the specific combination of features justifies the purchase against individual usage patterns.

References

[1] FiiO Official KA11 Product Page, DAC and Headphone Amplifier KA11 Is Officially Released!, https://www.fiio.com/newsinfo/893399.html, 2024, Accessed 2025-09-17 [2] Tempotec Sonata HD Pro, AliExpress, https://www.aliexpress.com/item/4000328408705.html, CS43131 DAC, 32-bit/384kHz, DSD256, 60mW at 32Ω, 30 USD, Accessed 2025-09-17 [3] Cirrus Logic CS43131 Datasheet, A Thread Dedicated to Cirrus Logic CS43131, https://www.audiosciencereview.com/forum/index.php?threads/a-thread-dedicated-to-cirrus-logic-cs43131.23138/, Dynamic Range 130dB, THD+N -115dB, Accessed 2025-09-17 [4] Audio Science Review Forum, FIIO KA11 DAC dongle, https://www.audiosciencereview.com/forum/index.php?threads/fiio-ka11-dac-dongle.56189/, 2024, Accessed 2025-09-17

(2025.9.18)
