Overview

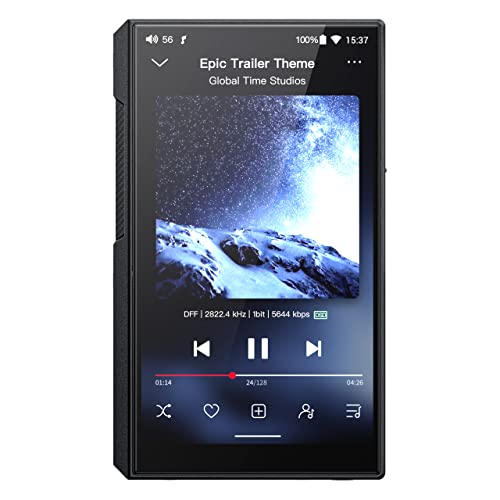

The FiiO M11S represents FiiO’s premium Android-based digital audio player featuring dual ES9038Q2M DACs, 4th generation FPGA processing, and comprehensive connectivity options. Positioned as a high-performance portable music solution, the M11S targets audiophiles seeking dedicated audio hardware with the convenience of Android 10 operating system. The device incorporates advanced timing architecture with femtosecond crystal oscillators and custom FPGA programming to achieve measurement-based performance improvements over previous generations.

Scientific Validity

The FiiO M11S demonstrates excellent measured performance across all key audio quality indicators, significantly exceeding transparency thresholds. SNR ≥123dB surpasses the transparent level requirement (105dB+), while THD+N ≤0.00043% (balanced output) achieves world-class distortion performance well below the 0.01% transparency threshold. Frequency response specification of 20Hz-20kHz (-0.5dB) meets ideal transparent level requirements exactly. Crosstalk performance >79dB exceeds the transparent level standard (-70dB or below), and the 1.8μV noise floor represents exceptional low-noise performance. Third-party measurements from Headfonics confirmed THD+N <0.0004%, validating manufacturer specifications [1]. Conservative evaluation accounts for limited third-party validation by applying framework-defined adjustment from primarily manufacturer-based specifications.

Technology Level

The M11S demonstrates significant technical advancement through proprietary FPGA implementation and sophisticated integration of cutting-edge technologies. FiiO’s 4th generation FPGA with phase-locked loop technology represents in-house patent development, while custom-coded unified clock source architecture showcases design ownership. The adoption of cutting-edge ES9038Q2M DAC technology paired with NDK femtosecond crystal oscillators represents current high-end timing implementation. Advanced integration combines digital processing (FPGA), precision analog circuits (OPA926 amplifiers), and software (Android OS) in a unified low-jitter architecture. This technical sophistication places the M11S among industry-leading implementations that other manufacturers would find attractive to adopt.

Cost-Performance

The FiiO M11S provides comprehensive DAP functionality including dual ES9038Q2M DACs, Android 10 OS with full app ecosystem, WiFi streaming capabilities, multiple output options (3.5mm, 2.5mm, 4.4mm), and power output up to 670mW@32Ω balanced. The FiiO M21 is equipped with superior specifications including quad CS43198 DAC chips in matrix configuration, Android 13 OS, 4GB RAM with 64GB storage, and higher power output up to 950mW@32Ω, providing equivalent-or-better user-facing functionality at significantly lower cost. CP = 329 USD ÷ 499 USD = 0.7. While the M11S offers premium FPGA processing and build quality, the 170 USD price premium over the equivalent-or-better M21 alternative limits cost-performance scoring despite strong technical execution.

Reliability & Support

The M11S benefits from solid-state design with no moving parts, utilizing quality components from established manufacturers (ES9038Q2M, OPA926, NDK crystals) that inherently reduce failure risk. FiiO provides global support through regional dealer networks with established track record in portable audio markets. Android 10 OS enables ongoing firmware updates, and FiiO demonstrates history of firmware support for DAP products. However, the standard 1-year warranty period falls below industry average of 2 years, limiting the overall reliability score despite otherwise strong support infrastructure and construction quality.

Rationality of Design Philosophy

FiiO demonstrates exemplary rational design philosophy through measurement-focused engineering achieving transparent-level specifications across all audio quality metrics. Technology investment directly contributes to measured performance improvements, with FPGA and precision crystal implementation providing quantifiable benefits including 62% noise floor reduction compared to previous generation. The M11S shows clear performance progression over predecessor models, while integration of cutting-edge DAC technology, FPGA processing, and Android ecosystem represents scientific approach to jitter reduction and functional advancement. The justified existence as dedicated audio equipment through superior measured performance versus general devices, combined with cost-effective technology adoption and elimination of subjective approaches, establishes strong rational foundation.

Advice

The FiiO M11S targets users requiring premium portable audio performance with Android ecosystem integration. Consider this device if you need transparent-level audio quality (≥123dB SNR, ≤0.00043% THD+N) in a dedicated portable format, utilize high-resolution audio files up to 384kHz/DSD256, require multiple output options including balanced connectivity, and value advanced FPGA processing technology. However, evaluate whether the 170 USD premium over equivalent-or-better alternatives like the FiiO M21 provides sufficient additional value for your specific requirements. The M11S excels in measured performance and technical sophistication but faces cost-performance pressure from the M21 which offers superior power output, newer Android OS, and more storage at significantly lower cost.

References

[1] Headfonics - FiiO M11S Review, https://headfonics.com/fiio-m11s-review/, accessed 2025-10-16, THD+N measurement validation

[2] FiiO Official Website - M11S Specifications, https://www.fiio.com/m11s, accessed 2025-10-16, manufacturer specifications and technical details

[3] FiiO Official Website - M21 Specifications, https://www.fiio.com/m21, accessed 2025-10-16, M21 comparator specifications and technical details

(2025.10.19)
