Overview

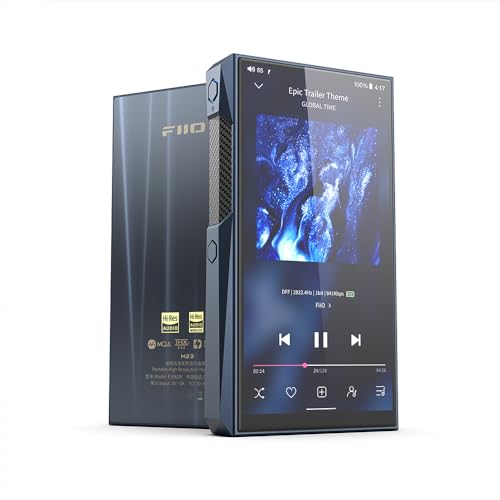

The FiiO M23 is a 2024 Android DAP built around AKM’s flagship split-architecture DAC combo (AK4191EQ + AK4499EX) and dual THX AAA 78+ amplification. It adds a hardware “Desktop mode” that powers the unit entirely from an external USB-C supply, plus broad streaming support (Roon Ready, major services) and 3.5 mm SE / 4.4 mm balanced I/O. In the US, typical street price is 720 USD for the aluminum version as of August 2025. [1][2][3]

Scientific Validity

\[\Large \text{0.8}\]

Manufacturer specifications indicate performance comfortably within transparency: THD+N 0.00038% @1 kHz, 32 Ω, –12 dBFS; SNR ≥125 dB; FR 20 Hz–20 kHz (flat). Balanced output power is ~475 mW/32 Ω in mobile (high-gain) and up to ~1000 mW/32 Ω per channel with the high-power/desktop supply path. These figures, taken with the stated test conditions, are far below audibility thresholds and align with transparent DAC/amp behavior. (Manufacturer specs.) [1][2][3]

Technology Level

\[\Large \text{0.7}\]

Notable engineering includes the split-DAC architecture (digital/analog separation with DWA routing), dual 4-way fully balanced THX AAA 78+ amps, FiiO’s DAPS (Android audio core bypass with unified low-jitter clock), and a true battery-bypass Desktop mode with a dedicated power-only USB-C port. The SoC (Snapdragon 660) and Android base are mature rather than cutting-edge, but overall implementation is thoughtful and robust. [2][3]

Cost-Performance

\[\Large \text{0.6}\]

Price basis (review target): 720 USD (US market, aluminum).
Cheapest equal-or-better comparator: iBasso DX170, 449 USD direct. It offers Android, Wi-Fi streaming, microSD, 3.5 mm + 4.4 mm outputs, and manufacturer-published measured performance equal-or-better (e.g., THD+N 0.00022% balanced, SNR 130 dB). [4][5]

Calculation: 449 USD ÷ 720 USD = 0.62… → 0.6 (rounded to one decimal).
Equivalence note: Functions (Android streaming, local storage, balanced out) match from a user perspective, and key specs (THD+N, SNR) are not worse; therefore DX170 qualifies as the cheapest equal-or-better option. (Manufacturer-supplied specs for DX170 from official manual.) [4][5]

Reliability & Support

\[\Large \text{0.7}\]

FiiO provides ongoing firmware support (e.g., M23 FW v1.0.1 public release) and documents local/OTA update paths. Warranty is handled by local agents under FiiO’s global warranty terms; market practice is typically 12 months for DAPs (confirm with your regional dealer). Battery life is quoted at ≈10.5 h (SE) / ≈9 h (balanced) and aligns with reports and official specs. [6][7][1][2]

Rationality of Design Philosophy

\[\Large \text{0.6}\]

The M23’s transparent-class performance, balanced I/O, and desktop-capable power path are rational choices. Still, when smartphones plus compact USB DAC/amps can achieve similar transparency and functionality at a fraction of the price, the existence case for a dedicated DAP narrows. The M23 is most rational where its integrated, app-ready, battery-bypass architecture is valued (portable/desktop hybrid use).

Advice

Choose the M23 if you want a single, integrated Android player with balanced power, bit-perfect playback, and genuine desktop operation without cycling the internal battery. If you’re price-sensitive and don’t need FiiO’s specific integration, the iBasso DX170 (or a phone + quality dongle) delivers comparable transparency for far less.

References

[1] FiiO M23 – Parameters (official): https://www.fiio.com/m23_parameters (accessed 2025-08-20)
[2] B&H – FiiO M23 product page (US specs, Desktop mode): https://www.bhphotovideo.com/c/product/1827189-REG/fiio_m23_portable_high_resolution_audio_music.html (accessed 2025-08-20)
[3] FiiO News – M23 officially released (Desktop mode explanation): https://www.fiio.com/newsinfo/907019.html (accessed 2025-08-20)
[4] iBasso DX170 – official product page (price): https://ibasso.com/product/dx170/ (accessed 2025-08-20)
[5] DX170 user manual (official PDF, specs): https://www.ibasso.com/uploadfiles/download/DX170usermanual.pdf (accessed 2025-08-20)
[6] FiiO – M23 firmware v1.0.1 notice: https://www.fiio.com/newsinfo/915627.html and forum note https://forum.fiio.com/note/showNoteContent.do?id=202404291801126137242 (accessed 2025-08-20)
[7] FiiO – Warranty Terms / local-agent policy: https://www.fiio.com/serviceinsurance (accessed 2025-08-20)

(2025.8.20)
