Overview

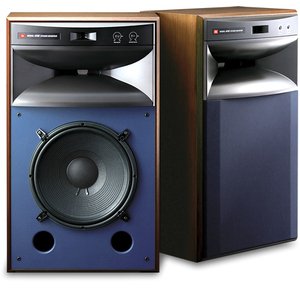

The JBL 4338 is a vintage 3-way passive studio monitor released in October 2004 for 4333 USD. This large floor-standing monitor features a 380mm pure pulp cone woofer, 75mm aluminum compression driver, and 25mm pure titanium compression driver. The speaker incorporates technology derived from JBL’s Project K2 S9800 development, featuring an inline unit layout and bi-radial horn design. Dimensions are 597×1080×400mm (with grille 425mm depth) and weight is approximately 63.5kg (140 lbs). The 4338 represents JBL’s professional monitor philosophy from the early 2000s era [1].

Scientific Validity

\[\Large \text{0.5}\]

The JBL 4338 lacks comprehensive third-party measurements, limiting evaluation to manufacturer specifications. The quoted frequency response of 35Hz–40kHz (-6dB), sensitivity of 93dB (2.83V/1m), nominal impedance of 8Ω, and allowable input of 300W (RMS) represent reasonable coverage but provide no precision data for critical parameters like THD, SNR, crosstalk, and dynamic range. As a passive design requiring external amplification, the system’s actual performance depends heavily on amplifier selection. Without verified measurements of distortion characteristics, phase response, or off-axis behavior, scientific validity assessment remains provisional and significantly below transparent levels achieved by modern active monitors with documented measurement data.

Technology Level

\[\Large \text{0.3}\]

The 4338 employs conventional passive crossover technology from 2004, crossing over at 750Hz and 9kHz. While the titanium tweeter and aluminum compression driver represent quality components, the overall design philosophy lacks modern innovations. The passive configuration eliminates benefits of active crossovers, DSP optimization, and integrated amplification that characterize current professional monitors. The bi-radial horn and inline driver arrangement show engineering consideration, but the technology level remains substantially behind contemporary active monitor designs featuring room correction, digital signal processing, and optimized amplifier-driver integration.

Cost-Performance

\[\Large \text{1.0}\]

Current used market pricing for the JBL 4338 (pair) is approximately 2,000–3,000 USD based on recent auction listings [2]. As an equal-or-better modern reference, a pair of Neumann KH 310 three-way active monitors is 4,998 USD new (2,499 USD each) from a major US retailer [3][4]. Equipped with tri-amplified design, active crossovers, and proven measured linearity, the KH 310 is judged equivalent-or-better in user-facing function and measured performance. Because no cheaper product with equivalent-or-better performance was identified, Cost-Performance is set to 1.0 (no cheaper equivalent exists).

Reliability & Support

\[\Large \text{0.4}\]

As a discontinued product from 2004, the JBL 4338 faces inherent support limitations. While JBL’s historical build quality was solid, the 20+ year age introduces potential component degradation concerns, particularly for crossover capacitors and driver surrounds. Official parts availability and service support are limited for this vintage model. The passive design reduces electronic failure points compared to active monitors, but finding qualified service technicians familiar with these specific models becomes increasingly difficult. Warranty coverage is non-existent for used purchases, placing full repair responsibility on the owner.

Rationality of Design Philosophy

\[\Large \text{0.3}\]

The passive monitor design philosophy underlying the 4338 has been superseded by active monitor advantages in professional applications. Modern studio monitoring demands precise frequency response, controlled directivity, and optimized amplifier-driver matching that active designs provide inherently. The passive approach requires external amplification selection, introduces additional cabling variables, and lacks room correction capabilities standard in contemporary professional monitors. While the 4338’s large format and horn-loaded design show traditional engineering approaches, the absence of DSP optimization, active crossovers, and integrated amplification represents an outdated methodology for professional monitoring applications.

Advice

The JBL 4338 primarily appeals to collectors and enthusiasts seeking vintage JBL studio monitor heritage rather than optimal professional monitoring performance. Modern alternatives like the Neumann KH310A deliver superior measured performance, active design advantages, and current manufacturer support at lower cost. For professional studio applications requiring accurate monitoring, contemporary active monitors provide measurably better solutions. The 4338’s large size, heavy weight, and requirement for high-quality external amplification further limit practical application. Purchase consideration should focus on historical interest rather than competitive professional monitoring capability.

References

1. JBL 4338 Owner’s Manual, JBL Professional, https://www.manualslib.com/manual/79165/Jbl-4338.html, accessed 2025-08-13, official technical specifications including frequency response 35Hz–40kHz (-6dB), sensitivity 93dB (2.83V/1m), impedance 8Ω, allowable input 300W (RMS), dimensions 597×1080×400mm (with grille 425mm), and weight approx. 63.5kg (140 lbs)

2. HifiShark Used Audio Equipment Database, JBL 4338 pricing data, https://www.hifishark.com/search?q=jbl+4338, accessed 2025-08-13, current market pricing analysis showing range of 2,000–3,000 USD for used pairs

3. B&H Photo Video, “Neumann KH310 Three-Way Active Studio Monitor Kit (Pair)”, https://www.bhphotovideo.com/c/product/1653147-REG/neumann_kh_310_three_way_active.html, accessed 2025-08-13, listing price 4,998 USD per pair

4. B&H Photo Video, “Neumann KH 310 Three-Way Active Studio Monitor (R/L)”, https://www.bhphotovideo.com/c/search?Ntt=Neumann%20KH%20310&N=0&InitialSearch=yes&sts=ma, accessed 2025-08-13, listing price 2,499 USD each

(2025.8.13)
