Overview

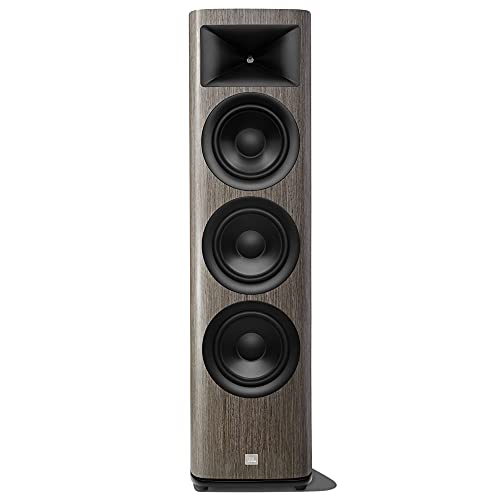

The JBL HDI-3800 is the flagship floor-standing speaker in the company’s HDI series. Designed and engineered in JBL’s world-famous acoustic engineering facility in Northridge, California, it carries on the legacy of JBL’s professional studio monitors. It is a large, 2.5-way floor-standing speaker featuring triple 8-inch (200mm) Advanced Aluminum Matrix cone woofers and a patented 2410H-2 1-inch (25mm) compression driver. Its High-Definition Imaging (HDI) waveguide technology provides refined acoustic characteristics that are distinct from traditional horn-loaded tweeters.

Scientific Validity

\[\Large \text{0.7}\]

The speaker has a specified frequency response of 37Hz–30kHz (-6dB) and a sensitivity of 92dB (2.83V/1m). Professional measurements confirm that JBL’s waveguide technology delivers “beautifully controlled directivity,” ensuring uniform sound dispersion over a wide frequency range. Total Harmonic Distortion (THD) is rated as “very low, both objectively and subjectively” in multiple reviews. The use of flux-stabilizing and copper shorting rings helps reduce distortion at high output levels. However, the -6dB tolerance for its frequency response is somewhat looser than the ±3dB or ±1dB standards targeted by higher-performance speakers. While its directivity control is excellent, its overall measured performance does not quite reach the top tier of the industry.

Technology Level

\[\Large \text{0.8}\]

The HDI waveguide technology is an extremely sophisticated design utilizing finite element analysis. It represents an advanced technical approach to controlling directivity over a wide bandwidth. The patented 2410H-2 compression driver features a lightweight, V-shaped ring diaphragm that reduces breakup modes and distortion. The woofers employ a symmetric field motor design with a 1.5-inch voice coil, flux-stabilizing rings, and copper shorting rings to reduce inductance, which achieves a flatter response and lowers odd-order harmonic distortion. The Advanced Aluminum Matrix cone technology is also designed to achieve an optimal balance of stiffness and low mass. These are proprietary, industry-leading designs and represent a group of effective technologies that other companies would covet.

Cost-Performance

\[\Large \text{0.4}\]

The current market price is 4400 USD per pair. As a point of comparison, the Triangle Borea BR10 (1833 USD), which also boasts a high sensitivity of 92dB, can be cited. The BR10 features a twin 8-inch woofer configuration and claims superior low-frequency extension (30Hz, ±3dB) in its specifications. Even considering the HDI-3800’s advanced waveguide technology and third woofer, a very high-performance option exists for less than half the price within the basic framework of a large, high-sensitivity floor-standing speaker. The cost-performance calculation is: 1833 USD ÷ 4400 USD ≈ 0.42, which rounds to 0.4. This results in a below-average price-to-performance ratio.

Reliability & Support

\[\Large \text{0.6}\]

As a JBL brand under Harman International, it has an established support system. Standard product warranties and repair services are provided through an organized network of authorized dealers. The robustness and reliability cultivated in professional equipment are applied to consumer products. No specific reliability issues have been reported in reviews, and the sturdy, 38kg cabinet design is suitable for long-term use. However, compared to innovative products from emerging manufacturers, the warranty and support are not exceptionally generous, placing it at an industry-average level for reliability and support.

Rationality of Design Philosophy

\[\Large \text{0.8}\]

The design is consistently guided by a scientific, measurement-based approach. The HDI waveguide is the result of a scientific design process using finite element analysis, aimed at achieving measurable improvements in acoustic performance. Applying technical knowledge from professional studio monitors to consumer products is a rational approach. The crossover design (800Hz, 1,800Hz) is also optimized based on measurement results. The use of flux-stabilizing and copper shorting rings is technically rational for its measurable effect on distortion reduction. The scientific approach of using waveguide technology to solve the problems of traditional horn tweeters is also commendable. There are no occult claims or unscientific marketing, reflecting a highly rational design philosophy aimed at achieving transparent sound quality based on measured performance.

Advice

The HDI-3800 is suitable for advanced users seeking the refined acoustic characteristics offered by its sophisticated waveguide technology. It is particularly valuable for those who dislike the harshness sometimes associated with conventional horn speakers and prioritize clean reproduction at high sound pressure levels. However, for cost-conscious buyers, it is advisable to consider alternatives like the Triangle Borea BR10, which offers similar basic performance at less than half the price. This speaker is intended for large listening rooms (30m² or more) and requires an amplifier with sufficient power (25-300W recommended). Users who value JBL’s professional technology, trust the brand, and plan for long-term ownership will likely find high satisfaction in its technical sophistication.

(2025.7.30)
