Overview

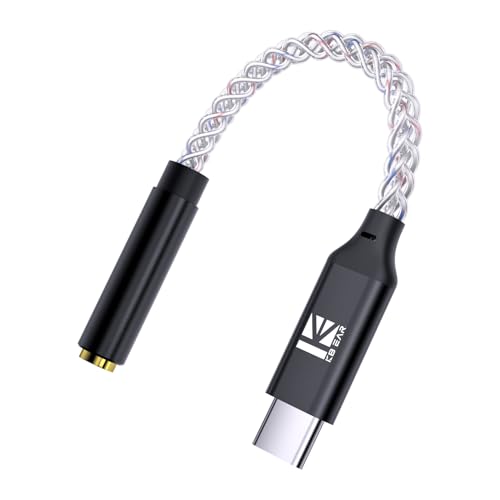

The KBEAR TC12pro is a USB Type-C to 3.5mm DAC adapter that employs Realtek’s ALC5686 chip to deliver high-resolution digital audio conversion. Supporting 32bit/384kHz audio formats, this compact dongle features an 8-strand silver-plated cable and targets users seeking improved audio quality from mobile devices and computers lacking dedicated headphone outputs. KBEAR, established in 2014 by Shenzhen Lingyin Technology Co., Ltd., positions this product within their affordable high-fidelity audio accessory lineup.

Scientific Validity

\[\Large \text{0.7}\]

The TC12pro demonstrates strong measured performance across key audio metrics. The ALC5686 chip delivers a signal-to-noise ratio of 124dB, substantially exceeding the 105dB transparent threshold. SINAD performance reaches -95dB, significantly surpassing the 80dB transparent level requirement. Dynamic range measures 113dB, well above the 105dB threshold, while crosstalk achieves -100dB, considerably better than the -70dB transparent standard [1]. Frequency response spans 20Hz to 80kHz, providing excellent coverage beyond audible requirements. Output power ranges from 30-65mW at 32Ω with adaptive impedance support from 16-600Ω. These specifications indicate performance substantially above problematic levels and approaching transparent audio reproduction. Conservative scoring reflects reliance on ALC5686 manufacturer datasheet specifications rather than independent third-party measurements.

Technology Level

\[\Large \text{0.5}\]

The TC12pro utilizes Realtek’s ALC5686, a contemporary USB audio solution from 2019 incorporating several advanced features. The Class G amplifier technology provides efficient power management with 80-85% efficiency, while multi-step impedance sensing across ten different ranges optimizes output for various headphone types [1]. Additional capabilities include 12-band equalization, automatic noise reduction, de-pop function, and smart USB unplug detection. KBEAR’s implementation features 8-strand silver-plated cable construction but represents standard chip deployment without proprietary modifications. While the ALC5686 incorporates desirable technologies like Class G amplification and impedance sensing, the straightforward implementation offers limited competitive differentiation, making it easily replicable by competitors using the same semiconductor solution.

Cost-Performance

\[\Large \text{0.5}\]

At 13.14 USD (converted from 1,600 BDT using December 2025 exchange rate), the TC12pro competes against numerous equivalent ALC5686-based dongles offering identical core functionality and specifications. Market analysis identifies final product pricing for ALC5686-equipped 32bit/384kHz DAC adapters with 3.5mm output starting from approximately 7 USD, providing equivalent 32bit/384kHz support, SNR of 124dB, THD+N of -95dB, and frequency response of 20Hz-80kHz [2]. These competing products utilize the same ALC5686 chip with equivalent user-facing functions including plug-and-play compatibility and adaptive impedance output from 16-600Ω. CP = 7 USD ÷ 13.14 USD = 0.5. The TC12pro’s premium reflects KBEAR’s branding and silver-plated cable construction while competing against lower-cost alternatives providing equivalent technical capabilities.

Reliability & Support

\[\Large \text{0.6}\]

KBEAR provides standard 1-year warranty coverage from invoice date, encompassing manufacturing defects including audio output failures while excluding physical damage and normal wear [3]. The simple USB dongle construction with minimal moving components offers inherent resistance to mechanical failure, supported by standard cable strain relief design. KBEAR maintains established customer service infrastructure through official channels and authorized dealers, supplemented by 7-day exchange policies for products in original condition. Founded in 2014, the company demonstrates sufficient operational history with consistent warranty policies across their product portfolio. The straightforward electronic design and established semiconductor foundation provide reasonable reliability expectations, though warranty terms remain industry standard without extended coverage or premium support features.

Rationality of Design Philosophy

\[\Large \text{0.8}\]

KBEAR’s approach demonstrates scientific rationality by utilizing proven ALC5686 chip technology with measurable performance benefits over basic dongles. The company’s “Keep Believing in Your Ears” philosophy emphasizes sound performance while maintaining affordable pricing, avoiding subjective audio claims in favor of technical specifications. Design costs contribute directly to measurable function and performance improvements through 32bit/384kHz support and comprehensive audio metrics. The TC12pro represents appropriate technology adoption using established digital processing and semiconductor solutions rather than pursuing proprietary alternatives that might compromise cost-effectiveness. KBEAR’s focus on measurement-focused audio improvement aligns with scientific approaches while actively optimizing costs through mass production and general-purpose component utilization, resulting in rational product development prioritizing objective performance over marketing mystique.

Advice

The TC12pro suits users requiring reliable USB-C to 3.5mm audio conversion with verified high-resolution digital audio support. The product is priced at 13.14 USD, achieving a CP score of 0.5 when compared to ALC5686-based alternatives (approximately 7 USD) providing equivalent core functionality. The premium over direct competitors reflects KBEAR’s silver-plated cable construction and brand quality assurance. Purchase justification centers on proven ALC5686 performance characteristics and competitive pricing within the premium dongle market segment. The product serves well for mobile and desktop audio applications, offering transparent audio reproduction capabilities suitable for both casual and professional use cases requiring verified high-resolution digital audio support.

References

[1] GAMDER HiFi DAC with ALC5686 Chip Audio Amplifier, Amazon, https://www.amazon.com/GAMDER-HiFi-Amplifier-Headphone-Converter-ALC5686/dp/B0BNPQFS23, accessed December 2, 2025, SNR >125dB, DNR >100dB, THD+N <0.00177%, 32bit/384KHz support

[2] Klaxib USB C to 3.5mm Headphone Amplifier ALC5686 Hifi Digital Audio Decoder AUX Audio Cable Adapter Converter, Amazon.co.jp, https://www.amazon.co.jp/dp/B0DP8KNLRB, accessed December 2, 2025, final product pricing of 7 USD for ALC5686-equipped 32bit/384kHz DAC adapter with 3.5mm output

[3] KB Ear TC12 Pro Portable Dongle DAC, Gears For Ears, https://gearsforears.com/products/kb-ear-tc12-pro-portable-dongle-dac, accessed December 2, 2025, 1,600 BDT pricing and warranty coverage

(2025.12.2)
