Overview

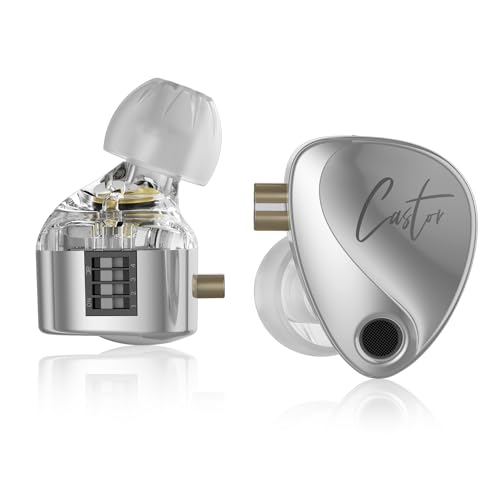

The KZ Castor is a tuning-adjustable dual-driver in-ear monitor featuring two stacked dynamic drivers with built-in professional filters. Priced at 15.99 USD, it offers 16 different audio profiles through 4 DIP switches, targeting Harman curve compliance in the budget IEM segment.

Scientific Validity

\[\Large \text{0.4}\]

Third-party measurements from Audio Science Review show close to Harman target frequency response compliance with switches 1&2 activated, with approximately ±3dB deviation placing FR at standard level for earphones [1]. However, THD distortion graphs reveal a pronounced rise in the lower treble crossover region (approximately 1-3kHz), where the reviewer identifies audible “sharpness” and “grungy” quality attributable to harmonic distortion at the dual-driver transition frequency. This distortion in the most sensitive frequency range of human hearing indicates THD reaching or exceeding the 0.5% problematic threshold for earphones. FR at standard level but THD at problematic level in a critical band yields a below-average assessment.

Technology Level

\[\Large \text{0.6}\]

The Castor employs in-house designed dual dynamic driver technology with electronic crossover for frequency separation between stacked 8mm and 10mm drivers, paired with a 4-stage DIP switch tuning system enabling 16 profiles [2]. KZ’s accumulated development expertise since 2008 demonstrates solid know-how. However, these are established, common IEM technologies with low competitive advantage duration, as similar approaches can be readily replicated by competitors without significant R&D investment.

Cost-Performance

\[\Large \text{1.0}\]

This site evaluates based solely on functionality and measured performance values, without considering driver types or configurations. Current market price: 15.99 USD. The cheapest IEM with equivalent-or-better measured performance and third-party verification identified is the Truthear GATE at approximately 20 USD [5]. Equipped with 3.5mm connectivity, the Truthear GATE demonstrates substantially lower THD (described as “basically distortionless” up to 104dB SPL [5]) and comparable or better Harman target frequency response compliance, confirming equivalent-or-better measured performance. Since the cheapest equivalent-or-better product (approximately 20 USD) costs more than the review target (15.99 USD), no cheaper alternative with confirmed equivalent-or-better measured performance exists. CP = 1.0.

Reliability & Support

\[\Large \text{0.3}\]

KZ provides global manufacturer support through multiple email channels with 9:00-18:00 CST business hours [3]. Replacement parts maintain good availability through official and authorized distributors. However, documented quality control concerns include potential channel imbalance and weak solder joints across KZ products. Warranty period remains undocumented on official pages, compounding reliability concerns with two significant negatives against the baseline.

Rationality of Design Philosophy

\[\Large \text{0.7}\]

KZ demonstrates rational measurement-focused design philosophy, explicitly targeting Harman curve compliance as a primary design goal [4]. The implementation of 4-stage tuning switches and electronic crossover technology prioritizes functional performance over aesthetics. Cost allocation emphasizes achieving performance enhancement at minimal price, with costs directly contributing to function and measured performance. While some marketing assertions lack verification, the scientific approach and cost-effective design align with modern measurement-based audio engineering principles.

Advice

The KZ Castor suits users seeking customizable frequency response in the budget IEM category. The 16 tuning profiles via DIP switches provide extensive personalization options, though low sensitivity requires adequate amplification for optimal performance. Notable distortion in the lower treble crossover region and quality control variability should be considered. Best suited for users prioritizing tuning flexibility and budget-friendly pricing over distortion performance and premium build quality.

References

[1] Audio Science Review - KZ Castor Harman Target IEM Review - https://www.audiosciencereview.com/forum/index.php?threads/kz-castor-harman-target-iem-review.54262/ - accessed 2026-02-11 - GRAS 45CA-10 coupler testing [2] KZ Audio - KZ Castor Official Product Page - https://kz-audio.com/kz-castor.html - accessed 2026-02-11 [3] KZ Headphones - Returns and Warranty - https://www.kzheadphones.com/pages/returns-and-warranty - accessed 2026-02-11 [4] Linsoul Audio - KZ Castor Tuning Adjustable Dual-Driver IEM - https://www.linsoul.com/products/kz-castor - accessed 2026-02-11 [5] Audio Science Review - Truthear GATE IEM Review - https://www.audiosciencereview.com/forum/index.php?threads/truthear-gate-17-iem-review.61784/ - accessed 2026-02-11

(2026.2.11)
