Overview

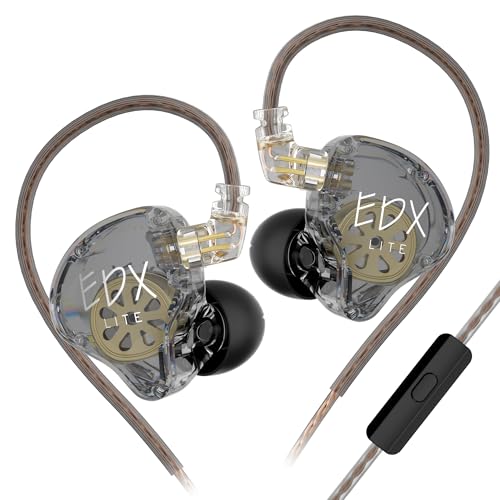

The KZ EDX Lite is one model in the ultra-budget IEM series developed by China’s Knowledge Zenith. It features a 10mm dynamic driver with basic specifications of 16Ω impedance and 112dB/mW sensitivity in a simple canal-type earphone configuration. With a market price of approximately 10 USD, it targets audio beginners and budget-conscious users with an extremely affordable price point. Positioned as a product that thoroughly reduces manufacturing costs through lightweight plastic housing and fixed cable design, it serves as the entry-level line in the KZ brand portfolio.

Scientific Validity

\[\Large \text{0.4}\]

Third‑party frequency response graphs show a noticeable peak in the 3–5 kHz region, indicating room for improvement in original sound fidelity. Comprehensive third‑party measurements such as THD/IMD disclosure were unconfirmed at the time of writing. Based on confirmable frequency‑response irregularities, we rate scientific validity at 0.4.

Technology Level

\[\Large \text{0.4}\]

Technologically, this represents a combination of off-the-shelf design elements. The 10mm dynamic driver uses a standard size widely adopted in the industry, showing no particular uniqueness. The plastic housing design also employs general methods, with cost reduction prioritized over acoustic optimization. The fixed cable specification eliminates possibilities for repair during cable failure or sound quality adjustment through cable replacement, sacrificing maintainability and expandability. No notable technical innovations are confirmed in the internal structure, remaining at a simple design that achieves minimum functionality. This represents below-average technology levels in the industry, with limitations due to cost constraints prominently displayed.

Cost-Performance

\[\Large \text{0.7}\]

To evaluate the cost-performance of the KZ EDX Lite (market price approximately 10 USD), we compare it with competing products having equivalent or superior functionality and measured performance. The most affordable alternative is the “Tanchjim Zero” (market price approximately 7 USD). The Tanchjim Zero achieves THD<0.5% and a flatter frequency response, providing superior measured performance at a lower price. Based on the cost-performance calculation, “7 USD ÷ 10 USD = 0.70,” which rounds to 0.7. Therefore, better alternatives exist in terms of measured performance versus price ratio. That said, the absolute affordability around 10 USD presents a low psychological barrier for first-time purchasers.

Reliability & Support

\[\Large \text{0.4}\]

KZ maintains a market presence as an emerging audio brand, with warranty coverage typically handled via authorized retailers. Individual repairs are uncommon for ultra‑budget products. The fixed‑cable design means cable failure often determines end of life. Public data on defect rates were unconfirmed at the time of writing, and RMA handling depends on each retailer’s process.

Rationality of Design Philosophy

\[\Large \text{0.3}\]

The rationality of design philosophy is at a low level. Cost reduction to achieve the 10 USD price point takes highest priority, resulting in design that emphasizes price competitiveness over scientific audio improvement. Notable design decisions distant from scientific approaches include elimination of expandability through fixed cable specification, acoustic compromises due to plastic housing, and non-disclosure of measurement data. Measurement issues such as the 3-5kHz peak are also considered results of insufficient adjustment due to cost constraints. While the market strategy of price disruption is understandable, no rational technical investment toward achieving transparent-level audio quality is observed. Rather, non-rational design philosophy that prioritizes manufacturing costs over acoustic performance is dominant.

Advice

While the KZ EDX Lite can be positioned as an entry-level device for experiencing IEMs at the ultra-low price of 10 USD, careful consideration is necessary before purchase. Since the Tanchjim Zero (approximately 7 USD) exists in the same price range with clearly superior measured performance, the latter is strongly recommended for those seeking pure audio quality. The fixed cable specification should also be considered, as cable failure requires complete product replacement. This becomes a viable option only for those with interest in the KZ brand or the specific purpose of trying IEMs at the lowest possible cost, rather than audio quality. For long-term use, it would be wise to secure additional budget and choose more reliable products. For beginners, starting with competing products that offer superior measured performance in the same price range is recommended.

(2025.8.8)
