Overview

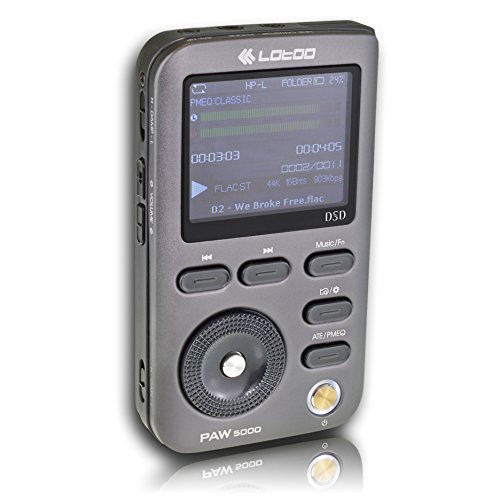

The Lotoo PAW5000 is a professional digital audio player from Beijing-based Lotoo, established in 1999 as a manufacturer of professional audio recording systems. Building on their expertise in broadcast and studio equipment, including partnerships with Swiss Nagra, Lotoo entered the consumer audiophile market with the PAW series. The PAW5000 features an ADI Blackfin 514 DSP processor, proprietary ATE (Acoustic Timbre Embellisher) algorithm, and format support including DSD and PCM up to 96kHz. Originally retailed at 200 USD in the US market [1], it targeted audiophiles seeking professional-grade portable performance with advanced DSP processing capabilities.

Scientific Validity

\[\Large \text{0.7}\]

Manufacturer specifications show frequency response ±0.5dB (20Hz-20kHz), THD <0.007% (20-20kHz), and SNR 94dB [1][2]. Independent third-party measurements from ZETTAI AUDIO confirm frequency response ±0.5dB (20Hz-20kHz), THD <0.002% at 1kHz, SNR >100dB, and output power 75mW at 16Ω [3]. HiFi Knights provides manufacturer specifications including THD <0.02% and equivalent frequency response [2]. Independent measurements show performance exceeding transparent criteria for frequency response and distortion, with SNR reaching 100dB+ level approaching excellent standards for portable audio applications.

Technology Level

\[\Large \text{0.7}\]

The PAW5000 incorporates sophisticated proprietary technology centered on the ADI Blackfin 514 DSP operating at 400MHz with dual 16-bit MACs and 116KB on-chip memory. Lotoo’s in-house ATE (Acoustic Timbre Embellisher) algorithm represents proprietary patent technology implementing studio-quality filters through DSP processing. The custom LTOS operating system, developed over 20+ years for professional broadcast applications, demonstrates significant technical expertise accumulation. Design ownership remains fully in-house with Lotoo’s professional audio heritage since 1999. However, DSP-based portable audio processing has become commonplace, reducing competitive advantage duration. Technology integration appropriately combines digital processing and custom software, though the Blackfin 514 represents mature rather than cutting-edge processing by current standards.

Cost-Performance

\[\Large \text{0.9}\]

The PAW5000 at 200 USD faces direct competition from the Hidizs AP80 PRO-X at 199 USD, which provides equivalent-or-better functionality and measured performance. Equipped with 384kHz PCM support, native DSD64/128/256 playback, balanced outputs, and dedicated DAP functionality, the AP80 PRO-X achieves 120dB SNR (balanced output) and 0.0015% THD+N compared to the PAW5000’s >100dB SNR and <0.002% THD performance [5]. The AP80 PRO-X’s superior SNR (120dB vs 100dB) and lower distortion (0.0015% vs 0.002% THD equivalent) demonstrate equivalent-or-better measured performance, while higher sample rate support (384kHz vs 96kHz) provides equivalent-or-better functionality. CP = 199 USD ÷ 200 USD = 0.995, rounded to 0.9.

Reliability & Support

\[\Large \text{0.5}\]

Construction quality features metal face/backplate with Corning Gorilla Glass screen providing robust physical design. However, warranty coverage extends only 1 year from invoice date, below industry average 2-year standards. User reports indicate several reliability concerns including charging issues where devices refuse charging beyond 28%, battery life problems with less than 5-hour operation despite 1700mAh capacity, and firmware stability issues causing database update loops. Customer service responsiveness receives mixed reports, with some users noting poor email response from service@lotoo.cn. Global support infrastructure operates through authorized dealers including MusicTeck (US) and HiFiGo, though some customers report Lotoo lacks focus on overseas markets. The company’s professional audio heritage since 1999 provides positive historical foundation, but current reliability data suggests room for improvement.

Rationality of Design Philosophy

\[\Large \text{0.8}\]

Lotoo demonstrates highly rational design philosophy prioritizing “measured transparency, low noise, and operational efficiency over feature sprawl.” The measurement-driven engineering approach reflects professional audio heritage dating to 1999 broadcast system development. Purpose-built design philosophy creates dedicated audio players optimized specifically for transparent reproduction rather than general-purpose device compromises. LTOS operating system represents 20+ years continuous development for professional broadcast demands, demonstrating scientific commitment to audio-specific optimization. Proprietary DSP algorithm development (ATE) and custom OS integration show innovative approach advancing beyond standard chip implementations. The focus on technical performance metrics over broad feature sets aligns with rational cost allocation toward audible improvements. Professional audio roots through Nagra partnership validates measurement-first approach, contributing to healthy audio industry development through science-based rather than subjective marketing claims.

Advice

The PAW5000 suits users seeking professional-grade portable audio with proprietary DSP processing and proven broadcast industry heritage. Its transparent-level performance and rational engineering approach appeal to measurement-focused audiophiles appreciating technical sophistication over feature quantity. With limited availability from select retailers including HiFiGo, Penon Audio, and Shenzhenaudio, potential buyers should verify current stock before purchase. The device works best for users specifically prioritizing Lotoo’s ATE algorithm and LTOS optimization characteristics. However, consider reliability concerns including reported charging and battery life issues before purchase. For users requiring modern high-resolution playback beyond 96kHz, superior measured performance, or current warranty coverage, the Hidizs AP80 PRO-X provides equivalent functionality with better specifications at similar pricing, representing a more logical choice for most users.

References

[1] AudiophileON Review - Lotoo PAW 5000, https://www.audiophileon.com/news/lotoo-paw-5000-review, accessed 2025-11-24 (manufacturer specifications: frequency response ±0.5dB (20Hz-20kHz), THD <0.007% (20-20kHz), SNR 94dB, PCM 96kHz support, pricing 200 USD)

[2] HiFi Knights Review - Lotoo PAW 5000, https://hifiknights.com/reviews/miscleanous/lotoo-paw-5000/, accessed 2025-11-24 (manufacturer specifications: THD <0.02%, frequency range 20-20kHz, power output 75mW @ 16Ω, price €349)

[3] ZETTAI AUDIO Blog - LOTOO PAW5000 Review, http://zettaiaudio.blogspot.com/2015/12/lotoo-paw-5000.html, accessed 2025-11-24 (independent third-party measurements: frequency response ±0.5dB (20Hz-20kHz), THD <0.002% @ 1kHz test signal, SNR >100dB A-weighted, max output 75mW @ 16Ω load, balanced/single-ended outputs tested)

[4] Reference Audio Analyzer - Measurement Report Lotoo PAW 5000 MK2, https://reference-audio-analyzer.pro/en/report//dac/lotoo-paw-5000-mk2.php, accessed 2025-11-24 (third-party measurements for MKII version only - not original PAW5000 model reviewed here)

[5] Hidizs AP80 PRO-X Specifications, https://www.hidizs.net/pages/ap80pro-x-specifications, accessed 2025-11-24 (manufacturer specifications: 120dB SNR (balanced output), 0.0015% THD+N, 384kHz PCM support, DSD64/128/256, pricing 199 USD)

(2026.1.2)
