Overview

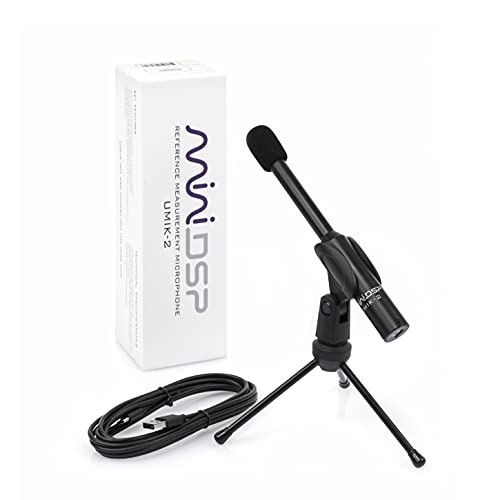

The MiniDSP UMIK-2 is a measurement microphone that has been significantly improved from the previous generation UMIK-1. It features a 1/2-inch (12.7mm) large capsule and 32-bit ADC, supporting sampling rates up to 192kHz and providing individual calibration files, designed to enhance measurement accuracy. With USB-C connectivity and compatibility with REW and Dirac Live, it has gained recognition in the acoustic measurement field.

Scientific Validity

\[\Large \text{0.6}\]

The UMIK-2 claims a calibrated frequency response of 10Hz-50kHz and a maximum sound pressure level of 125dB with 120dB SNR. The 1/2-inch capsule design provides improved noise floor and distortion levels over smaller capsules. Actual measurements show self-distortion issues above 90dB SPL, which limits high-level measurement accuracy. The individual calibration files help approach measurement transparency standards, though professional equipment still offers superior precision. It functions adequately for entry-level measurement applications but remains insufficient for high-precision requirements.

Technology Level

\[\Large \text{0.7}\]

The design shows significant improvements from the previous generation, incorporating a 1/2-inch (12.7mm) capsule, 32-bit ADC, and 192kHz sampling support. The USB-C connection enables driverless operation, and the individual calibration file generation system maintains appropriate technical standards for measurement equipment. However, fundamental constraints such as capsule distortion issues prevent it from reaching industry-leading levels. It can be evaluated as entry to mid-class technology level.

Cost-Performance

\[\Large \text{1.0}\]

The UMIK-2 is priced at 195 USD (direct sales from MiniDSP) with retail pricing at 249 USD (Amazon). It offers USB connectivity with driverless operation, individual calibration files, and 192kHz sampling support. Among USB measurement microphones with equivalent or superior functionality, only more expensive products exist. While the Behringer ECM8000 (29 USD) is cheaper, it requires XLR connection with phantom power and lacks calibration files, making it functionally inferior for users seeking USB connectivity and calibration. For the same USB connectivity and calibration file functionality, the UMIK-2 achieves the lowest market price available, delivering excellent cost-performance.

Reliability & Support

\[\Large \text{0.5}\]

MiniDSP provides a 1-year product warranty and firmware update functionality through Device Console. Support quality receives mixed reviews, with limited support for out-of-warranty products. Given the nature of measurement microphones, mechanical failure risk is relatively low, but long-term reliability data is insufficient. This represents industry-standard reliability and support levels.

Rationality of Design Philosophy

\[\Large \text{0.5}\]

The design philosophy emphasizing scientific approaches in acoustic measurement and pursuing accuracy improvements through individual calibration is rational. The large capsule for performance improvement and USB-C connectivity for enhanced convenience demonstrate appropriate direction for measurement equipment. USB connectivity with simple setup and driverless operation provides a rational approach to lowering measurement barriers for a wide range of users. This represents a rational design philosophy considering the balance between convenience and accuracy for measurement applications.

Advice

The UMIK-2 is an excellent choice as a USB measurement microphone. For beginners, it offers easy setup and enables high-precision measurements through individual calibration files. While the XLR-connected Behringer ECM8000 (29 USD) is cheaper, it requires an audio interface capable of phantom power supply, making the total cost comparable. For higher precision requirements, professional equipment like the Earthworks M23 (499 USD) can be considered, but the UMIK-2’s precision is sufficient for most users. Considering USB connectivity convenience and calibration file provision, it represents a rational investment for entry to mid-level acoustic measurement applications.

(2025.7.18)
