Overview

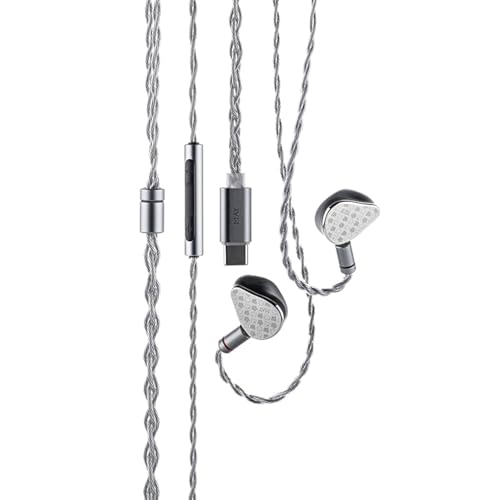

The Moondrop May represents a significant advancement in affordable IEM technology, combining hybrid driver architecture with sophisticated digital signal processing. This USD 65 product features a 10mm sapphire-plated dynamic driver paired with a 6mm annular planar magnetic driver, integrated with a custom USB-C DAC/DSP supporting up to 32Bit/384kHz PCM decoding. The May includes interactive DSP functionality through the MOONDROP Link 2.0 app, offering five preset tunings and customizable parametric EQ capabilities with device-stored settings.

Scientific Validity

\[\Large \text{0.7}\]

Third-party measurements from Audio Science Review (February 2024) demonstrate strong performance across key metrics [1]. Frequency response achieves within 3dB deviation from target curve until 12kHz with standard tuning applied, meeting transparent level requirements. Manufacturer specifications include THD ≤0.05% for IEM transducers [2], while third-party reported DSP/DAC THD of 0.00078% [3] substantially surpasses the 0.01% transparent threshold, though this specific measurement requires independent verification. Manufacturer-specified dynamic range of 120dB [2] exceeds the 105dB transparent level. Third-party confirmed effective frequency response spans 20Hz-20kHz within IEC60318-4 3dB limits [1], demonstrating adequate bandwidth performance. Most measured parameters achieve transparent performance levels, though evaluation relies partially on manufacturer specifications pending additional independent measurements.

Technology Level

\[\Large \text{1.0}\]

The May demonstrates exceptional technical sophistication through its hybrid driver implementation combining 10mm sapphire-plated dynamic drivers with 6mm annular planar magnetic drivers via powered two-way crossover with acoustic FEA optimization. Custom DSP chip supporting 32Bit/384kHz PCM decoding represents cutting-edge digital audio processing typically found in much higher-priced products. Medical-grade resin shell construction through collaboration with HeyGears Technology demonstrates advanced manufacturing partnerships. Interactive DSP functionality with app-based tuning control integrates modern software capabilities with hardware optimization. The combination of planar magnetic drivers, custom digital processing, and software-controlled acoustic optimization represents significant technical advancement and industry-leading integration for this price category.

Cost-Performance

\[\Large \text{0.4}\]

Market analysis identifies the Moondrop Chu II DSP (USD 24) [4] as offering equivalent DSP functionality with app-controlled tuning capabilities. Equipped with integrated USB-C DAC/DSP, MOONDROP Link 2.0 app compatibility, parametric EQ with five bands, three preset tunings, and similar digital processing features. While utilizing single dynamic driver versus May’s hybrid configuration, the Chu II DSP provides equivalent user-facing DSP functions including app-based tuning control, parametric EQ customization, and preset configurations with comparable measured performance in transparency range. CP = 24 ÷ 65 = 0.4.

Reliability & Support

\[\Large \text{0.5}\]

Moondrop provides 1-year warranty coverage for the IEM with 3-month cable warranty. The company maintains professional quality control infrastructure including Audio Precision APx555 and B&K Type4128c HATS measurement equipment with dust-free production facilities. However, the hybrid digital/analog architecture introduces additional complexity compared to passive IEMs, with USB-C cable dependency creating potential failure points. Support infrastructure operates through global authorized retailer networks with regional warranty handling varying by location. Moondrop’s established track record in IEM manufacturing provides confidence, though the integration of digital components represents increased complexity relative to traditional passive designs.

Rationality of Design Philosophy

\[\Large \text{1.0}\]

Moondrop demonstrates highly rational design philosophy through scientific measurement-based tuning utilizing VDSF target response derived from B&K HATS measurements and diffuse field principles. Cost-effectiveness is achieved through digital processing and modern manufacturing techniques that directly contribute to measurable performance improvements. Advanced functional integration combining DSP optimization, hybrid driver management, and software control represents meaningful technological advancement over traditional passive approaches. The adoption of cutting-edge digital processing, app-based control systems, and sophisticated driver crossover management demonstrates progressive engineering focused on scientifically measurable improvements. Performance progression over traditional IEMs is clearly demonstrated through enhanced functionality, superior measured specifications, and cost-effective integration of advanced technologies.

Advice

The Moondrop May offers advanced IEM technology with scientific tuning and hybrid driver implementation. Suitable for listeners prioritizing measured performance and app-controlled customization capabilities. The integrated USB-C DAC/DSP eliminates need for separate amplification while providing enhanced functionality compared to traditional passive designs. Critical limitation: Android device requirement for app setup and tuning access completely excludes iOS users from DSP functionality. Investigation reveals default flat tuning loads out-of-box rather than advertised Standard Tuning, requiring Android app access for proper configuration. While sophisticated digital processing and hybrid driver architecture provide technical advancement, the DSP features central to product value proposition remain inaccessible to significant user base without Android devices.

References

[1] Audio Science Review. “Moondrop May USB-C Headphones Review.” February 2024. https://www.audiosciencereview.com/forum/index.php?threads/moondrop-may-usb-c-headphones-review.52396/ (IEC60318-4 711 ear simulator, medium ear tip, standard tuning)

[2] Moondrop Official. “MAY DSP In-Ear Monitor.” https://moondroplab.com/en/products/may (manufacturer specifications)

[3] AudioReviews.org. “Moondrop May IEM + Dongle Review.” https://www.audioreviews.org/moondrop-may-iem-dongle-review-dw/ (DSP THD measurements)

[4] HiFiGo. “Moondrop Chu II DSP: Endless Possibilities With Digital Signal Processing Technology.” https://hifigo.com/blogs/news/moondrop-chu-ii-dsp-endless-possibilities-with-digital-signal-processing-technology (comparison product specifications)

(2025.9.16)
