Overview

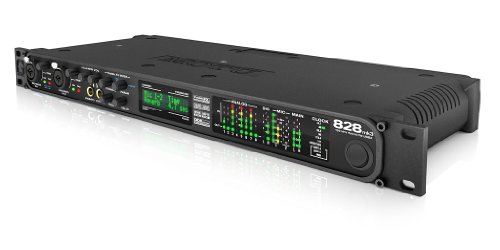

The MOTU 828mk3 Hybrid is a discontinued professional audio interface that provided 28 inputs and 30 outputs with hybrid FireWire/USB 2.0 connectivity. Released in the early 2010s, it featured 24-bit/192kHz conversion, CueMix FX real-time DSP mixing, and comprehensive digital I/O including 16-channel ADAT and stereo S/PDIF. The interface was designed for professional recording applications requiring extensive I/O capabilities and low-latency performance. MOTU, founded in 1980, has been a recognized name in professional audio interfaces and digital audio workstations.

Scientific Validity

\[\Large \text{0.5}\]

The 828mk3 Hybrid lacks publicly available measurement data for critical audio performance metrics including frequency response, THD+N, dynamic range, and S/N ratio. MOTU’s own forum discussions reveal that the company historically did not publish detailed technical specifications even in their manuals [1]. The only available performance data is a user-reported jitter measurement of less than 250 picoseconds peak-to-peak, which would be better than transparent level if verified. However, without credible third-party measurements and lacking manufacturer specifications for audio-quality-relevant information, this product cannot be properly evaluated for scientific validity. The interface features multiple AKM DACs and Cirrus Logic ADCs representing contemporary technology, but performance verification remains unavailable.

Technology Level

\[\Large \text{0.3}\]

The 828mk3 incorporated appropriate contemporary technology for its era, featuring FPGA-based processing with a Xilinx Spartan-3E XC3S500E and dedicated Texas Instruments TMS320C6722 DSP for CueMix FX effects [2]. The implementation includes multiple high-quality converter chips: AKM AK4396, AK4382A, and AK4358 DACs, plus Cirrus Logic CS5368 and CS5364 ADCs. The 32-bit floating point mixing engine and hybrid FireWire/USB 2.0 connectivity provided flexibility for its time. However, from a 2025 perspective, FireWire connectivity is obsolete and USB 2.0 is outdated compared to current USB 3.0/USB-C standards. The technology, while representing solid engineering at the time, is now significantly behind current standards and lacks relevance for modern applications.

Cost-Performance

\[\Large \text{1.0}\]

At current used market prices of approximately 300 USD, the MOTU 828mk3 Hybrid provides a comprehensive 28-input/30-output I/O configuration for which no cheaper alternatives with equivalent or superior functionality exist. Audio interfaces with 28+ inputs combining analog and digital capabilities are limited to expensive professional equipment such as the RME Digiface USB (32 inputs, 629 USD), but these are digital-only and lack functional equivalence to the MOTU’s 10 analog inputs (2 mic preamps + 8 line inputs) [3]. While products with fewer inputs (such as 18-input interfaces) are available, policy requires comparison with equivalent-or-better products only. Therefore, the MOTU 828mk3 Hybrid represents the world’s most affordable 28-input audio interface in its price range, earning CP = 1.0.

Reliability & Support

\[\Large \text{0.4}\]

MOTU provides a standard 24-month warranty with global support infrastructure, but the discontinued status significantly impacts long-term reliability support [4]. The company offers no paid repair service after warranty expiration, stating “there is no paid repair policy” for products beyond the 2-year warranty period. MOTU does not provide service manuals or schematics, making third-party repairs difficult or impossible. While the interface features robust metal construction with professional-grade components including FPGA, DSP, and high-quality converters that have proven longevity in professional environments, the lack of post-warranty repair options and discontinued status limit long-term serviceability.

Rationality of Design Philosophy

\[\Large \text{0.8}\]

MOTU demonstrates strong rationality in design philosophy through their engineering-driven approach emphasizing technical excellence and measurable performance [5]. The company’s focus on “sample-accurate” precision and “sonic integrity” reflects a scientific approach to audio engineering. The FPGA and DSP implementation provides genuine functional benefits for low-latency professional applications, while the comprehensive I/O configuration addresses real user needs. However, the design philosophy shows some limitations in cost optimization - the premium pricing structure does not always translate to proportional performance advantages over more cost-effective alternatives. While the 828mk3 represents solid engineering for its era with rational technical choices rather than subjective audio mythology, the balance between technological sophistication and cost-effectiveness could be improved.

Advice

The MOTU 828mk3 Hybrid provides comprehensive I/O functionality but faces significant challenges in the current market. While offering 28 inputs, 30 outputs, real-time DSP mixing, and ADAT expansion, potential buyers must weigh the discontinued status, lack of post-warranty repair support, and obsolete FireWire connectivity against modern alternatives. At current used market prices of approximately 300 USD, the Behringer UMC1820 offers comparable functionality with current USB connectivity at 130 USD. For new installations, modern alternatives provide better value through current connectivity standards, ongoing manufacturer support, and significantly lower acquisition costs.

References

[1] MOTUnation.com Forum, “What are the ACTUAL specs for the 828 MKIII?”, https://www.motunation.com/forum/viewtopic.php?f=2&t=30296, accessed 2025-09-20

[2] Khron’s Cave Blog, “#72 MOTU 828 mk3 teardown”, https://khronscave.blogspot.com/2021/07/72-motu-828-mk3-teardown.html, 2021-07

[3] Sweetwater, “RME Digiface USB Portable Digital Audio Interface”, https://www.sweetwater.com/store/detail/DigifaceUSB–rme-digiface-usb-portable-digital-audio-interface, accessed 2025-09-20

[4] MOTU Technical Support, “Limited Warranty on Hardware”, https://motu.com/en-us/techsupport/hardware-warranty/, accessed 2025-09-20

[5] MOTU Company, “About MOTU”, https://motu.com/en-us/company/about/, accessed 2025-09-20

(2025.9.20)
