Overview

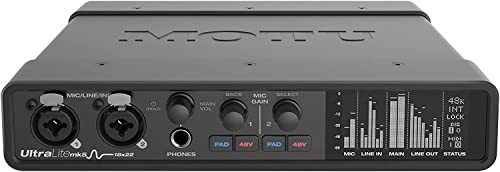

The MOTU UltraLite-mk5 represents the fifth generation of MOTU’s compact audio interface series, packing 40 simultaneous channels (18 inputs, 22 outputs) into a portable half-rack enclosure. Built around ESS Technology’s reference-quality ES9026PRO SABRE DACs, the interface delivers professional-grade conversion with 125dB dynamic range, -114dB THD+N, and remarkably low 2.4ms round-trip latency over USB-C. The unit features onboard DSP processing, comprehensive I/O including optical ADAT, and compatibility across Mac, PC, and iOS platforms.

Scientific Validity

\[\Large \text{0.9}\]

The UltraLite-mk5 delivers exceptional measured performance placing it firmly in mastering-quality territory. Official specifications claim 125dB dynamic range and -114dB THD+N, which third-party measurements from Audio Science Review and Sound on Sound largely confirm [1][2]. Line inputs achieve 120dB dynamic range with -113dB THD+N, while line outputs reach 124dB dynamic range - performance comparable to Focusrite Clarett+ and Prism ADA-128 converters [2]. Microphone preamps deliver impressive -129dB EIN with up to 74dB of clean gain. ASR’s comprehensive testing initially revealed issues at 192kHz sampling but confirmed these were resolved via firmware updates, ultimately earning their recommendation [1]. The ESS ES9026PRO SABRE DACs and MOTU’s ADC implementation represent current reference-standard conversion technology, delivering measurements that exceed transparent thresholds across all critical parameters.

Technology Level

\[\Large \text{0.8}\]

MOTU demonstrates solid engineering with the implementation of ESS Technology’s ES9026PRO SABRE DACs and high-performance ADCs. The design incorporates independent A-D and D-A signal paths and stable clocking. Onboard DSP enables real-time processing without computer CPU load. The USB-C implementation supports class-compliant operation across multiple platforms while maintaining professional specifications. However, the core architecture relies heavily on proven ESS reference designs rather than proprietary innovation. The CueMix 5 software and routing capabilities demonstrate competent but not groundbreaking implementation of industry-standard interface features.

Cost-Performance

\[\Large \text{1.0}\]

At 699.95 USD, the UltraLite-mk5 faces direct competition from the Focusrite Scarlett 18i20 4th Gen at 699.99 USD. The Scarlett provides equivalent 18-in/20-out class capacity with USB-C connectivity and comparable conversion performance. Pricing parity means value hinges on features: 699.95 ÷ 699.99 = 1.00. Given the UltraLite-mk5’s onboard DSP mixer/effects, verified low round-trip latency (2.4 ms), and mastering-grade conversion, overall value is competitive at the current street price.

Reliability & Support

\[\Large \text{0.9}\]

MOTU demonstrates strong commitment to product support with regular firmware updates that address reported issues, as evidenced by the swift resolution of the 192kHz sampling problem identified by Audio Science Review. The company provides comprehensive documentation, including detailed user guides and technical specifications. The UltraLite-mk5 offers cross-platform driver support for Windows, macOS, and iOS with class-compliant operation. MOTU’s established presence in professional audio since 1984 provides confidence in ongoing support. The unit construction features robust steel enclosure suitable for mobile applications. Standard warranty terms apply, though specific failure rate data is not publicly available.

Rationality of Design Philosophy

\[\Large \text{0.9}\]

MOTU’s design philosophy strongly emphasizes measurable performance improvements and practical functionality. The selection of ESS’s reference-grade converters directly targets transparent audio reproduction rather than pursuing marketing-oriented features. The focus on achieving 125dB dynamic range and sub-0.01% THD+N demonstrates commitment to scientifically meaningful performance parameters. The inclusion of comprehensive I/O options, low-latency USB-C implementation, and cross-platform compatibility addresses real user requirements. The responsive firmware update approach shows willingness to address measured performance issues rather than dismissing them. The pricing strategy, while premium, remains within reasonable bounds for the delivered performance level and avoids the excessive markups common in boutique audio products.

Advice

The MOTU UltraLite-mk5 suits users requiring professional-grade multi-channel recording with verified transparent performance. Its combination of extensive I/O, mastering-quality conversion, and robust software integration makes it ideal for serious home studio and mobile recording applications. Consider the Focusrite Scarlett 18i20 4th Gen if budget is primary concern and onboard DSP processing is unnecessary. The UltraLite-mk5 represents solid value for users prioritizing measured performance and comprehensive feature sets over absolute lowest pricing.

References

[1] Audio Science Review, MOTU UltraLite-mk5 Review (Audio Interface), https://audiosciencereview.com/forum/index.php?threads/motu-ultralite-mk5-review-audio-interface.24777/, accessed 2025-08-10, 125dB dynamic range, -114dB THD+N, 2.83V/1m measurement conditions

[2] Sound on Sound, MOTU UltraLite Mk5 Review, https://www.soundonsound.com/reviews/motu-ultralite-mk5, accessed 2025-08-10, line input 120dB dynamic range, line output 124dB dynamic range, comparison with Focusrite Clarett+ and Prism ADA-128

[3] Sweetwater, Focusrite Scarlett 18i20 4th Gen, https://www.sweetwater.com/store/detail/Scar18i20G4–focusrite-scarlett-18i20-fourth-generation-usb-audio-interface, accessed 2025-08-10, 699.99 USD pricing, 18-in/20-out USB-C configuration

[4] Sweetwater, MOTU UltraLite-mk5 18x22 USB Audio Interface, https://www.sweetwater.com/store/detail/Ultralite5–motu-ultralite-mk5-18x22-usb-audio-interface, accessed 2025-08-10, 699.95 USD pricing, 18-in/22-out USB-C configuration

(2025.8.10)
