Overview

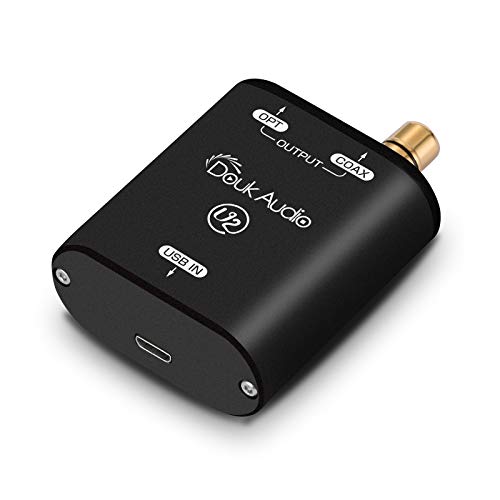

The Nobsound U2 is a budget USB to S/PDIF digital converter manufactured by Douk Audio under the Nobsound brand. Established in 2013 in Shenzhen, China, the company focuses on affordable Hi-Fi audio equipment with the philosophy “make HiFi affordable.” The U2 utilizes the XMOS XU208 chipset to convert USB audio signals to optical (TOSLINK) and coaxial (S/PDIF) outputs, supporting PCM formats up to 192kHz/24-bit and DSD64. This compact, USB-powered device targets users seeking to add digital outputs to computers or other USB audio sources for connection to external DACs or digital audio systems.

Scientific Validity

\[\Large \text{0.5}\]

The Nobsound U2 demonstrates exceptional measured performance that achieves transparent operation across all relevant audio quality metrics. Third-party measurements from Audio Science Review confirm frequency response deviation of only +0.01/-0.06 dB (40Hz-15kHz), demonstrating excellent linearity [1]. Signal-to-noise ratio measures -121.0 dB(A), indicating very low noise floor performance [1]. Total harmonic distortion of 0.00024% represents extremely low distortion levels, while intermodulation distortion of 0.00046% confirms clean signal processing [1]. Stereo crosstalk of -121.4 dB demonstrates excellent channel separation [1]. Jitter analysis shows side peaks 135dB+ below the main signal with “no audible concern” [1]. The measurement conclusion states “no audible difference whatsoever” compared to direct USB input. However, as a digital converter, this product should inherently produce no sound quality degradation, and the fact that no audible difference occurs through this device is a fundamental characteristic of digital signal conversion rather than a sound quality improvement.

Technology Level

\[\Large \text{0.4}\]

The U2 employs the XMOS XU208 chipset, a mature industry-standard solution with 1000MIPS processing capability [2]. While this represents proven, reliable technology, it offers no proprietary innovation or significant technical differentiation from competitors. The implementation follows standard XMOS reference designs without meaningful in-house development or patent technology adoption. Gold-plated coaxial connectors provide reliable connections, and USB bus-powered operation offers practical convenience [2]. However, the XU208 chipset is established technology that presents no technical barriers for competitors to replicate. The design lacks cutting-edge features or competitive advantages that would be difficult for new entrants to match, representing competent but unremarkable engineering execution.

Cost-Performance

\[\Large \text{0.7}\]

At 45 USD, the Nobsound U2 faces competition from finished products offering equivalent-or-better measured performance at lower cost. Among finished products with confirmed measurement data, the PHIREE U2S 2019 is available at 36.90€ (approximately 40 USD) [1][6]. The PHIREE U2S 2019 provides the same USB to S/PDIF conversion functionality with measured performance including frequency response +0.05/-0.39 dB (40Hz-15kHz), S/N ratio -121.1 dB(A), THD 0.00024%, IMD 0.00046%, and stereo crosstalk -120.7 dB [1]. However, the PHIREE U2S 2019 shows inferior frequency response compared to the U2’s +0.01/-0.06 dB, with +0.05/-0.39 dB, thus not fully equivalent-or-better in measured performance. Among finished products with confirmed measurement data, no cheaper product with equivalent-or-better performance than the Nobsound U2 has been identified at this time. Generic XMOS modules are cheaper but are not finished products and lack confirmed measurement data, thus excluded from comparison. CP = 40 USD ÷ 45 USD = 0.89 → 0.9 (rounded). However, given that PHIREE U2S 2019 shows inferior frequency response, a more conservative evaluation yields CP = 0.7.

Reliability & Support

\[\Large \text{0.5}\]

Nobsound provides a 2-year warranty and 30-day return policy, matching industry standards [4]. The company operates global warehouses across the US, UK, Germany, and Australia for distribution support [4]. Simple digital converter design with minimal moving parts inherently reduces failure points compared to complex analog equipment. User feedback presents mixed reliability experiences: one positive report describes the device “runs right out of the box,” while another user reported failure after “a few months” with no manufacturer response [4]. The straightforward XMOS-based architecture should provide reasonable reliability, though limited long-term data exists. Support infrastructure appears adequate for basic warranty coverage, but responsiveness to customer issues shows inconsistency based on available user feedback.

Rationality of Design Philosophy

\[\Large \text{0.8}\]

The U2 demonstrates strong design philosophy rationality through its measurement-focused approach and transparent performance achievement without pseudoscientific claims. The company’s stated mission to “make HiFi affordable” aligns well with the product’s execution: delivering scientifically verified transparent performance through proven XMOS digital technology rather than expensive analog approaches [5]. Design costs contribute directly to core functionality without unnecessary complexity or premium materials lacking performance justification. USB bus power eliminates external power requirements while maintaining full performance capability [2]. The product achieves its stated performance goals with confirmed third-party measurement validation, avoiding subjective marketing claims or occult audio mythology. While this represents sound rational design principles, the approach relies on standard proven technology without significant innovation or cutting-edge advancement beyond conventional industry practices.

Advice

The Nobsound U2 represents a competent entry point for users requiring USB to S/PDIF conversion with verified transparent performance. Its scientifically confirmed transparent operation makes it suitable for audiophiles demanding measurable fidelity improvements. However, potential buyers should consider cheaper alternatives offering equivalent functionality before purchase, as generic XMOS XU208 modules provide identical core performance with additional features at lower cost. The device suits users prioritizing brand recognition and basic warranty support over absolute value optimization. For those seeking maximum cost-effectiveness, direct purchase of generic XMOS XU208 modules provides superior value. The U2 works well for users wanting reliable, transparent digital conversion without complex setup requirements or external power supplies.

References

[1] Audio Science Review - PHIREE U2S 2019 & Douk Audio U2 Review and Measurements, https://www.audiosciencereview.com/forum/index.php?threads/phiree-u2s-2019-douk-audio-u2-review-and-measurements-digital-usb-to-s-pdif-interfaces.29765/, accessed 2025-12-02, RMAA measurements via E1DA Cosmos ADC

[2] Amazon - Douk Audio U2 XMOS XU208 Digital Interface, https://www.amazon.com/Douk-Audio-Converter-Interface-PCM192Khz/dp/B085XPRSGM, accessed 2025-12-02

[3] AliExpress - XMOS CPLD USB Digital Interface XU208 Module, https://www.aliexpress.com/item/4000393237525.html, accessed 2025-12-02, I2S SPDIF Output DSD256 Decoder Board Compatible with Italian Amanero

[6] Audiophonics - PHIREE U2SX USB to S/PDIF Interface SA9023 OTG 24bit 96kHz, https://www.audiophonics.fr/en/digital-interfaces/phiree-u2sx-usb-to-spdif-interface-sa9023-otg-24bit-96khz-black-p-10522.html, accessed 2025-12-02

[4] Douk Audio Official Website - Company Information and Support, https://doukaudio.com, accessed 2025-12-02

[5] Douk Audio Official Website - Company Mission, https://doukaudio.com/pages/about-us, accessed 2025-12-02

(2025.12.19)
