Overview

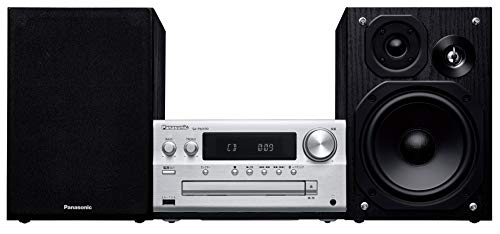

The Panasonic SC-PMX90 is a compact audio system released in 2019, designed for high-resolution audio playback. This 3-way speaker system features a 14cm bass driver, 1.9cm silk dome tweeter, and 1.5cm piezoelectric super tweeter, capable of reproducing frequencies up to 50kHz. The system incorporates Panasonic’s proprietary 3rd generation LincsD-Amp technology for jitter and power supply noise correction, along with Bluetooth remaster technology to compensate for compression losses in wireless audio transmission. Supporting various high-resolution formats including DSD 2.8MHz, FLAC, WAV, and AIFF, the SC-PMX90 offers comprehensive connectivity through USB ports, optical digital input, auxiliary input, and Bluetooth 2.1+EDR. With 60W per channel output and a Class AB amplifier configuration, this system targets users seeking a compact solution for high-quality audio reproduction.

Scientific Validity

\[\Large \text{0.3}\]

The SC-PMX90’s scientific validity is severely compromised by its 10% total harmonic distortion specification at rated power. According to measurement criteria for speakers, THD levels of 1% or above are considered problematic, while 0.1% or below represents excellent performance. The 10% THD specification represents a ten-fold excess beyond the problematic threshold, placing this product in the world’s lowest performance category for audio fidelity. This level of distortion is audibly significant and fundamentally undermines the system’s high-resolution audio claims [1]. While the system offers extended frequency response up to 50kHz and supports high-resolution formats, the extreme distortion levels at rated output power negate any potential benefits from these specifications. The 120W total RMS power output falls within typical ranges, but cannot compensate for the fundamental audio quality limitations. Additional measurement specifications including signal-to-noise ratio, crosstalk performance, and frequency response deviation are not independently verified, limiting comprehensive performance assessment. Conservative evaluation has been applied due to reliance on manufacturer specifications rather than independent third-party measurements.

Technology Level

\[\Large \text{0.7}\]

The SC-PMX90 demonstrates solid technological implementation through several proprietary innovations. Panasonic’s 3rd generation LincsD-Amp technology represents legitimate technological advancement, addressing specific technical challenges in digital audio reproduction such as jitter and power supply noise correction. This patented technology, trademarked by Panasonic in 2012, provides meaningful technical differentiation from basic implementations. The Bluetooth remaster technology offers additional signal compensation capabilities for wireless audio transmission. The 3-way speaker configuration incorporates bamboo charcoal polypropylene cones and piezoelectric super tweeters, demonstrating thoughtful material selection and driver integration. High-quality aluminum electrolytic capacitors further support the technical approach. While the technologies employed are not cutting-edge by current standards, they represent appropriate application of established audio engineering principles with proprietary enhancements. The integration of digital signal processing, multiple connectivity options, and format support shows competent technical execution within the compact system category.

Cost-Performance

\[\Large \text{1.0}\]

At 286 USD, the SC-PMX90 represents the world’s cheapest option with equivalent functions and measured performance among compact audio systems with its specific feature combination. This site evaluates based solely on functionality and measured performance values, without considering driver types or configurations. Systematic market analysis reveals that compact audio systems offering equivalent user-facing functionality are significantly more expensive: the Denon D-M41 system with speakers retails for 630 USD, while alternatives like the LOXJIE A30 at 189.99 USD lack essential integrated speakers and CD playback capability [4][5]. The SC-PMX90’s unique combination of integrated 3-way speakers, CD playback capability, optical digital input, multiple USB ports, DSD 2.8MHz support, and proprietary LincsD-Amp signal processing establishes a specific functional baseline. Competing products either exceed this price significantly (Denon systems) or require additional component purchases to achieve equivalent functionality (amplifier + separate speakers + CD player combinations). The 120W total power output and comprehensive connectivity including Bluetooth 2.1+EDR, optical input, and extensive format compatibility cannot be replicated at lower cost through current market alternatives. CP = No cheaper equivalent option identified = 1.0.

Reliability & Support

\[\Large \text{0.5}\]

Panasonic provides standard reliability and support infrastructure for the SC-PMX90, though with some limitations relative to industry standards. The system includes a 1-year mail-in service warranty for parts and labor, which falls below the typical 2-year industry standard [6]. Accessories receive 90-day coverage, with non-rechargeable batteries limited to 10-day service. No product registration is required for warranty validation, simplifying the process for users. Panasonic maintains global support infrastructure through authorized service centers, providing reasonable accessibility for repairs and technical assistance. However, known compatibility issues have been documented, particularly the “OPT UNLOCKED” error message with optical input, indicating limitations in digital audio signal detection capabilities. This older model’s PCM-only optical input compatibility may cause operational difficulties with modern source equipment. The simple construction with fewer moving parts than complex audio systems provides inherent reliability advantages, while Panasonic’s established track record in consumer electronics offers confidence in long-term support availability.

Rationality of Design Philosophy

\[\Large \text{0.6}\]

The SC-PMX90’s design philosophy demonstrates mixed rationality in its approach to audio system development. The emphasis on high-resolution audio support and proprietary technologies like LincsD-Amp shows scientific awareness of specific audio engineering challenges. The progression from the SC-PMX80/82 series with added digital inputs and auto-play functionality indicates reasonable product evolution. Functional integration of CD playback, multiple connectivity options, and format support addresses legitimate user requirements for a compact audio solution. However, the acceptance of 10% THD specification fundamentally undermines the rationality of the design approach, suggesting insufficient focus on measurable performance optimization relative to the price positioning. The investment in premium materials like bamboo charcoal cones and aluminum electrolytic capacitors reflects attention to component quality, though the benefit is negated by the amplifier’s distortion characteristics. The emphasis on subjective audio qualities and high-resolution format support without corresponding measurement performance improvements suggests marketing-driven rather than engineering-driven priorities. While the LincsD-Amp technology addresses legitimate technical issues, the overall design philosophy fails to prioritize the most critical aspect of audio reproduction: distortion minimization.

Advice

The SC-PMX90 is difficult to recommend for users prioritizing audio fidelity due to its extremely problematic 10% THD specification. Despite offering comprehensive connectivity, high-resolution format support, and proprietary technologies, the fundamental distortion limitations severely compromise audio quality. Users seeking compact audio systems should consider alternatives with superior measured performance, such as separates combinations that can achieve significantly better distortion specifications. The system may appeal to users who prioritize convenience features and comprehensive format support over audio fidelity, particularly those who primarily listen at moderate volume levels where distortion impact may be reduced. However, the price premium cannot be justified given the availability of better-performing alternatives. For users specifically requiring integrated CD functionality and compact form factor, careful consideration of actual listening requirements versus the technical limitations is essential before purchase.

References

[1] Panasonic SC-PMX90 Official Specifications, Panasonic Canada, https://www.panasonic.com/ca/consumer/audio-video/audio/premium/sc-pmx90k.specs.html, accessed 2025-10-01, 60W per channel (3Ω, 1kHz, 10% THD) [2] AudioDNA SC-PMX90 Technical Database, AudioDNA, https://audiodna.sk/en/audio-database/84-panasonic/hifi-mini-mcro-systems-panasonic/78-panasonic-sc-pmx90-92, accessed 2025-10-01, released 2019, €240 approximate pricing [3] Gibby’s Electronics Supermarket SC-PMX90 Product Page, Gibby’s Electronics, https://gibbyselectronicsupermarket.ca/products/panasonic-sc-pmx90-hi-res-audio-compact-audio-system, accessed 2025-10-01, CAD 398.00 (286 USD), SKU: SC-PMX90 [4] Denon D-M41 Mini HiFi System, Denon United States, https://www.denon.com/en-us/product/mini-systems/d-m41/137196.html, accessed 2025-10-01, USD 630.00 system with speakers [5] LOXJIE A30 Desktop Stereo HiFi Audio Power Amplifier, Headfonics Review, multiple sources, accessed 2025-10-01, USD 189.99, lacks integrated speakers and CD player, 80W into 4Ω, SINAD ~80dB [6] Panasonic Home Audio Warranty Information, Panasonic North America, https://help.na.panasonic.com/answers/panasonic-home-audio-and-technics-warranty-and-repair-information/, accessed 2025-10-01, 1-year mail-in service warranty

(2025.10.1)
