Overview

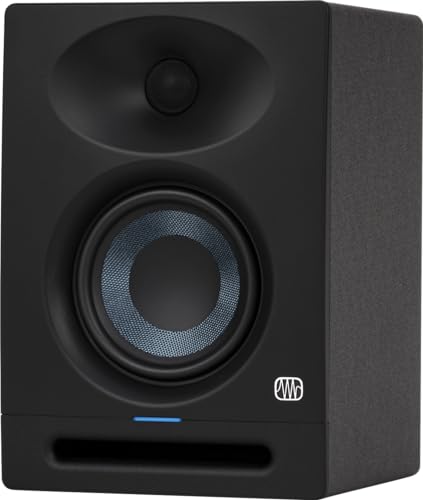

The PreSonus Eris Studio 4 is a compact 4.5-inch active nearfield monitor in the Eris Studio line. It features an EBM (Elliptical Boundary Modeled) waveguide with 120°×60° dispersion, 50 W Class-AB bi-amplification (25 W LF + 25 W HF), front-firing port, and onboard acoustic tuning. Claimed specs include 55 Hz–20 kHz frequency response, crossover at 2.7 kHz, and peak SPL listed as 100 dB at 1 m on the US page, while the JP page lists 99 dB and confirms the 2.7 kHz crossover—an inconsistency worth noting [1][4].

Scientific Validity

\[\Large \text{0.5}\]

Measured performance specific to this exact model (full spinorama, on/off-axis response, THD vs. SPL, max SPL sweep) has not been published by credible third parties as of the review date. Provisional assessment therefore relies on manufacturer specs: 55–20,000 Hz, 50 W Class-AB bi-amp (25 W + 25 W), 120°×60° waveguide, 2.7 kHz crossover, and peak SPL claim around 99–100 dB [1][4]. Until independent data appears, a neutral baseline of 0.5 is appropriate.

Technology Level

\[\Large \text{0.5}\]

The design implements competent, mainstream engineering for this class. The EBM waveguide targets controlled directivity; drivers are a 4.5-inch woven-composite woofer and 1-inch silk-dome tweeter; amplification is conventional Class-AB. Useful room-integration tools are provided: HF and Mid knobs (±6 dB), an Acoustic Space switch (flat/-2/-4 dB), and a high-pass filter (Off/80/100 Hz) to integrate with a subwoofer [1]. These are solid but not beyond current industry norms.

Cost-Performance

\[\Large \text{0.8}\]

Review target price: 146.99 USD (official store) [1].
The cheapest equal-or-better alternative identified is M-Audio BX5 D3 (single) at 119 USD (B&H), offering a 5-inch woofer, 100 W bi-amp, balanced XLR/TRS inputs, and a wider published frequency range (52 Hz–35 kHz, manufacturer) [2][3].

Calculation (denominator = review target price):
119 USD ÷ 146.99 USD = 0.809… → 0.8 after rounding to one decimal place. Therefore, the cost-performance score is 0.8. [2][3]

Reliability & Support

\[\Large \text{0.7}\]

PreSonus documents protective circuits (RF interference, output-current limiting, over-temperature, soft-start) and provides standard warranty/repair channels via its support portal [1]. Warranty terms vary by region/product; confirm coverage at purchase [1].

Rationality of Design Philosophy

\[\Large \text{0.8}\]

The design prioritizes translation accuracy and practical room integration over cosmetics. The controlled 120°×60° dispersion and adjustable HF/Mid/Acoustic Space/high-pass filter address common small-room issues and sub integration straightforwardly. Emphasis on a front port and modest power suits desktop listening distances without resorting to non-evidenced claims [1].

Advice

The Eris Studio 4 suits compact studios or desks where space and listening distance are constrained. Expect useful tuning latitude, but bass extension is specified to 55 Hz; pairing with a sub via the 80/100 Hz high-pass options is advisable for full-range work. Prospective buyers sensitive to objective validation may prefer models with published independent measurements—or budget monitors like BX5 D3 that currently offer equal-or-better published specs at a lower price [2][3].

References

[1] PreSonus, “Eris Studio 4 (Single) — Official US Page / Price & Specs,” accessed 2025-08-16. https://www.presonus.com/products/eris-studio-4-single
[2] B&H Photo, “M-Audio BX5 D3 5 inch 2-Way 100W Powered Studio Monitor (Single) — Price/Specs,” accessed 2025-08-16. https://www.bhphotovideo.com/c/product/1345408-REG/m_audio_bx5_d3_5_powered.html
[3] M-Audio, “BX5 D3 — Powered Studio Reference Monitor,” accessed 2025-08-16. https://www.m-audio.com/monitors-headphones/bx5d3.html
[4] PreSonus Japan, “Eris Studio 4 (Single) — JP Page / Specs,” accessed 2025-08-16. https://jp.presonus.com/products/eris-studio-4-single

(2025.8.16)
