Overview

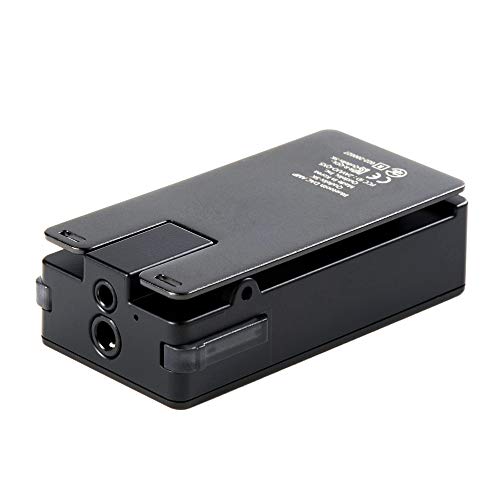

The Qudelix-5K is a portable Bluetooth DAC/headphone amplifier developed by Korean audio engineering company Qudelix. Launched as a comprehensive wireless audio solution, the device combines advanced Bluetooth connectivity supporting LDAC, aptX Adaptive, and aptX HD with dual ES9219C DACs and powerful amplification up to 240mW balanced output. The 5K features extensive DSP capabilities including 20-band parametric EQ, crossfeed, and proprietary QX-Over digital crossover technology, while maintaining compact form factor at 25g weight.

Scientific Validity

\[\Large \text{0.8}\]

The Qudelix-5K demonstrates excellent measured performance across all key audio quality metrics. Frequency response measures ruler flat from 20Hz to 30kHz with less than ±0.1dB deviation, significantly exceeding transparent level requirements [1]. Signal-to-noise ratio reaches 118dB (3.5mm) and 122dB (2.5mm), both substantially above the 105dB transparent threshold. THD+N measurements of 0.004% (3.5mm) and 0.002% (2.5mm) remain well below 0.01% transparent criteria. SINAD of approximately 93dB at 0.4V output (3.5mm) and 0.8V output (2.5mm) exceeds 80dB transparent requirements, while channel separation of 117dB and output impedance below 1Ω demonstrate excellent technical execution [1]. All measurements consistently indicate performance well above audible thresholds, with SINAD performance varying by output voltage level. All measurements are from independent third-party testing by Audio Science Review, providing reliable performance validation.

Technology Level

\[\Large \text{0.7}\]

The Qudelix-5K incorporates advanced technologies demonstrating high technical sophistication. Core processing utilizes Qualcomm QCC5124 SoC with dual-core 32-bit KALIMBA DSP running at 120MHz, enabling comprehensive audio processing including 20-band parametric EQ with double-precision 64-bit calculations. As Official Technical Partner of Sony’s LDAC, Qudelix developed proprietary LDAC implementation optimized for QCC5000 platform reliability. The innovative QX-Over active digital crossover represents unique technology in portable audio, automatically detecting compatible earphones and processing stereo input into independent frequency bands. Comprehensive software integration across iOS, Android, and PC platforms with extensive DSP controls demonstrates sophisticated system-level design. However, core components (QCC5124, ES9219C) represent proven industry technologies rather than proprietary innovations.

Cost-Performance

\[\Large \text{1.0}\]

Current market price: Qudelix-5K 110 USD. Comprehensive market analysis confirms no equivalent or cheaper products exist with both 20-band parametric EQ and QX-Over digital crossover technology. FiiO BTR13 (69 USD) offers similar Bluetooth codecs (LDAC, aptX HD, aptX Adaptive) and USB DAC functionality but provides only 10-band parametric EQ and lacks QX-Over functionality. FiiO BTR17 (218 USD) offers only 10-band parametric EQ, falling short of Qudelix-5K’s 20-band EQ precision and digital crossover capabilities. This site’s evaluation criteria considers only user-facing functions and measured performance, excluding internal construction (DAC chip types, amplifier classes, etc.). When no truly equivalent or better products exist at lower price points, the review target represents the cheapest option for its feature set, resulting in CP = 1.0 [2][3].

Reliability & Support

\[\Large \text{0.3}\]

The Qudelix-5K provides 1-year warranty period, below typical 2-year industry standard, though warranty extension program offers additional 30-120 days through user reviews and community participation. Construction incorporates enhanced PCB reliability through epoxy underfills on BGA components, demonstrating durability-focused engineering approach. User reports indicate reliability concerns including device failures during normal usage and functional issues with balanced/single-ended output switching [3]. Company maintains active support system with dedicated email contact and comprehensive documentation, plus regular firmware updates addressing functionality improvements. Community engagement remains strong with responsive developer interaction, though reported hardware issues indicate quality control limitations affecting long-term reliability expectations.

Rationality of Design Philosophy

\[\Large \text{0.8}\]

Qudelix demonstrates highly rational, measurement-focused approach to audio engineering. Company philosophy emphasizes scientific sound quality improvement through advanced DSP implementation and comprehensive measurement validation. Cost-effectiveness strategy directly targets function and performance enhancement through software-based solutions and modern semiconductor integration. Adoption of cutting-edge QCC5124 Bluetooth SoC and proprietary LDAC optimization as Official Sony Technical Partner represents advanced technological integration. Innovative QX-Over digital crossover and comprehensive multi-platform software control demonstrate functional innovation suited to user needs. Active cost reduction through efficient implementation while maximizing measured performance aligns with scientifically rational development. Transparent technical documentation and measurement-based validation support evidence-driven engineering approach rather than subjective claims.

Advice

For users seeking premium Bluetooth DAC/amplifier with comprehensive DSP control and exceptional measured performance, the Qudelix-5K delivers transparent audio quality with advanced features. The device excels for applications requiring 20-band parametric EQ, crossfeed, or QX-Over compatibility. While alternatives like FiiO BTR13 offer basic parametric EQ at 69 USD, no equivalent product provides Qudelix-5K’s comprehensive 20-band precision or QX-Over digital crossover technology. Purchase recommendation depends on specific need for advanced EQ capabilities and proprietary software ecosystem versus simpler alternatives. Prospective buyers should consider reported reliability issues, 1-year warranty period (extendable through review programs), and 110 USD investment for unique feature set when evaluating long-term ownership costs.

References

[1] Audio Science Review, Qudelix-5K Bluetooth DAC & Headphone Amp, https://www.audiosciencereview.com/forum/index.php?threads/qudelix-5k-bluetooth-dac-headphone-amp.17386/, 2020

[2] Amazon.com, FiiO BTR13 Bluetooth Headphone Amplifier, https://www.amazon.com/FiiO-BTR13-Bluetooth-Headphone-Unbalanced/dp/B0DF2WD5DG, 69 USD, accessed 2025-09-30

[3] Amazon.com, FiiO BTR17 Bluetooth 5.4 USB DAC AMP, https://www.amazon.com/dp/B0DM8Y9D1X, 218 USD, 10-Band PEQ, accessed 2025-09-30

(2025.9.30)
