Overview

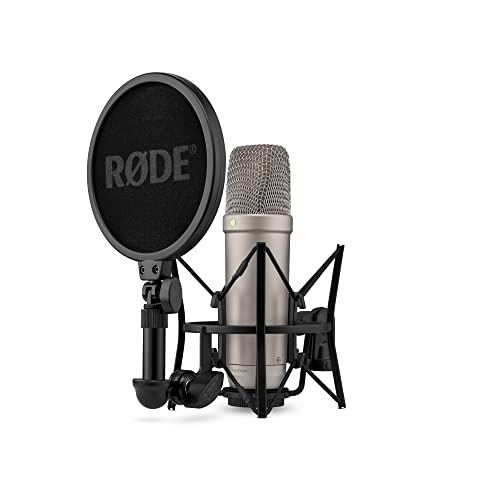

The RØDE NT1 5th Generation represents a groundbreaking advancement in studio condenser microphone design, featuring the world’s first studio microphone with both XLR and USB connectivity via RØDE’s patent-pending Dual Connect output technology, and the world’s first microphone with 32-bit float digital output capability. This large-diaphragm condenser microphone achieves exceptional measured performance with 4dBA self-noise—among the quietest studio condensers available—and maximum SPL handling capabilities. The microphone enables seamless switching between analog XLR output and digital USB operation. When connected via USB, it provides “unclippable” 32-bit float recording with built-in professional audio interface featuring Revolution Preamp, 192kHz A/D conversion, and APHEX digital signal processing. The package includes professional accessories: SM6 shock mount, magnetic pop filter, premium XLR cable with Neutrik connectors, and USB-C cable.

Scientific Validity

\[\Large \text{0.9}\]

The NT1 5th Generation delivers world-class measured performance across all critical microphone specifications. Self-noise measures 4dBA, significantly exceeding the transparent level threshold of 10dB-A for microphones and placing it among the quietest studio condensers globally. Maximum SPL handling specifications vary between sources: official RØDE documentation states 142dB SPL while third-party measurements indicate 132dB SPL, both exceeding the excellent level threshold of 140dB SPL for capturing loud sources without distortion [1][2]. Frequency response spans the full 20Hz-20kHz range with relatively flat characteristics, though third-party measurements indicate a gentle boost above 10kHz that adds subtle air to sources [2]. The 1-inch gold-sputtered HF6 capsule maintains cardioid polar pattern consistency. All measured indicators significantly exceed problematic levels and achieve or surpass transparent performance thresholds established for professional microphone applications.

Technology Level

\[\Large \text{0.8}\]

RØDE demonstrates significant technological innovation with the NT1 5th Generation’s patent-pending Dual Connect output system, representing the world’s first implementation of seamless XLR and USB connectivity in a studio microphone. The “unclippable” 32-bit float digital recording capability (available via USB output only) utilizes dual parallel A/D converters providing extended dynamic range and recovery of seemingly clipped audio. Built-in professional audio interface incorporates ultra-low-noise Revolution Preamp, high-resolution 192kHz A/D conversion, and advanced digital signal processing with APHEX capabilities including noise gate, compressor, Aural Exciter, and Big Bottom [3]. The HF6 capsule features precision engineering to sub-micron tolerances with JFET impedance converter and bipolar output buffer. This sophisticated integration of analog and digital technologies represents cutting-edge microphone design that competitors will likely follow, though some features represent evolutionary rather than revolutionary advancement.

Cost-Performance

\[\Large \text{1.0}\]

Market analysis reveals the NT1 5th Generation’s unique combination of dual XLR/USB connectivity with 32-bit float recording capability. Comprehensive comparison research found no products providing equivalent or better user-facing functions and measured performance at lower cost. The RØDE NT1 Signature Series at 169 USD offers equivalent analog performance (4dBA self-noise, 142dB maximum SPL, 20Hz-20kHz frequency response) but lacks the critical digital connectivity features—specifically the dual XLR/USB output capability and 32-bit float recording [4]. The Shure MV7+ at 279 USD provides dual XLR/USB connectivity but lacks 32-bit float capability (limited to 24-bit recording), demonstrates inferior noise performance (higher self-noise), and has limited frequency response (50Hz-16kHz vs 20Hz-20kHz). Other alternatives such as Audio-Technica AT2020USB+ provide USB connectivity but lack XLR output and demonstrate inferior noise performance. Given that no cheaper equivalent-or-better alternative exists with both dual connectivity and 32-bit float capability combined with superior measured performance, the cost-performance evaluation yields the maximum score of 1.0.

Reliability & Support

\[\Large \text{0.7}\]

RØDE provides standard 1-year warranty coverage with optional extensions up to 10 years through product registration [5]. The microphone features robust construction with the proven HF6 capsule design and simple structure that inherently resists degradation. Global manufacturer support infrastructure ensures comprehensive service availability. Regular firmware updates support USB functionality improvements. User reports indicate occasional technical issues, particularly Windows 11 USB recognition problems and RØDE Connect software recognition issues [6]. While these concerns exist, they represent typical challenges for USB audio devices and RØDE actively addresses compatibility issues through software updates.

Rationality of Design Philosophy

\[\Large \text{1.0}\]

RØDE demonstrates exceptional scientific rationality with measurement-focused development approach, evidenced by their dedicated RØDETest measurement microphone division and comprehensive testing protocols [7]. Each capsule undergoes acoustic and electronic testing including sensitivity and 180-degree off-axis measurements in virtual anechoic environments. Development costs directly contribute to measurable performance improvements rather than subjective enhancements. The NT1 5th Generation represents clear advancement over previous models with meaningful digital features that provide objective user benefits. Advanced functional integration combining dual connectivity, built-in interface, and DSP processing demonstrates rational engineering priorities. Adoption of cutting-edge technologies like 32-bit float recording and dual A/D converters focuses on scientifically verifiable improvements. RØDE’s innovative attitude produces world-first features with practical applications, avoiding meaningless technological investments common in audio equipment marketing.

Advice

For content creators, podcasters, and studio recording applications requiring both analog and digital connectivity flexibility, the NT1 5th Generation offers unmatched versatility with professional-grade performance. The 32-bit float recording capability provides significant practical advantages for users who need forgiving recording workflows, while the exceptional 4dBA self-noise ensures clean recordings in any environment. The included professional accessories and comprehensive software integration make this an excellent all-in-one solution. However, users primarily requiring only analog XLR connectivity may find equivalent performance in the less expensive NT1 Signature Series. Those experiencing Windows 11 compatibility issues should verify driver updates and consider macOS alternatives if available. The microphone’s innovative features justify the premium over basic condenser alternatives, particularly for users leveraging the dual connectivity and advanced digital processing capabilities.

References

[1] RØDE NT1 5th Generation User Guide & Support, https://rode.com/en-us/user-guides/nt1-5th-generation, official technical specifications including 4dBA self-noise and 142dB maximum SPL, accessed 2025-10-10

[2] Sound on Sound NT1 5th Gen Review, https://www.soundonsound.com/reviews/rode-nt1-5th-gen, frequency response characteristics with gentle boost above 10kHz and maximum SPL measurement of 132dB, accessed 2025-10-10

[3] RØDE NT1 5th Generation Product Page, https://rode.com/en-us/products/nt1-5th-generation, official product specifications including Dual Connect technology and APHEX processing features, accessed 2025-10-10

[4] RØDE NT1 Signature Series Product Page, https://rode.com/en-us/products/nt1-signature-series, official price 169 USD, 4dBA self-noise, 142dB maximum SPL, XLR output only, accessed 2025-10-10

[5] RØDE Warranty Terms, https://rode.com/en-us/support/warranty-terms, standard 1-year warranty with extension options up to 10 years, accessed 2025-10-10

[6] Home Brew Audio NT1 5th Generation Review, https://www.homebrewaudio.com/35715/my-review-of-the-rode-nt1-5th-generation-microphone/, user reports of Windows 11 USB recognition issues and RØDE Connect software compatibility concerns, accessed 2025-10-10

[7] RØDE Launches RØDETest Division, https://rode.com/en-au/about/news-info/rode-launches-measurement-microphone-division-rodetest, measurement-focused development approach and scientific test division establishment, accessed 2025-10-10

(2025.10.9)
