Overview

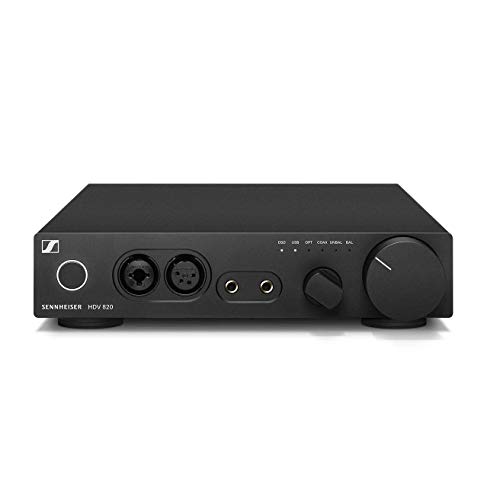

The Sennheiser HDV 820 is a premium desktop DAC and headphone amplifier featuring an ESS SABRE32 DAC with support for 32-bit/384kHz PCM and DSD256 playback. Positioned as a reference-grade amplifier at USD 2,749.95 (current B&H pricing), it offers comprehensive connectivity including balanced XLR outputs and multiple headphone output options. The unit employs symmetrical balanced circuitry throughout and targets high-impedance headphone users with its sophisticated German engineering pedigree.

Scientific Validity

\[\Large \text{0.3}\]

Third-party measurements from Audio Science Review reveal significant performance issues that contradict the premium positioning. Total harmonic distortion rises dramatically to 0.2% at 20kHz [1], far exceeding the problematic threshold of 0.1% THD. Output impedance was measured around 45 Ω [1], which can materially alter headphone frequency response and waste power on low-impedance loads. While the manufacturer claims dynamic range >115dB and frequency response from 10Hz to >100kHz, the measured distortion performance shows concerning degradation at higher frequencies. The unit performed poorly with low-impedance headphones, producing distorted, compressed sound quality during testing. Performance was notably better with high-impedance Sennheiser HD650 headphones via the 1/4” output, suggesting optimization for specific loads.

Technology Level

\[\Large \text{0.7}\]

The HDV 820 incorporates solid technical foundations with the ESS SABRE32 DAC supporting high-resolution formats up to DSD256 and 32-bit/384kHz PCM. The fully balanced signal path and symmetrical circuitry design represent competent engineering approaches. Multiple output configurations including 3-pin XLR, 4-pin XLR, 6.3mm, and 4.4mm Pentaconn provide comprehensive connectivity options. However, the implementation falls short of achieving transparent performance levels, indicating execution issues despite reasonable design choices.

Cost-Performance

\[\Large \text{0.2}\]

At USD 2,749.95, the HDV 820 faces severe cost-performance challenges. A directly comparable balanced desktop DAC/headphone amplifier with verified strong measurements is the Topping DX7 Pro+ (ASR-reviewed) at USD 699 [3]. The cost-performance calculation per policy (cheapest equivalent-or-better ÷ target price): 699 ÷ 2,749.95 = 0.254, demonstrating significant overpricing for the delivered performance. For category-specific alternatives: the RME ADI-2 DAC FS (USD 1,099.99 typical) offers superior DSP and DAC functionality; for pure amplification, Topping A70 Pro (USD 499) delivers up to 17 W with excellent measurements. Even when considering build and brand value, substantially cheaper products match or exceed the HDV 820’s measured performance.

Reliability & Support

\[\Large \text{0.6}\]

Sennheiser provides standard manufacturer warranty coverage and has established service networks globally. The company maintains a solid reputation for build quality in their consumer products. However, the measurement issues identified in third-party testing raise questions about quality control consistency. Some users reported satisfactory experiences despite poor measured performance, suggesting unit-to-unit variation potential. The premium pricing should ensure robust reliability, but limited long-term reliability data exists for this specific model.

Rationality of Design Philosophy

\[\Large \text{0.3}\]

The design philosophy emphasizes balanced signal processing and comprehensive connectivity options, which are scientifically sound approaches. However, the execution fails to deliver the expected performance improvements, with measured distortion levels contradicting high-fidelity claims. The focus on premium aesthetics and build quality over measured performance represents misplaced priorities. The high pricing lacks justification when significantly cheaper alternatives achieve superior measured results. The design direction shows understanding of audio principles but insufficient attention to implementation quality.

Advice

Avoid purchasing the HDV 820 at current pricing. Despite the Sennheiser brand reputation and solid build quality, the measured performance issues and extreme cost disadvantage make it impossible to recommend. Consider the RME ADI-2 DAC FS for superior functionality and measurements at half the price, or the Topping A70 Pro for exceptional amplification performance at one-quarter the cost. If already owned, the unit may provide acceptable subjective performance with high-impedance Sennheiser headphones, but represents poor value for the investment.

References

[1] Audio Science Review, “Sennheiser HDV-820 USB DAC & Headphone Amp Review”, https://www.audiosciencereview.com/forum/index.php?threads/sennheiser-hdv-820-usb-dac-headphone-amp-review.10393/, accessed 2025-08-10, includes THD vs frequency (≈0.2% at 20 kHz) and ≈45 Ω output impedance.

[2] B&H Photo, “Sennheiser HDV 820 Digital Headphones Amplifier (MFR #507444)”, https://www.bhphotovideo.com/c/product/1367726-REG/sennheiser_507444_hdv_820_digital_headphones.html, price observed USD 2,749.95; lists manufacturer key specs (e.g., 32-bit/384 kHz, DSD256, >115 dB DR, <0.001% THD+N).

[3] Audio Science Review, “Topping DX7 Pro+ Review (DAC & HP Amp)”, https://www.audiosciencereview.com/forum/index.php?threads/topping-dx7-pro-review-dac-hp-amp.36978/, includes measured performance and price (699 USD) at time of review.

(2025.8.10)
