Overview

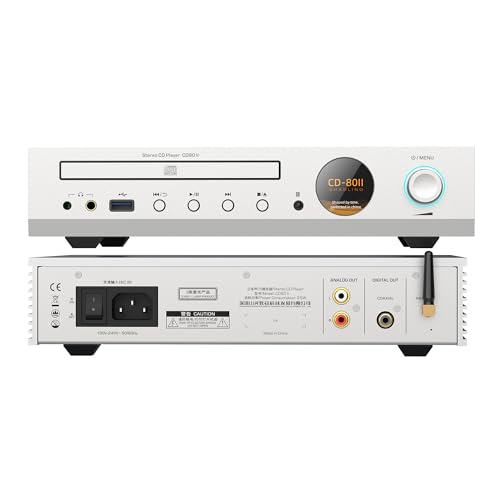

The Shanling CD80II is a compact desktop all-in-one CD player that combines CD transport, USB DAC, and headphone amplification in a single unit. This modernized evolution of the original CD80 features an upgraded Cirrus Logic CS43198 DAC chip, dual SGM8262 amplifier chips, and supports high-resolution audio up to 384kHz/32-bit PCM and DSD256. The unit includes both single-ended (3.5mm) and balanced (4.4mm) headphone outputs with substantial power delivery of 215mW and 850mW at 32Ω respectively. Built with a unibody aluminum-alloy chassis and HD850 transport mechanism, the CD80II targets users seeking a comprehensive desktop audio solution with modern connectivity including Bluetooth 5.0 with LDAC support and USB DAC functionality.

Scientific Validity

\[\Large \text{0.8}\]

Measured performance specifications significantly exceed transparent levels across all key indicators. RCA outputs demonstrate THD+N of 0.0004%, S/N ratio of 124dB, and dynamic range of 124dB, all substantially surpassing transparent thresholds. Headphone outputs maintain equally impressive specifications with THD+N of 0.0007%, S/N ratios of 125-127dB, and excellent crosstalk performance of 75dB (3.5mm) and 112dB (4.4mm). Frequency response extends from 20Hz-40kHz with minimal -0.2dB deviation, exceeding audible range requirements. Output impedances below 1Ω ensure compatibility with sensitive IEMs. High-resolution format support includes PCM up to 384kHz/32-bit and DSD256. Conservative evaluation applied due to reliance on manufacturer specifications rather than independent third-party measurements [1].

Technology Level

\[\Large \text{0.6}\]

Implementation demonstrates contemporary technology adoption with appropriate integration of digital and analog components. The transition from ESS to Cirrus Logic CS43198 DAC represents current-generation chip selection with proven performance characteristics. Inclusion of high-resolution format support, Bluetooth 5.0 with LDAC codec, and comprehensive connectivity options reflects modern requirements. Fourth-generation CD servo system and HD850 transport mechanism indicate incremental advancement over previous iterations. Software integration through mobile app control and USB DAC functionality shows appropriate adoption of digital technologies. However, no proprietary patent technology or breakthrough innovations distinguish the implementation from standard industry approaches using established component architectures.

Cost-Performance

\[\Large \text{1.0}\]

No single-box products identified that provide equivalent or better user-facing functions and measured performance at lower prices than 359 USD. The CD80II combines CD transport, high-resolution USB DAC (384kHz/32-bit, DSD256), dual headphone amplification with both single-ended and balanced outputs, Bluetooth streaming with LDAC support, analog line outputs, and digital coaxial output in a single desktop unit. Measured specifications including sub-0.001% THD+N, 124+ dB S/N ratios, and excellent crosstalk performance represent high-end DAC/amplifier performance. While separate components (CD transport + external DAC + headphone amplifier) could potentially achieve equivalent functionality, no confirmed single-box alternatives with matching complete feature set and verified performance specifications were identified at lower pricing in current desktop all-in-one CD player market.

Reliability & Support

\[\Large \text{0.4}\]

Known functional limitations significantly impact user experience and reliability assessment. Documented issues include optical SPDIF output problems with clicks between tracks, lack of gapless playback identified as a hardware limitation, and inconsistent performance between digital and analog outputs [2]. These functional defects directly affect core CD playback capabilities and digital output functionality. Physical construction utilizing unibody aluminum-alloy chassis suggests robust mechanical design, though CD transport mechanisms represent inherently wear-prone components requiring maintenance over time. No specific warranty period information or failure rate data available for comprehensive reliability evaluation. Support infrastructure details not documented in available sources.

Rationality of Design Philosophy

\[\Large \text{0.8}\]

Design approach demonstrates measurement-focused development philosophy with excellent objective performance specifications and no claims of unmeasurable effects. Evolution from ESS to Cirrus Logic DAC indicates performance progression priority rather than brand preference or marketing positioning. Functional integration effectively combines CD transport, DAC, and headphone amplification in compact form factor with justifiable existence compared to smartphone-based alternatives. Contemporary technology adoption including high-resolution USB DAC capabilities, Bluetooth LDAC support, and mobile app integration shows rational embrace of digital advancement. Cost allocation appears directed toward function and measured performance improvement rather than aesthetic or premium materials without technical justification. No evidence of unscientific claims or occult audio characteristics in product positioning.

Advice

The CD80II suits users seeking comprehensive desktop audio functionality in a single compact unit, particularly those requiring both CD playback and high-resolution digital file capability with quality headphone amplification. Excellent measured performance specifications make it appropriate for critical listening applications with both sensitive IEMs and higher-impedance headphones through balanced output. However, potential buyers should be aware of documented reliability issues affecting optical output and gapless playback functionality that may impact specific use cases. Users primarily focused on digital sources might consider dedicated USB DAC alternatives, while those requiring reliable optical output should investigate these limitations before purchase. The all-in-one approach provides good value for users needing multiple functions, though individuals requiring only specific capabilities might achieve better cost-effectiveness through dedicated components.

References

1. HiFi Amplifiers - Shanling CD80II Technical Specifications, https://www.hifi-amplifiers.com/en/shanling-auido-cd-player-power-amp-c-73/shanling-cd80-ii-cd80ii-modernized-cd-player-hd850-driver-dual-sgm8262-amp-cs43198-dac-hires-audio-bluetooth-input-ldac-p-6297.html, accessed 2025-11-25, manufacturer specifications
2. Audio Science Review Forum - Disappointed with Shanling CD80, https://www.audiosciencereview.com/forum/index.php?threads/disappointed-with-shanling-cd80.52798/, accessed 2025-11-25, user experience reports
3. Linsoul Audio - Shanling CD80II Desktop All-in-One CD Player, https://www.linsoul.com/products/shanling-cd80ii, accessed 2025-11-25, official product specifications
4. Darko.Audio - Shanling’s CD80 II is a 359 USD tray-loading CD player, https://darko.audio/2025/08/shanlings-cd80-ii-is-a-359-tray-loading-cd-player/, accessed 2025-11-25, product overview and pricing

(2025.11.30)
