Overview

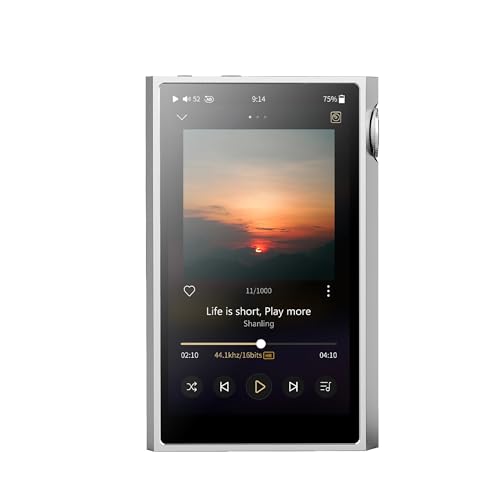

The Shanling M5 Ultra marks a return to the company’s Linux-based MTouch platform (latest generation) on the Ingenic X2000, paired with AKM’s flagship AK4499EX DAC + AK4191 modulator and a TI TPA6120A2-based amplifier stage. It features a 4.7-inch 1280×720 touchscreen, Wi-Fi (DLNA/AirPlay), two-way Bluetooth 5.2, USB DAC via XMOS XU316, and 3.5 mm SE / 4.4 mm balanced outputs. Shanling notes a built-in Tidal Online Streaming app (to be added via firmware update), and “up to 11 hours” battery life (manufacturer specs) [1][2][3][4][5].

Scientific Validity

\[\Large \text{0.5}\]

Shanling’s published audio specs are in the transparent class for static metrics: THD+N 0.0007 % (balanced) / 0.0009 % (SE), SNR 124 dB (balanced) / 121 dB (SE), and channel separation up to 110 dB (manufacturer specs; test load 32 Ω) [1][2][3]. However, output impedance is high at 6.6 Ω (balanced) and 4.7 Ω (SE) [1][2]. By the 1/8 rule for transparent damping, 6.6 Ω implies you need ≥ ~53 Ω IEMs/headphones on balanced to avoid frequency-response shifts; 4.7 Ω SE implies ≥ ~38 Ω. Most modern IEMs are 8–32 Ω, so audible FR deviations are likely with many IEMs despite the strong THD/SNR figures (manufacturer specs) [1][2].

Technology Level

\[\Large \text{0.6}\]

The AK4499EX+AK4191 DAC architecture, XMOS XU316 USB input, and the dedicated MTouch OS represent capable, current tech. The amplifier centers on TI’s TPA6120A2 with three-step gain and six digital filters; rated power is up to 1,100 mW @ 32 Ω from the 4.4 mm output (manufacturer specs) [1][2][3]. The Ingenic X2000 SoC and 6,000 mAh battery are adequate rather than cutting-edge. Construction uses a machined aluminum frame with glass panels and an illuminated volume wheel [1][2].

Cost-Performance

\[\Large \text{0.4}\]

Using 589 USD as the review-target price (Shenzhenaudio regular price) [3], the HiBy R4 (249 USD regular) offers equivalent-or-better user-visible functionality (Android 12 with full app ecosystem, two-way BT, DLNA, balanced out) and manufacturer-published performance at or above transparency (min THD 0.0005 %, SNR up to 123 dB; max 525 mW @ 32 Ω balanced) [6][7][8]. Therefore CP = 249 ÷ 589 = 0.42 → score 0.4. Note: some retailers list the M5 Ultra at 569 USD, but the denominator remains 589 USD for consistency with the front-matter price [4].

(Equivalence note): “Equipped with Android streaming and balanced output; THD+N (≤ 0.0005 %) and SNR (≤ 123 dB) are equivalent-or-better (manufacturer specs).” [6][7][8]

Reliability & Support

\[\Large \text{0.6}\]

Warranty coverage varies by seller/region: Linsoul lists 1-year for DAPs [4], while Shenzhenaudio highlights a two-year warranty on this model [3]. Shanling’s own warranty notice explains that warranty is handled by the seller/authorized channel (direct Shanling coverage applies to their official store/Amazon shop), and logistics depend on point of purchase [9]. Battery life is “up to 11 hours” (manufacturer spec; typically for SE output) [2][3][4].

Rationality of Design Philosophy

\[\Large \text{0.3}\]

Pursuing a “pure-music” Linux OS is reasonable for simplicity, but the high output impedance (6.6 Ω / 4.7 Ω) is at odds with transparent drive of modern low-impedance IEMs. Given that an equivalent-or-better performer (HiBy R4) is widely available at ~42 % of the price while offering broader app functionality, the economic and technical rationale of this configuration is weak from a fidelity-per-dollar perspective [1][2][6][7][8].

Advice

If you primarily use low-impedance IEMs, the M5 Ultra’s output impedance risks audible FR shifts; consider sources with ≤ 1 Ω output for transparent damping. If you need streaming apps, library managers, and general versatility, an Android DAP like the HiBy R4 gives comparable measured transparency (manufacturer specs) at much lower cost. The M5 Ultra can make sense for users with higher-impedance headphones or those preferring Shanling’s MTouch ecosystem, accepting the price premium and impedance trade-offs [1][2][6][7][8].

References

[1] Shanling — M5 Ultra product page (official images/specs incl. THD+N, SNR, channel separation, output impedance, output power). Accessed 2025-08-28. https://en.shanling.com/product/451
[2] Shanling — Introducing Shanling M5 Ultra (official news/specs; Tidal app note; platform/components; power; dimensions; battery). Accessed 2025-08-28. https://en.shanling.com/article-Introm5ultra.html
[3] Shenzhenaudio — SHANLING M5 Ultra AK4499EX + AK4191 (regular price 589 USD; specs; “Two-year Warranty” listing). Accessed 2025-08-28. https://shenzhenaudio.com/products/shanling-m5-ultra-ak4499ex-ak4191-portable-music-player
[4] Linsoul — Shanling M5 Ultra (listed price 569 USD; specs; 1-Year Warranty note). Accessed 2025-08-28. https://www.linsoul.com/products/shanling-m5-ultra
[5] Shanling — M5 Ultra Downloads / Firmware (firmware notes incl. “Optimized Tidal performance”). Accessed 2025-08-28. https://en.shanling.com/download/113
[6] HiBy Store — HiBy R4 (regular price 249 USD; Android 12; features/specs). Accessed 2025-08-28. https://store.hiby.com/products/hiby-r4
[7] Hifonix — HiBy R4 — Audio Specification (min THD 0.0007 %/0.0005 %, SNR 120/123 dB, max 165/525 mW, Vrms). Accessed 2025-08-28. https://hifonix.co.uk/detail/hiby-r4-make-music-more-musical/
[8] Headphone Zone — HiBy R4 (states 0.0005 % distortion, 123 dB SNR, 525 mW). Accessed 2025-08-28. https://www.headphonezone.in/products/hiby-r4
[9] Shanling — Warranty / After-sale service note (warranty handled by seller; direct coverage via official store/Amazon). Accessed 2025-08-28. https://en.shanling.com/category/256

(2025.8.29)
