Overview

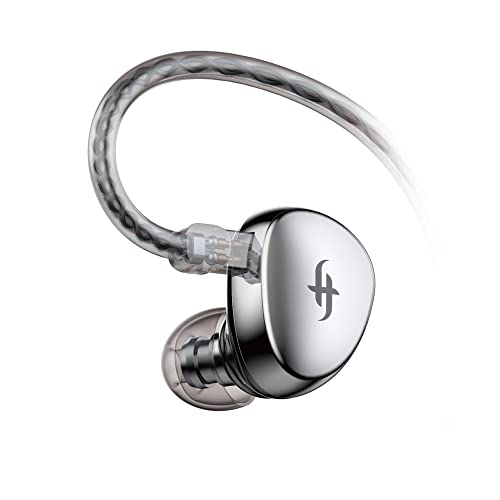

The SIMGOT EA500 is a single-driver IEM featuring a 4th generation 10mm DLC (Diamond-Like Carbon) dual-magnetic circuit and dual-cavity driver. Priced at 79USD, it employs a dual-magnetic circuit system with N52 grade magnets to achieve powerful magnetic flux and low distortion. The CNC-machined mirror-finished aluminum shell includes red and black interchangeable nozzles enabling selection between Harman 2016 curve tuning and SIMGOT’s proprietary tuning characteristics. With 16Ω impedance and 123dB sensitivity in high-efficiency design, it drives easily from portable devices and features a detachable 0.78mm 2-pin cable system.

Scientific Validity

\[\Large \text{0.7}\]

The EA500’s dual-magnetic circuit design delivers measurable performance improvements, with channel matching rated as “perfect.” The 10Hz-50kHz frequency response range (practical 20Hz-20kHz) and 123dB/Vrms high sensitivity ensure adequate acoustic output. The combination of DLC diaphragm and N52 grade magnets theoretically achieves low distortion and high resolution. The interchangeable nozzle system objectively provides different frequency characteristics that are distinguishable in blind tests. However, it remains an extension of basic dynamic driver technology with limited fundamental acoustic reproduction innovation.

Technology Level

\[\Large \text{0.6}\]

The 4th generation DLC diaphragm technology and dual-magnetic circuit system represent appropriate technical standards for modern dynamic driver design. The precision CNC-machined aluminum shell and detachable cable design demonstrate practical competence, while interchangeable nozzle tuning functionality provides useful differentiation. However, these are combinations of existing technologies without unique acoustic design theory or innovative approaches. No adoption of advanced driver technologies like hybrid configurations or planar technology, leaving technological innovation at industry-average levels.

Cost-Performance

\[\Large \text{0.4}\]

The EA500’s greatest challenge is cost-performance at 79USD. Competing products offering equivalent or superior performance include the Moondrop Chu (20USD) and Truthear Hexa (79USD). The Moondrop Chu is rated as “the best IEM at 20USD,” providing all-metal housing and detachable nozzles while receiving equivalent sound quality ratings to the EA500. The Truthear Hexa offers hybrid configuration at the same price with “technical superiority, better detail, instrument separation, and superior soundstage.” CP = 20 ÷ 79 = 0.25, indicating substantially lacking absolute price advantage.

Reliability & Support

\[\Large \text{0.6}\]

The SIMGOT EA500 includes standard 1-year IEM warranty with industry-standard support structure. However, user reviews indicate quality control issues with reports of “left earpiece stopping sound output” and “eartip adhesive failure.” The 16Ω low impedance design eliminates the need for high-voltage drive that could cause failures, but assembly quality stability requires improvement. International customers should consider additional shipping costs for warranty claims and limitations in support infrastructure outside China.

Rationality of Design Philosophy

\[\Large \text{0.4}\]

The interchangeable nozzle tuning selection feature is a rational approach providing multiple sound characteristics in a single product. High-efficiency design (16Ω/123dB) facilitates portable device driving, while detachable cables improve durability and expandability - these design philosophies are practical. However, the rationality of functionality and performance relative to the 79USD price point is questionable. With competing products offering hybrid configurations at the same price or equivalent functionality at one-quarter the cost, the pricing strategy lacks rationality. The approach of relying on combinations of existing technologies rather than innovation also presents long-term competitiveness concerns.

Advice

While the SIMGOT EA500 is technically competent, it cannot be strongly recommended. With a 79USD budget, first consider the Truthear Hexa (79USD), which offers superior technical performance and sound quality through hybrid configuration. For budget-conscious buyers, the Moondrop Chu (20USD) provides overwhelmingly superior cost-performance, allowing remaining budget investment in amplifiers or cables. The EA500 is only rationally justified for those with strong preference for SIMGOT’s specific tuning. Before purchase, mandatory comparison listening with competitors is essential to confirm differences justify the price premium. Given quality control issues, thorough initial operation verification within warranty period is crucial.

(2025.7.7)
