Overview

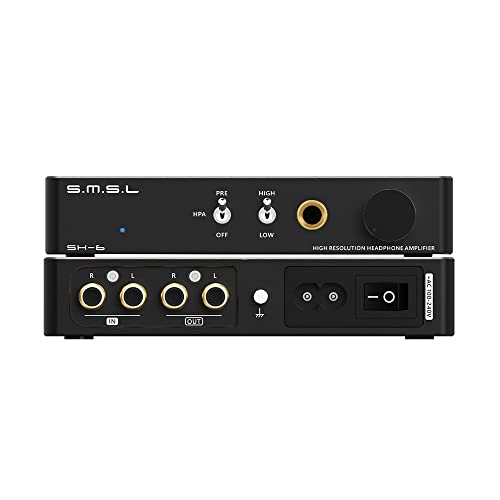

The SMSL SH-6 is a desktop headphone amplifier released in late 2021. It employs the company’s precision feedback circuit, achieving 2.6W (16Ω load) and 1.3W (32Ω load) output with an ultra-low distortion measurement of 0.00006% in a compact chassis [1]. The unit features a simple configuration with RCA input, 6.35mm output, and pre-out functionality, equipped with a gain switch (0dB/15.5dB).

Scientific Validity

\[\Large \text{0.8}\]

Measured performance reaches transparent levels, making this an excellent product. Manufacturer specifications of THD+N 0.00006% (1kHz, 32Ω load), SNR 134dB, and output noise 1.3µV significantly exceed transparent performance standards [1]. Frequency response of 20Hz-500kHz is exceptional, with crosstalk and dynamic range also at acceptable levels. However, the evaluation relies on manufacturer specifications due to limited independent third-party measurement data.

Technology Level

\[\Large \text{0.6}\]

The adoption of Precision Linear Feedback Circuit (PLFC) demonstrates excellent technical standards for this price range. Technologies contributing to sound quality improvement include ultra-low noise power supply design, high-precision low-temperature drift resistors, and pop noise prevention circuits. However, it represents a fundamentally generic approach without unique innovation or breakthrough design. As of 2025, it is evaluated as industry-standard technology level.

Cost-Performance

\[\Large \text{1.0}\]

At 119.99 USD, a representative competitor with comparable or better measurement performance and pre-out functionality is the TOPPING L30 II at about 149.99 USD [2]. Per policy, CP = 149.99 / 119.99 = 1.25, clipped to the maximum of 1.0; therefore the CP score is 1.0.

Reliability & Support

\[\Large \text{0.5}\]

SMSL, as an established Chinese audio manufacturer, maintains industry-average reliability. It provides standard warranty periods and after-sales support, but lacks notable long-term support or a high reliability track record. Availability depends on retail channels; check current stock and pricing with retailers. Firmware updates are not applicable to this product.

Rationality of Design Philosophy

\[\Large \text{0.6}\]

The scientifically rational goal of achieving transparent measurement performance is commendable. The compact design with adequate functionality, gain settings accommodating IEMs to high-impedance headphones, and practicality-focused design are reasonable approaches. The dedicated desktop amplifier design achieving both high output and low noise, difficult to accomplish with smartphone + external amp combinations, represents a rational approach.

Advice

Technically, this is an excellent headphone amplifier with transparent performance, and the 119.99 USD price point is reasonable versus peers. Compared with options like TOPPING L30 II, it offers competitive performance; verify current stock and pricing at retailers when purchasing.

References

[1] Manualslib - SMSL SH-6 User Manual (key specs: 2.6W/1.3W output, THD+N 0.00006%, SNR 134dB, FR 20Hz–500kHz, 0/15.5dB gain), https://www.manualslib.com/manual/2428466/Smsl-Sh-6.html, accessed August 10, 2025 [2] TechPowerUp - SMSL SU-6 & SH-6 Desktop Stack Review (competitor pricing incl. TOPPING L30 II ≈ 149.99 USD; SH-6 ≈ 119.99 USD), https://www.techpowerup.com/review/smsl-su-6-dac-sh-6-amplifier-desktop-stack/6.html, accessed August 10, 2025

(2025.8.10)
