Overview

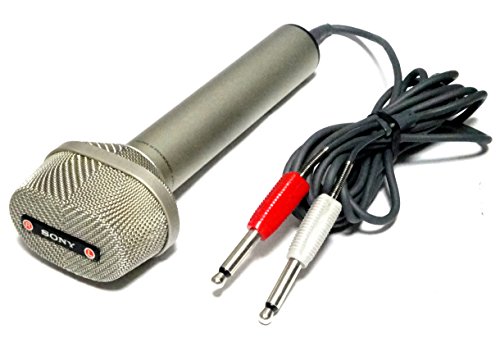

The Sony ECM-99 is a vintage electret condenser stereo microphone manufactured from approximately 1971 to 1979. This handheld unit features two electret cardioid microphones in a single housing, designed as an “ultra entry level” stereo recording solution for its era [1]. The microphone includes a table stand, holder, and 3-meter cable with dual 3.5mm jack plugs for left and right channels. Powered by a single C-size battery with approximately 2-year operational life, the ECM-99 represents early consumer-grade stereo recording technology from Sony’s microphone division.

Scientific Validity

\[\Large \text{0.1}\]

The ECM-99 demonstrates significantly problematic performance across multiple critical audio specifications. Signal-to-noise ratio measures less than 46 dB, falling well below the 60 dB problematic threshold for microphones [1]. Self-noise exceeds 28 dB SPL, surpassing the 20 dB-A problematic level. Maximum sound pressure level capability remains below 126 dB SPL, approaching the borderline problematic range of 120 dB. While dynamic range reaches 98 dB and frequency response spans 40-18,000 Hz, these moderate specifications cannot compensate for the severe deficiencies in noise performance. User reports describe the microphone as notably quiet with “brittle and dry” sound characteristics and poor low-frequency response [2]. These measured and subjective deficiencies place the ECM-99 significantly below acceptable standards for transparent audio capture.

Technology Level

\[\Large \text{0.5}\]

The ECM-99 represents competent engineering execution of 1960s electret condenser technology within its historical context. Sony applied in-house design expertise to create a dual-capsule stereo configuration using contemporary electret principles. The implementation includes reasonable technical features such as 250-ohm output impedance and efficient battery operation lasting approximately 20,000 hours. However, the technology level reflects limitations of its era, with purely analog/mechanical design lacking modern digital integration or advanced signal processing capabilities. While Sony demonstrated solid microphone development know-how in the stereo configuration approach, the underlying electret technology has been substantially superseded by modern implementations offering superior noise performance and frequency response characteristics.

Cost-Performance

\[\Large \text{1.0}\]

Current market pricing for the Sony ECM-99 averages around 25 USD on the used market. Following systematic search methodology starting from the lowest-priced stereo microphone options, no complete stereo microphone systems were found under 30 USD in the current market. The Behringer C-2 matched pair at 51.90 USD represents the cheapest equivalent-or-better stereo recording functionality with superior measured performance, including 20 Hz to 20 kHz frequency response versus the ECM-99’s 40-18,000 Hz range, and professional cardioid polar pattern with transformerless FET circuitry [3]. The Behringer alternative offers professional XLR connectivity, phantom power operation, and matched pair calibration ensuring stereo compatibility. Since no stereo microphone functionality is available at a lower price point than the ECM-99’s current market value, despite its inferior performance characteristics, the vintage Sony represents the cheapest option and receives the maximum cost-performance score.

Reliability & Support

\[\Large \text{0.0}\]

The ECM-99 faces critical reliability challenges inherent to vintage electret condenser technology from the 1970s. Electret condenser capsules from this era are prone to charge degradation over time, resulting in reduced output levels that require additional amplification beyond standard audio interfaces [2]. Users report the microphone being “notably QUIET,” indicating widespread capsule deterioration in surviving units. As a discontinued product, manufacturer warranty coverage has expired, and repair support depends entirely on spare parts availability, which Sony explicitly states may be limited for vintage products. No current manufacturer support infrastructure exists for this model, relegating maintenance to third-party services with uncertain parts access. The combination of known degradation patterns, discontinued status, and limited repair resources creates an unacceptable reliability profile for professional or serious amateur applications.

Rationality of Design Philosophy

\[\Large \text{0.6}\]

Sony’s design approach for the ECM-99 demonstrated rational engineering principles for its historical context, utilizing cost-effective electret technology in an innovative stereo configuration. The dual-capsule approach addressed consumer demand for stereo recording capability while maintaining accessible pricing as an entry-level product. Sony’s measurement-focused development philosophy evident in later professional products suggests a scientifically grounded approach to audio engineering. However, the resulting performance specifications fall substantially below current problematic thresholds, indicating that the design priorities of the 1970s no longer align with modern audio quality requirements. While the electret stereo implementation showed forward-thinking for its era, Sony’s subsequent microphone developments clearly demonstrate superior performance capabilities, validating a progression-oriented design philosophy that has moved beyond the ECM-99’s technical limitations.

Advice

The Sony ECM-99 should be considered unsuitable for any serious recording applications due to fundamental performance deficiencies and reliability concerns. With signal-to-noise ratio below 46 dB and self-noise exceeding 28 dB SPL, the microphone fails to meet minimum standards for transparent audio capture. Vintage electret capsule degradation creates additional operational uncertainty, requiring specialized amplification for usable output levels. Prospective users seeking stereo recording capability should instead consider modern alternatives such as the Behringer C-2 matched pair at 51.90 USD, which provides superior specifications including 20 Hz to 20 kHz frequency response and professional XLR connectivity. The ECM-99 may retain value only for collectors interested in Sony’s microphone development history or for specific vintage recording projects where period-appropriate equipment is required. For all practical recording purposes, contemporary microphone solutions offer dramatically better performance, reliability, and cost-effectiveness than this 1970s design.

References

[1] Sony ECM-99 Technical Specifications, HiFi-Wiki, https://hifi-wiki.com/index.php/Sony_ECM-99, accessed 2025-10-11 [2] Sony ECM-99 Discussion, Tapers Section Forum, https://taperssection.com/index.php?topic=66610.0, accessed 2025-10-11 [3] Behringer C-2 Small-Diaphragm Condenser Microphone Pair, Guitar Center, https://www.guitarcenter.com/Behringer/C-2-Small-Diaphragm-Condenser-Microphone-Pair-1274115050430.gc, accessed 2025-10-11

(2025.10.11)
