Overview

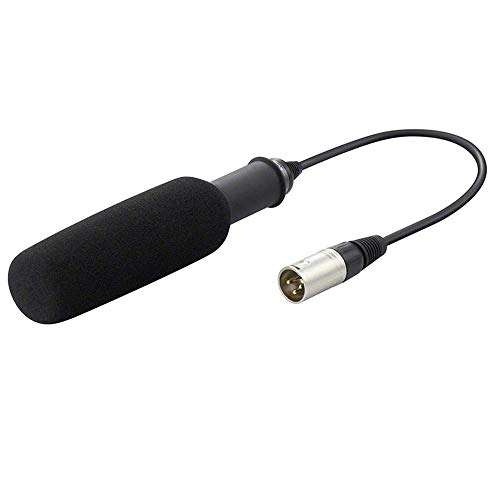

The Sony ECM-XM1 is a shotgun microphone originally designed as a stock microphone for Sony professional camcorders like the HVR-Z7U. This electret condenser microphone features a supercardioid polar pattern and is primarily intended for video production applications including event video, indie film, TV, documentary, and courtroom use. At 2.3 ounces, it offers an ultra-lightweight design suitable for boom operation and onboard camera mounting. The ECM-XM1 represents an improvement over Sony’s previous ECM-NV1 model with a more compact form factor while maintaining similar functionality for professional video applications.

Scientific Validity

\[\Large \text{0.4}\]

The ECM-XM1’s measured performance places it between problematic and transparent levels for professional microphone applications. The signal-to-noise ratio of 76-78 dB A-weighted falls short of the 80 dB transparent level for microphones but still sits well above the 60 dB problematic threshold. Maximum SPL capability of 127 dB (1 kHz, 1% THD) exceeds the 120 dB problematic level but remains well below the 140 dB excellent threshold. The dynamic range of 109-111 dB demonstrates better performance, exceeding transparent level requirements. Frequency response spans 40 Hz to 20 kHz which provides adequate coverage for most video applications. However, as these specifications are manufacturer-provided rather than third-party verified measurements, conservative evaluation adjustments apply to account for potential optimistic specifications.

Technology Level

\[\Large \text{0.4}\]

The ECM-XM1 employs conventional electret condenser technology with a short interference tube design for directional pickup. Sony’s in-house design demonstrates accumulated microphone expertise and represents an improvement over the predecessor ECM-NV1 with enhanced compactness. However, the technology foundation relies on mature electret condenser elements without incorporation of modern digital signal processing, active noise control, or advanced diaphragm materials. The analog-only approach and simple mechanical construction, while reliable, lacks technological sophistication compared to contemporary microphone designs that integrate digital features, AI-powered processing, or advanced acoustic modeling. The straightforward engineering approach results in easily replicable technology without significant competitive advantage duration.

Cost-Performance

\[\Large \text{1.0}\]

At 130 USD, the ECM-XM1 represents competitive cost-performance in the shotgun microphone category. Among verified alternatives with equivalent or better specifications, the Audio Technica AT875R at 169 USD provides similar supercardioid pattern and professional features but at significantly higher cost. Other comparable shotgun microphones including the Sony ECM-VG1 (199 USD), Rode VideoMic Pro (229 USD), and Sennheiser MKE 600 (329 USD) all command premium pricing above the ECM-XM1. With S/N ratio of 76-78 dB A-weighted, frequency response of 40-50 Hz to 20 kHz, and maximum SPL of 127 dB, the ECM-XM1 delivers professional-grade specifications at the lowest verified price point in its category, establishing it as the cheapest equivalent option among current alternatives.

Reliability & Support

\[\Large \text{0.6}\]

The ECM-XM1 benefits from Sony’s established global support infrastructure and professional audio reputation. The simple electret condenser construction with minimal moving parts provides inherent reliability advantages. However, the 6-month warranty period falls significantly below industry standard 2-year coverage. Common compatibility issues arise with the 40-52V phantom power requirement, often necessitating proper adapters when connecting to cameras without adequate phantom power supply. Sony’s professional audio division maintains comprehensive service documentation and established repair networks, contributing to long-term support availability. The company’s extensive track record in professional microphone manufacturing provides confidence in component sourcing and technical support duration.

Rationality of Design Philosophy

\[\Large \text{0.6}\]

Sony’s design approach emphasizes “honest and detailed” sound reproduction with a “straightforward” philosophy focused on capturing audio “as faithfully as possible.” This measurement-focused approach aligns with scientifically rational sound quality improvement principles. The ECM-XM1 demonstrates iterative development progression over the predecessor ECM-NV1 with improved compactness and enhanced signal-to-noise performance. However, the design philosophy shows conservative adherence to conventional analog technology without embracing modern digital signal processing, software-based features, or cost-reduction through advanced manufacturing. The approach prioritizes traditional professional audio engineering over innovative integration of contemporary technologies that could provide enhanced functionality or improved price-performance ratios.

Advice

The Sony ECM-XM1 represents strong value in the professional shotgun microphone category, offering competitive pricing compared to verified alternatives. The ultra-lightweight design makes it suitable for handheld and boom applications where weight constraints are primary concerns. At 130 USD, it provides the most affordable entry point among comparable professional shotgun microphones, making it attractive for budget-conscious videographers seeking professional-grade directional audio capture. Professional videographers should consider the substantial phantom power requirements (40-52V) and ensure compatibility with their recording equipment. The ECM-XM1 stands out as an excellent choice for video production applications including event coverage, documentary work, and indie film projects where cost-effectiveness without compromising core functionality is essential. Users seeking the lowest-cost professional shotgun microphone with verified specifications will find the ECM-XM1 difficult to surpass in value proposition.

References

[1] Sony ECM-XM1 Onboard Mic - Cinema Vision, https://motionpicturerentals.com/product/sony-ecm-xm1-onboard-mic/, accessed November 12, 2025

[2] Sony shotgun microphone ECM-XM1 - Ziusudra, https://www.ziusudra.co/broadcast/wired-microphones/sony-ecm-xm1-microphone, accessed November 12, 2025

[3] Best Low Budget Shotgun Microphones - Acoustic Nature, https://acousticnature.com/journal/best-low-budget-shotgun-mic, accessed November 12, 2025, comparative pricing and specifications
