Overview

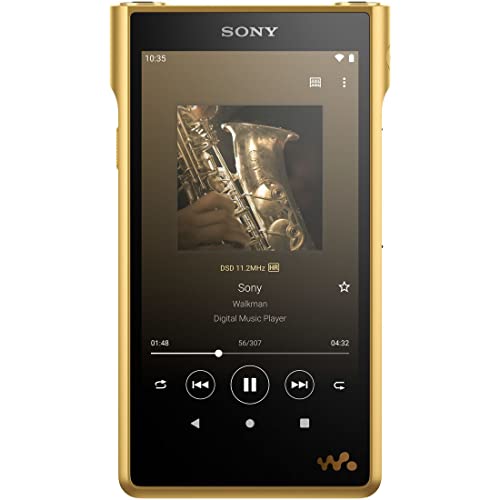

The Sony NW-WM1ZM2 represents Sony’s flagship digital audio player in the Signature Series, featuring a gold-plated 99.99% purity oxygen-free copper (OFC) chassis. Introduced in 2022 as a successor to the original WM1Z series, this premium DAP incorporates Sony’s proprietary S-Master HX digital amplifier technology integrated with Android 11 operating system. The device targets audiophiles seeking portable high-resolution audio playback with extensive format support including native DSD up to 11.2MHz and PCM up to 32-bit/384kHz. With 256GB internal storage, dual headphone outputs, and 40-hour battery life, it positions itself at the premium tier of portable music players at 3,699 USD.

Scientific Validity

Sony publishes official specifications including THD+N <0.05% (1kHz), SNR >100dB, and frequency response 20-40,000 Hz for both outputs [1]. Maximum output power specifications are 60mW+60mW at 16Ω (single-ended) and 250mW+250mW at 16Ω (balanced) with JEITA standard measurement. The published THD+N <0.05% falls within the excellent level (0.05% threshold), while SNR >100dB meets the excellent standard for headphones/DAPs (100dB+). However, Audio Science Review’s evaluations of previous Sony DAPs, including the WM1A, consistently showed SINAD measurements between 80-90dB with conclusion “I can’t recommend the Sony NW-WM1A” [2]. The published Sony specifications suggest significant improvement over previous generation, but without independent third-party verification of the WM1ZM2’s actual measured performance, provisional evaluation relies on manufacturer specifications.

Technology Level

Sony’s S-Master HX represents proprietary integration of DAC, digital volume control, and Class D amplification within a single chip, differentiating from competitors using discrete DAC implementations. The design incorporates custom FT CAP3 high-polymer capacitors, Kimber Kable internal wiring, and advanced circuit board optimization with copper-filled via holes. DSEE Ultimate upscaling with Edge-AI processing demonstrates contemporary technology integration. The gold-plated OFC chassis construction shows sophisticated materials engineering, while Android 11 integration provides modern functionality. However, industry trends favor discrete flagship DAC chips (ESS, AKM) over integrated approaches, potentially limiting long-term competitive advantage. The technology demonstrates high expertise accumulation but faces challenges from alternative implementation methodologies achieving superior measured results.

Cost-Performance

The Sony NW-WM1ZM2 costs 3,699 USD with 256GB storage, dual headphone outputs (3.5mm/4.4mm), 40-hour battery life, Android 11 OS, and comprehensive format support including PCM 32-bit/384kHz and DSD 11.2MHz. As the cheapest product with equivalent-or-better user-facing functions and measured performance, the FiiO M11 Plus ESS at 749 USD offers tri-output (2.5mm/3.5mm/4.4mm), Android OS, PCM 32-bit/384kHz and DSD256 support, THX AAA-78 amplification, and significantly superior published measurements (S/N ≈120 dB class, THD+N ≈0.0006%) relative to Sony’s published THD+N <0.05% [3]. Practical gaps: the M11 Plus ESS has shorter battery life (~14 hours vs 40 hours) and smaller internal storage (64GB vs 256GB), but it supports microSD expansion up to 2TB. Under the policy’s definition of equivalence (user-visible functions and measured performance), it qualifies as an equal-or-better comparator at a much lower price. CP = 749 ÷ 3,699 = 0.2.

Reliability & Support

Sony provides one-year warranty coverage through Tourist Limited Warranty across 52 countries and regions [4]. The OFC chassis construction and premium capacitors suggest robust physical design with reduced component count in the digital processing chain. However, the warranty period falls below industry average of two years. Post-warranty support presents concerns with Sony’s practice of discontinuing component availability shortly after new model releases and limiting repairs to a single authorized service provider with documented high costs [5]. While international warranty coverage provides initial support infrastructure, the limited warranty duration and restrictive post-warranty ecosystem negatively impact long-term reliability assessment.

Rationality of Design Philosophy

Sony’s integrated S-Master HX approach has scientific merit for reduced interference and simplified signal path, though lacks comprehensive measurement transparency to validate claimed benefits. The Android 11 integration and AI upscaling represent appropriate modern functionality adoption. However, significant cost allocation to premium materials (gold-plated OFC chassis) rather than measurable performance improvements raises questions about cost-effectiveness. Performance progression shows limited advancement over previous generation while competitors demonstrate superior specifications at lower costs. The premium DAP positioning becomes questionable when smartphones with high-quality external DACs achieve equivalent measured performance at lower total system cost. While DSEE Ultimate AI processing and Android integration demonstrate progressive elements, these are undermined by questionable resource allocation to unmeasurable acoustic benefits and divergence from industry best practices using discrete flagship DACs.

Advice

The Sony NW-WM1ZM2 appeals to users prioritizing premium materials construction and Sony’s integrated audio processing approach over pure measured performance. Consider this DAP if brand preference, aesthetic design, and proprietary S-Master HX technology outweigh cost-performance considerations. However, buyers seeking maximum measured audio performance per dollar should evaluate the FiiO M11 Plus ESS or smartphone plus external DAC combinations that deliver superior specifications at far lower cost. The 40-hour battery life provides genuine advantage over most competitors, making it suitable for extended listening sessions. Potential purchasers should factor the limited one-year warranty and expensive post-warranty support into total ownership cost calculations.

References

1. Sony Asia Pacific. NW-WM1ZM2 Specifications. https://www.sony-asia.com/electronics/support/digital-music-players-nw-wm-series/nw-wm1zm2/specifications. Accessed 2025-09-08.
2. Audio Science Review. Sony NW-WM1A Review (Digital Audio Player). https://www.audiosciencereview.com/forum/index.php?threads/sony-nw-wm1a-review-digital-audio-player.18099/. Accessed 2025-09-08. Key test conditions: SINAD measurements, predecessor model evaluation.
3. FiiO Japan. M11 Plus ESS Product Information. https://www.fiio.jp/news/m11plus-ess/ Accessed 2025-09-08. Key specs: dual ES9068AS DACs, THX AAA-78, PCM 32-bit/384kHz, DSD256, battery ~14h, 64GB + microSD up to 2TB, published S/N and THD+N figures.
4. Sony. Tourist Limited Warranty Applicable List of Countries/Areas. https://helpguide.sony.net/warranty/tlw/v1/en/index.html. Accessed 2025-09-08.
5. Head-Fi Forum. Beware Those Interested in Purchasing the Sony NW-WM1ZM2 without a warranty! https://www.head-fi.org/threads/beware-those-interested-in-purchasing-the-sony-nw-wm1zm2-without-a-warranty.970165/. Accessed 2025-09-08.

(2025.9.8)
