Overview

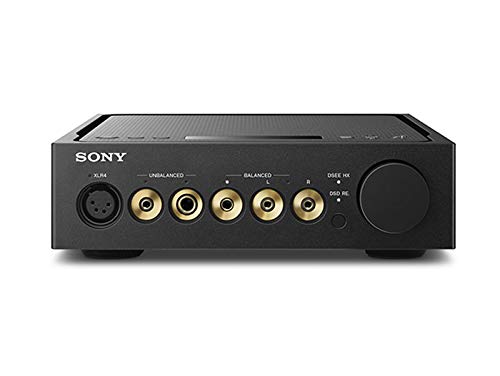

The Sony TA-ZH1ES is Sony’s flagship desktop DAC/headphone amplifier in the Signature Series. It uses the company’s D.A. Hybrid Amplifier Circuit built around S-Master HX digital amplification and supports ultra-high-resolution formats up to 768 kHz/32-bit PCM and 22.4 MHz DSD. Sony’s design targets a “musical” presentation rather than strict neutrality.

Scientific Validity

\[\Large \text{0.7}\]

Independent measurements indicate performance that is modest for this price tier. Discussion and user measurements on Audio Science Review report 1 kHz SINAD ≈ 86 dB for the TA-ZH1ES (line out). Sony specifies output of 1,200 mW + 1,200 mW (32 Ω, 1 kHz, 1%) balanced and 300 mW + 300 mW (32 Ω, 1 kHz, 1%) unbalanced, which is ample for most dynamic and many planar headphones. Overall, the unit’s measured linearity trails state-of-the-art rivals even though raw power and channel matching are solid.

Technology Level

\[\Large \text{0.7}\]

Engineering and build are sophisticated. Sony’s D.A. Hybrid Amplifier Circuit combines its S-Master HX digital stage with an analog section; the chassis uses a rigid FBW structure to suppress vibration, and the unit implements advanced DSP features (DSEE HX modes, DSD Remastering Engine). Format support extends to PCM 768 kHz/32-bit and DSD 22.4 MHz, and the device provides balanced headphone outputs. These are all premium touches, but the measured linear performance does not reach the top of the market.

Cost-Performance

\[\Large \text{0.2}\]

The TA-ZH1ES launched at 2,199 USD and is discontinued; representative used listings in the US currently sit around 1,249 USD. For a functionally equivalent DAC/headphone-amp with balanced outputs and hi-res (PCM 768 kHz/32-bit, DSD512) support that measures markedly better, consider the Topping DX5 II at 299 USD. Its published specifications include THD+N < 0.00006% and SNR 133 dB. Price comparison:

• Reference alternative price: 299 USD
• TA-ZH1ES current used price: 1,249 USD
• Ratio = 299 ÷ 1,249 ≈ 0.239 (23.9%)

This shows equal-or-better measured performance and modern features available for about 24% of the TA-ZH1ES’s current market price, justifying the 0.2 cost-performance score.

Reliability & Support

\[\Large \text{0.6}\]

Sony provides standard global support and software/driver downloads for this model. Build quality and chassis rigidity are high. With the product discontinued, future updates will likely be limited to drivers and existing firmware resources.

Rationality of Design Philosophy

\[\Large \text{0.2}\]

Sony aims for a deliberate “house sound.” While the industrial design and features are premium, the objective performance (e.g., SINAD ≈ 86 dB) indicates a tuning that prioritizes a particular sonic character over transparent reproduction. That philosophy may appeal to some listeners, but it weakens the value proposition for buyers seeking accuracy.

Advice

If you want accurate, measurement-driven reproduction in a single-box DAC/amp, prioritize alternatives that deliver demonstrably lower noise/distortion and balanced outputs at far lower prices (see the DX5 II example above). If you specifically prefer the TA-ZH1ES aesthetic and feature set, be aware you’re paying for build and brand rather than state-of-the-art measured performance.

References (URLs verified)

• Audio Science Review forum thread (discussion & measurements):
  https://www.audiosciencereview.com/forum/index.php?threads/sony-ta-zh1es-a-dac-headphone-amp-with-a-sonic-signature.42102/
• Sony official specifications:
  https://www.sony.com/electronics/support/headphones-headphone-amplifiers/ta-zh1es/specifications
• Sony product page (Signature Series overview):
  https://electronics.sony.com/audio/audio-components/hi-res-audio/p/tazh1es
• Sony downloads/drivers:
  https://www.sony.com/electronics/support/headphones-headphone-amplifiers/ta-zh1es/downloads
• Example used-market price (1,249 USD at time of verification):
  https://www.ebay.com/itm/226741787562
• TOPPING DX5 II official page:
  https://www.toppingaudio.com/product-item/dx5-ii
• TOPPING DX5 II specs/price (retailer):
  https://shenzhenaudio.com/products/topping-dx5-ii-dual-es9039q2m-desktop-dac-headphone-amplifier
  https://apos.audio/products/topping-dx5-ii-dac-amp
• News coverage (DX5 II 299 USD & key features):
  https://www.techradar.com/audio/hi-fi/this-bluetooth-dac-and-headphone-amp-with-cool-vu-meter-looks-like-super-luxe-audio-upgrade-but-its-actually-stunningly-well-priced

(2025.8.13)
