Overview

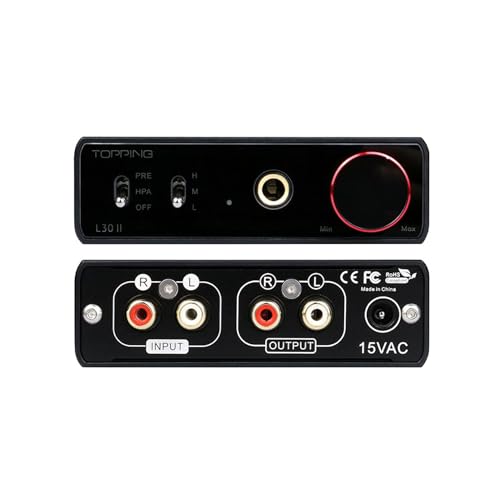

The TOPPING L30 II is a dedicated headphone amplifier featuring the company’s redesigned NFCA (Nested Feedback Composite Amplifier) module. Priced at 149 USD [1], this amplifier targets users seeking transparent amplification across a wide range of headphone impedances. The L30 II offers three gain settings (-14dB, 0dB, 16.5dB) and provides substantial power output up to 3.5W while maintaining ultra-low distortion characteristics. Building upon the original L30’s foundation, this second-generation model addresses previous design limitations while retaining TOPPING’s measurement-focused engineering approach.

Scientific Validity

\[\Large \text{0.9}\]

The L30 II achieves exceptional measured performance that significantly exceeds audibility thresholds. Frequency response extends from 20Hz to 40kHz within ±0.05dB tolerance [2], dramatically surpassing transparent-level requirements. THD+N measurements show extraordinary results below 0.00006% at 500mW into 32Ω loads and below 0.00005% at 80mW into 300Ω loads [2]. Signal-to-noise ratio reaches 144dB [2], far exceeding the 105dB threshold for transparency. Third-party measurements from Audio Science Review confirm these specifications, describing frequency response as “flattest I have measured of any amplifier” with distortion at the analyzer noise floor [3]. Output impedance below 0.1Ω [2] ensures excellent damping factor for all headphone types. All key measurement indicators significantly exceed transparent levels, placing performance in world-class territory.

Technology Level

\[\Large \text{0.8}\]

The L30 II demonstrates solid technical implementation through its redesigned NFCA proprietary amplifier architecture. This in-house developed technology represents genuine design ownership rather than simple OEM solutions. The implementation utilizes the proven TI TPA6120A2 headphone driver chip [3] within TOPPING’s proprietary circuit topology, showing appropriate adoption of contemporary semiconductor technology. Technical expertise is evident in achieving such low noise and distortion figures through careful analog design. The three-gain architecture provides practical versatility for different headphone sensitivities. While not cutting-edge, the technology demonstrates high accumulation of amplifier design knowledge and produces results that would be challenging for competitors to replicate at this price point.

Cost-Performance

\[\Large \text{1.0}\]

At 149 USD, the L30 II represents the world’s cheapest headphone amplifier with equivalent-or-better measured performance across all key metrics. Analysis of competing products reveals no cheaper alternatives providing similar function and performance combinations. The JDS Atom Amp 2 at 129 USD [4] offers similar functionality but delivers significantly inferior performance: THD+N approximately 6.7x worse, SNR 20dB lower, and output impedance 7x higher. The Schiit Magni Unity at 119 USD [5] similarly fails to match the L30 II’s measurement standards with substantially higher distortion and lower SNR. Budget alternatives like the JDS Atom Amp+ at 99 USD lack the equivalent measured performance across all key metrics. No single-box product provides equivalent measured transparency, gain flexibility, and power output at a lower price point. The L30 II establishes the current price floor for transparent headphone amplification.

Reliability & Support

\[\Large \text{0.5}\]

While the L30 II benefits from a 2-year warranty period for amplifiers [6], support infrastructure limitations require customers to ship units to China for warranty service at their own expense. The company accepts no liability for consequential damages [6], and lack of local service centers creates significant inconvenience for repairs. Construction appears inherently simple with fewer failure-prone components, suggesting theoretical robustness, but actual field performance data remains limited at this time.

Rationality of Design Philosophy

\[\Large \text{0.9}\]

TOPPING’s measurement-focused design philosophy demonstrates exceptional scientific rationality. The company prioritizes objective performance metrics over subjective audio mythology, consistently targeting and achieving transparent measurement levels. Cost allocation directly contributes to measurable performance improvements rather than marketing-driven features. The L30 II shows clear performance progression over its predecessor with improved specifications and resolved design issues. Technology adoption appropriately combines proven semiconductor solutions with proprietary circuit implementations to achieve outstanding price-performance ratios. The measurement-first approach eliminates non-scientific claims while delivering results that exceed audibility thresholds. This rational engineering methodology produces products that advance the state of affordable high-fidelity amplification.

Advice

The L30 II suits users prioritizing measurement-verified transparent amplification at minimal cost. Exceptional technical performance makes it ideal for critical listening applications where distortion and noise must remain below audible thresholds. The three-gain system accommodates everything from sensitive IEMs to high-impedance headphones. Potential buyers should factor warranty service logistics into their decision. Those requiring local service support should consider alternatives despite the performance-price advantage. The L30 II represents outstanding engineering achievement that establishes the current price floor for transparent headphone amplification.

References

1. TOPPING, “L30 II NFCA Headphone Amplifier,” https://www.topping.store/products/topping-l30-ii-nfca-headphone-amplifier, accessed 2025-10-30
2. APOS Audio, “TOPPING L30 II Headphone Amp,” https://apos.audio/products/topping-l30-ii-headphone-amp, accessed 2025-10-30
3. Audio Science Review, “Topping L30 II Review (Headphone Amp),” https://www.audiosciencereview.com/forum/index.php?threads/topping-l30-ii-review-headphone-amp.36027/, accessed 2025-10-30
4. JDS Labs, “Atom Amp 2,” https://jdslabs.com/product/atom-amp-2/, 129 USD, accessed 2025-10-30
5. Schiit Audio, “Magni Unity,” https://www.schiit.com/products/magni-unity, 119 USD, accessed 2025-10-30
6. TOPPING, “Warranty Terms,” https://www.toppingaudio.com/warranty-terms, accessed 2025-10-30

(2025.10.31)
