Overview

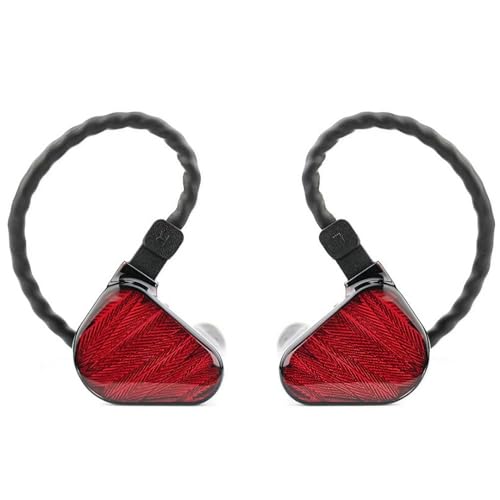

The TRUTHEAR x Crinacle ZERO:RED represents a measurement-focused collaboration between TRUTHEAR and audiophile reviewer Crinacle, targeting reference-quality performance through scientific methodology. This dual dynamic driver IEM (10mm + 7.8mm configuration) implements Crinacle’s IEF_Neutral target curve above 1kHz with bass characteristics matching public preference curves. The design utilizes DLP 3D-printed medical-grade resin shells, LCP composite diaphragms, and becomes the first IEM validated using industry-standard B&K 5128 measurement system. Positioned at 54.99 USD, it serves as an entry-level reference benchmark with advanced crossover optimization achieving significantly reduced distortion compared to its predecessor.

Scientific Validity

\[\Large \text{0.7}\]

Third-party measurements from Audio Science Review demonstrate THD performance described as “incredibly low even at 114 dB SPL” with frequency response showing “very good match to target” compliance [1]. While specific numeric THD values aren’t published, ASR’s assessment indicates performance well below the excellent threshold of 0.05% at normal listening levels. Frequency response deviation appears within ±3dB from target curves based on measurement descriptions. B&K 5128 validation provides additional measurement credibility as industry-leading standard.

Technology Level

\[\Large \text{0.8}\]

Strong technology implementation features proprietary hybrid frequency division combining acoustic nozzle filtering with RC electronic frequency division, representing genuine engineering innovation. Dual dynamic driver configuration (10mm + 7.8mm) with optimized crossover design reflects recent technological advancement in IEM multi-driver systems. DLP 3D printing from HeyGears enables precision acoustic structures impossible with traditional manufacturing. While building on established premium materials including LCP liquid-crystal polymer diaphragms and N52 Rubidium magnets, the core implementation demonstrates cutting-edge approach to crossover optimization and B&K 5128 measurement validation methodology.

Cost-Performance

\[\Large \text{1.0}\]

This site evaluates based solely on functionality and measured performance values, without considering driver types or configurations. The ZERO:RED’s current market price is 54.99 USD. ASR measurements demonstrate ZERO:RED’s THD performance described as “incredibly low even at 114 dB SPL” with frequency response showing “very good match to target” compliance [1]. A search for cheaper IEMs with equivalent-or-better measured performance (both THD and frequency response) found no products with confirmed ASR measurement data that match or exceed ZERO:RED’s THD performance level (“incredibly low”) at lower prices. For example, the 7Hz Salnotes Zero (15-25 USD) shows “excellent” target matching in frequency response compliance but demonstrates “impressively low” distortion in THD assessment, which is inferior to ZERO:RED’s “incredibly low” distortion [2]. Therefore, ZERO:RED represents the world’s cheapest product with equivalent-or-better functions and measured performance, resulting in CP=1.0.

Reliability & Support

\[\Large \text{0.5}\]

Standard reliability profile with 1-year manufacturer warranty covering manufacturing defects, though accessories excluded from coverage. Global support available through official TRUTHEAR website contact system and Discord community channels. No widespread reliability issues documented through 2025-2026, indicating adequate build quality. Known limitations include fingerprint-prone shells requiring regular cleaning and potential treble resolution constraints reported by some users. Repair services available through manufacturer program with 7-day warranty claim window for defects. Limited warranty period balanced by responsive support infrastructure and generally positive build quality track record.

Rationality of Design Philosophy

\[\Large \text{1.0}\]

Exemplary rational design philosophy demonstrates complete measurement-focused scientific approach utilizing B&K 5128 HATS validation system throughout development process. Cost allocation prioritizes measurable performance enhancement through DLP 3D printing precision manufacturing and dual-driver crossover optimization rather than marketing-driven aesthetics. Technical claims including THD specifications, frequency response ranges, and impedance values are scientifically verifiable through standardized measurement protocols. Evolution from original ZERO model shows clear refinement with measurable improvements in distortion performance and frequency response optimization. Collaboration with measurement expert Crinacle indicates commitment to objective rather than subjective design decisions, eliminating audio mythology in favor of scientific target curve implementation.

Advice

The ZERO:RED suits users prioritizing measurement-validated reference tuning over subjective preferences, particularly those seeking B&K 5128-validated frequency response accuracy and transparent-level THD performance. Its scientific approach appeals to measurement-focused enthusiasts requiring transparent distortion performance and target curve compliance. As ZERO:RED represents the world’s cheapest product with equivalent-or-better measured performance, it is the optimal choice for users prioritizing cost-performance. Consider the Truthear Hexa for superior isolation at modest price increase. The included 10Ω impedance adapter enables bass tuning customization, though users should expect muddy mid-frequency response when engaged.

References

[1] Audio Science Review - TRUTHEAR x Crinacle ZERO:RED IEM Review - https://www.audiosciencereview.com/forum/index.php?threads/truthear-x-crinacle-zero-red-iem-review.44865/ - Accessed 2026-01-21 - Standard ASR IEM measurement rig

[2] Audio Science Review - 7Hz Salnotes Zero IEM Review - https://www.audiosciencereview.com/forum/index.php?threads/7hz-salnotes-zero-iem-review.50226/ - Accessed 2026-01-21 - Standard ASR IEM measurement rig

[3] TRUTHEAR Official Product Page - https://truthear.com/products/zero-red - Accessed 2026-01-21 - Official specifications and features

(2026.1.21)
