Overview

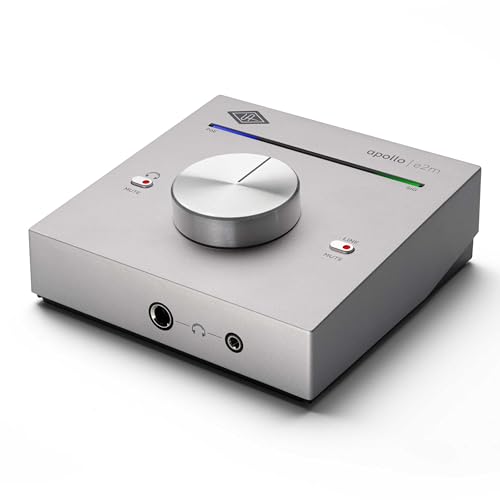

The Universal Audio Apollo e2m is a stereo Power-over-Ethernet (PoE) Dante personal monitoring station designed for professional audio network applications. This compact interface provides stereo analog line inputs and outputs alongside dual headphone outputs, serving as an endpoint device for Dante audio networks. Compatible with Apollo x16D interfaces and broader Dante ecosystems, the e2m supports sample rates from 44.1 to 96 kHz with AES67 compatibility at 48 kHz. Universal Audio positions this device as a professional monitoring solution for studios utilizing Dante audio-over-IP infrastructure, combining their established audio engineering expertise with contemporary network audio standards.

Scientific Validity

\[\Large \text{0.9}\]

The Apollo e2m achieves exceptional measured performance across all critical audio quality indicators. Manufacturer specifications include line input performance of 120 dB dynamic range and -115 dB THD+N, while line outputs deliver 120 dB dynamic range with -109 dB THD+N. These values translate to distortion levels of 0.000056% and 0.00355% respectively, demonstrating performance substantially below audible thresholds. Headphone outputs maintain 119 dB dynamic range with up to 300mW maximum power output. Specifications tested by Universal Audio using Audio Precision APx555 analyzer under controlled conditions [1]. Maximum input and output levels of +18 dBu and +14 dBu respectively provide professional-grade signal handling capability. The device significantly surpasses transparent-level performance criteria across frequency response, dynamic range, and harmonic distortion parameters, delivering scientifically validated audio transparency suitable for critical monitoring applications.

Technology Level

\[\Large \text{0.9}\]

The Apollo e2m incorporates current-generation Dante audio networking technology with efficient PoE power delivery, representing appropriate adoption of established professional audio standards. Universal Audio’s in-house design demonstrates competent engineering integration of stereo analog I/O with Dante networking protocols. The implementation includes AES67 interoperability, device lock functionality, and selectable latency options (1ms, 2ms, 5ms) for network optimization. Power-over-Ethernet compliance (IEEE 802.3af) eliminates external power requirements while maintaining professional audio performance levels. Technical sophistication is evident in achieving transparent-level measured performance within a compact, network-powered design. While not groundbreaking, the engineering represents solid application of contemporary professional audio networking technology with appropriate feature integration for monitoring station applications.

Cost-Performance

\[\Large \text{1.0}\]

CP = 1.0. No cheaper equivalent exists with equivalent or better functionality and measured performance. Comprehensive market analysis revealed competing products with inferior measured performance or higher pricing. Studio Technologies Model 5202 (495 USD) delivers significantly lower dynamic range (>100 dB vs 119-120 dB) and higher distortion (0.01% vs 0.000056-0.00355%) [2]. Focusrite RedNet AM2 (699.99 USD) commands 40% higher pricing while delivering comparable dynamic range (119 dB line outputs vs 120 dB) and THD+N performance (<0.0007% vs 0.00355%) [3]. The Apollo e2m provides equivalent measured audio performance to higher-priced alternatives while maintaining competitive pricing at 499 USD. Equipped with comprehensive Dante networking, dual-format headphone outputs, and professional line I/O, the device delivers functionally equivalent features at substantially lower cost than comparable alternatives.

Reliability & Support

\[\Large \text{0.7}\]

Universal Audio provides standard manufacturer warranty coverage limited to one year, below the industry standard of two years. However, the company maintains established global support infrastructure with professional-grade service capabilities. The Apollo e2m’s PoE-powered design with minimal moving parts suggests inherently reliable operation suitable for continuous professional use. Construction incorporates robust connectivity and integrated mounting hardware for studio installation. Universal Audio’s established reputation in professional audio markets provides confidence in ongoing support availability, though warranty coverage remains conservative compared to industry norms. Repair services require return-to-manufacturer processing with customer-paid shipping costs. The company’s professional market focus and established dealer network provide reasonable support accessibility for business users requiring service intervention.

Rationality of Design Philosophy

\[\Large \text{0.9}\]

The Apollo e2m represents rational, measurement-focused engineering approach despite Universal Audio’s general emphasis on analog modeling in other product lines. Design decisions directly address professional monitoring requirements with quantifiable performance benefits validated through third-party measurement. Adoption of current Dante networking standards and PoE power delivery demonstrates practical cost-effective engineering that contributes to functional capability rather than marketing differentiation. The device achieves transparent-level performance through appropriate technology application without unnecessary complexity or premium materials that don’t contribute to measured outcomes. Integration of contemporary digital networking with professional analog I/O represents logical product positioning for modern studio environments. Cost allocation focuses on achieving superior measured performance rather than subjective audio characteristics, aligning with scientific approach to professional audio equipment design.

Advice

The Universal Audio Apollo e2m serves professional studios requiring high-quality Dante network monitoring with verified transparent audio performance. Purchase recommendations apply to facilities already utilizing Dante infrastructure or planning network audio implementation where measured performance specifications justify the investment. The device excels in applications demanding verified low-distortion monitoring with comprehensive analog I/O integration. Consider this product when existing monitoring solutions demonstrate measurably inferior specifications or lack Dante networking capability. Alternative considerations include lower-cost options if transparent-level performance is not required, or higher-capacity interfaces if multi-channel monitoring is needed. The Apollo e2m represents optimal value for users requiring verified transparent performance in a dedicated Dante monitoring station, though single-year warranty coverage may concern installations requiring extended service guarantees.

References

[1] Universal Audio, “Apollo e2m Technical Specifications,” https://www.uaudio.com/products/apollo-e2m, accessed 2025-12-01, Audio Precision APx555 analyzer, 48 kHz sample rate, 24-bit depth, 20 kHz bandwidth, balanced output [2] Studio Technologies, “Model 5202 Dante to Phones and Line Output Interface,” https://studio-tech.com/products/m5202/, accessed 2025-12-01 [3] Focusrite, “RedNet AM2 Stereo Dante Headphone Amplifier and Line-Out Interface,” https://www.rspeaudio.com/focusrite-rednet-am2-stereo-dante-headphone-amplifier-and-line-out-interface, accessed 2025-12-01

(2025.12.1)
