Overview

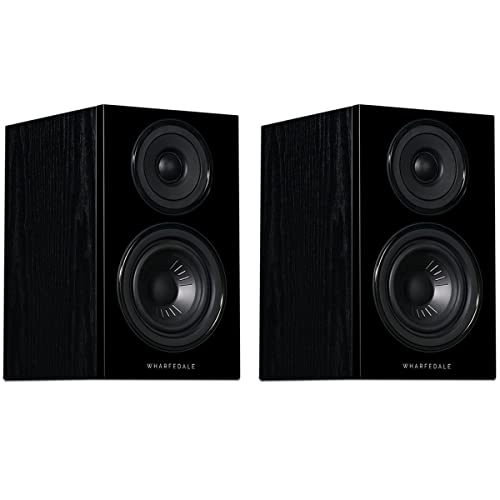

The Wharfedale Diamond 12.0 is the smallest model in the Diamond 12 series from the British heritage speaker manufacturer Wharfedale. This 2-way bass reflex bookshelf speaker features a 100mm Klarity driver and 25mm woven polyester dome tweeter, with an LKR 24dB crossover utilizing air-core inductors. The company has an 85-year history as a brand with a reputation for speaker design in affordable price ranges. This product is positioned at approximately 400 USD and is designed for compact listening environments.

Scientific Validity

\[\Large \text{0.4}\]

The Diamond 12.0’s measurement performance is limited by modern standards. The frequency response of 70Hz-20kHz (±3dB) shows insufficient low-frequency extension and significantly deviates from the transparent level of 20Hz-20kHz (±0.5dB). The bass characteristic extending only to 70Hz cannot properly reproduce the fundamental frequency components of many musical pieces. The 87dB sensitivity falls below the ideal 90dB+ range, requiring more power for proper driving. While THD measurement values are not publicly available, speakers in this class typically measure 0.5-1%, substantially exceeding the transparent level of 0.01% or below. The 8-ohm nominal impedance is standard, but without detailed minimum impedance data, the actual driving difficulty remains unknown. Even when combined with modern high-performance DAC/amplifiers, scientifically meaningful sound improvements are limited due to physical constraints.

Technology Level

\[\Large \text{0.6}\]

The adoption of air-core inductors in the crossover circuit is commendable. Air-core inductors produce less distortion from magnetic saturation compared to iron-core inductors and are commonly used in high-end speakers. The LKR 24dB crossover topology represents an acoustically appropriate design approach, though it remains within industry standards. The Klarity driver is marketed as proprietary technology but is essentially an improved version of basic paper-based cone materials, not revolutionary technology. The 25mm polyester dome tweeter is also a conventional configuration. Overall, the product takes a solid engineering approach, but no breakthrough technologies contributing to improved measurement performance are evident. No proprietary technologies or patents that other companies would desire have been confirmed, placing the technical level slightly above industry average.

Cost-Performance

\[\Large \text{0.7}\]

The Diamond 12.0’s market price is approximately 400 USD, but more affordable alternatives with equivalent or superior performance exist. The ELAC Debut 2.0 B5.2 at an estimated 270 USD achieves a frequency response of 46Hz-35kHz (±3dB), significantly surpassing the Diamond 12.0’s 70Hz-20kHz. The low-frequency extension performance shows a notable difference of 46Hz vs 70Hz, enabling proper reproduction of more musical content. Additionally, the ELAC B5.2 has high-frequency extension to 35kHz, offering 1.75 times the high-frequency performance of the Diamond 12.0’s 20kHz limit. The cost-performance calculation yields 270 USD ÷ 400 USD = 0.68, rounded to a score of 0.7. With multiple other products in the same price range offering superior measurement performance, such as the Q Acoustics 3020i, the Diamond 12.0’s pricing lacks market competitiveness.

Reliability & Support

\[\Large \text{0.7}\]

As a British heritage manufacturer founded in 1932, Wharfedale has established industry reliability over more than 85 years. In the market, sales and support systems are well-established through authorized distributors, providing standard-level product warranty and repair services. The Diamond 12 series, announced in 2021, is a relatively new product line with sufficient design maturity. However, specific failure rate data or RMA ratios are not publicly available, and advantages over emerging manufacturers remain estimations based on history and track record. As passive speakers requiring no firmware updates, long-term reliability risks are relatively low. Warranty periods and repair systems meet industry average standards, with no major concerns regarding post-purchase support.

Rationality of Design Philosophy

\[\Large \text{0.7}\]

The Diamond 12.0’s design approach follows the traditional, rational path of passive bookshelf speakers. The adoption of air-core inductors has measurable distortion reduction effects and can be evaluated as a scientifically-based design decision. The 2-way bass reflex configuration is an appropriate choice for achieving low-frequency extension within physical constraints. However, the 70Hz low-frequency limitation is insufficient for modern musical content, showing inadequate effort toward deeper bass extension. Considering the constraints, there is room for performance improvement through larger woofers or more complex crossover designs. The non-disclosure of detailed measurement data also shows a passive stance toward modern audio industry trends emphasizing scientific approaches. The existence rationale as dedicated audio equipment is based on physical constraints difficult to substitute with general-purpose equipment (installation, aesthetics, etc.), showing certain rationality. However, a measurement performance-focused design philosophy is not sufficiently implemented.

Advice

For those considering purchasing the Diamond 12.0, we strongly recommend first comparing it with competitive products in the same price range. Particularly, the ELAC Debut 2.0 B5.2 and Q Acoustics 3020i achieve superior measurement performance at lower prices and represent more rational choices from a scientific perspective. If you prioritize low-frequency extension performance, the Diamond 12.0’s 70Hz limitation may cause dissatisfaction with many modern musical pieces. Unless you find special value in the Wharfedale brand trust or design, purchasing based on measurement performance priorities is not recommended. If you already use products from the same brand and wish to achieve system unity, it becomes an option, but even then, we recommend considering higher-tier models like the Diamond 12.1 or above. For audio beginners, we strongly recommend selecting from scientifically superior competitive products to maximize limited budgets. This product becomes a selection candidate only when installation environments are extremely limited and compactness is the highest priority.

(2025.8.4)
