Overview

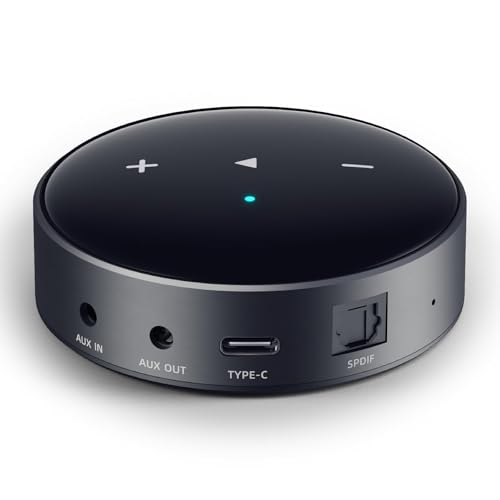

The WiiM Mini is a palm-sized, puck-style Wi-Fi streamer (≈2.7 × 2.7 × 0.9 inches) that adds modern streaming to legacy systems via optical S/PDIF and 3.5 mm analog I/O. It supports hi-res playback up to 24-bit/192 kHz over Wi-Fi, plus AirPlay 2, Spotify Connect, and app control. Design is minimalist with capacitive touch controls and dual-band Wi-Fi/Bluetooth. [2][3][8]

Scientific Validity

\[\Large \text{0.7}\]

Independent lab data shows the Mini’s optical output is bit-accurate with a measured average jitter ≈730 ps (up to 1.6 ns on music), which is far below audibility in normal use. By contrast, the analog output is effectively 16-bit-limited: with 24-bit test data, the 1 kHz tone at −90 dBFS vanishes; harmonic distortion at 1 kHz full-scale shows 2nd harmonic −90 dB (≈0.003%). Manufacturer specs for the analog line out list THD+N 0.009%, SNR 102 dB, DR 96 dB, consistent with sub-transparent analog performance. Net: transparent via optical; merely “OK” via analog. [1][2]

Technology Level

\[\Large \text{0.6}\]

The implementation relies on proven building blocks (TI/Burr-Brown PCM5121 DAC for the analog path; standard dual-band Wi-Fi; BT 5.2). Protocol coverage is broad, but there’s little proprietary hardware innovation beyond competent integration. It remains a solid, off-the-shelf-centric design rather than a technology showcase. [1][3]

Cost-Performance

\[\Large \text{1.0}\]

Market price is 89 USD. To qualify as an equal-or-better alternative, a cheaper product must match the Mini’s user-visible functions (notably 24-bit/192 kHz bit-perfect optical output) and not fall behind in core measured performance. The often-cited Arylic S10+ is cheaper but its digital outputs are limited to 44.1 kHz/16-bit, so it is not equivalent. The Andover Songbird HR supports 24/192 digital output but costs well above the Mini. As no cheaper equal-or-better option could be identified, CP is set to 1.0. [4][5][6]

Reliability & Support

\[\Large \text{0.6}\]

WiiM provides frequent firmware updates with staged automatic rollouts and public release notes. Documentation and app support are comprehensive. Community and help-center articles also acknowledge Wi-Fi stability tuning on mesh networks (e.g., disabling roaming), indicating active mitigation guidance. Long-term RMA/MTBF data remains limited, so the score stays around average. [7][8][9]

Rationality of Design Philosophy

\[\Large \text{0.5}\]

The product philosophy—prioritizing a transparent digital path while keeping costs down—makes sense scientifically. However, the analog stage’s 16-bit-like performance and lack of Ethernet reduce universality versus more open/robust streamers. It’s rational if you plan to use an external DAC over optical; less so if you need high-performance analog out. [1][2]

Advice

Use the Mini primarily as a network-to-S/PDIF bridge into an external DAC for effectively transparent reproduction. If you need strong analog performance, step up to products with demonstrably higher SNR/THD+N on their line outs. Ensure solid Wi-Fi coverage; on mesh systems, follow WiiM’s guidance (e.g., adjust roaming/5 GHz settings) if instability appears. [2][8][9]

References

[1] Stereophile, “WiiM Mini … Measurements,” https://www.stereophile.com/content/wiim-mini-streaming-da-preamplifier-measurements, 2022-07-22. Key results: bit-accurate TosLink; jitter ≈730 ps avg (up to 1.6 ns); analog path effectively 16-bit; 2nd harmonic −90 dB (≈0.003%).

[2] WiiM Mini User Manual (v1.8/v1.9), specifications: line-out THD+N 0.009%, SNR 102 dB, DR 96 dB; optical up to 24-bit/192 kHz. https://www.wiimhome.com/langPdf/en/WiiM%20Mini%20UM.pdf (accessed 2025-08-19).

[3] WiiM Mini product overview/specs, https://www.wiimhome.com/wiimmini/specs (accessed 2025-08-19).

[4] Arylic S10+ product page, confirms digital output 44.1 kHz/16-bit limit (not equivalent to 24/192), https://www.arylic.com/products/s10-wireless-preamplifier (accessed 2025-08-19).

[5] Andover Audio Songbird HR, 24/192-capable digital output; market price well above WiiM Mini, https://www.andoveraudio.com/products/songbird-hi-res-internet-audio-streaming-device (accessed 2025-08-19).

[6] Amazon listing, Andover Songbird HR (24/192 digital out), https://www.amazon.com/Andover-Audio-Songbird-Internet-Streamer/dp/B0BJMXDXWF (accessed 2025-08-19).

[7] WiiM Mini Firmware Release Notes (staged rollouts), https://faq.wiimhome.com/en/support/solutions/articles/72000584412-wiim-mini-firmware-release-notes (accessed 2025-08-19).

[8] WiiM help article: Wi-Fi signal/mesh network tips, https://faq.wiimhome.com/en/support/solutions/articles/72000641988-how-to-solve-weak-wi-fi-signal-issues-with-your-wiim-device (accessed 2025-08-19).

[9] WiiM Mini overview page, https://wiimhome.com/Overview.html (accessed 2025-08-19).

(2025.8.20)
