Overview

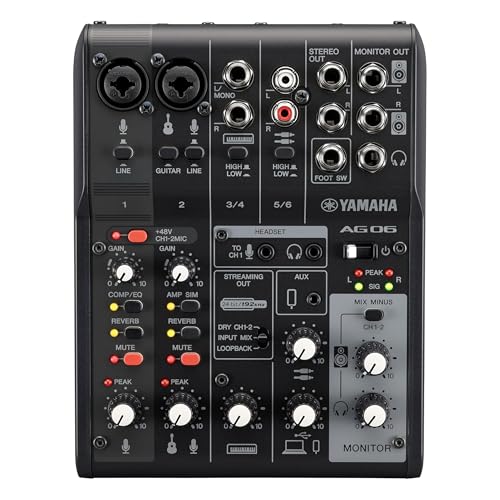

The Yamaha AG06MK2 is a 6-channel USB mixer and audio interface designed for live streaming, podcasting, and content creation. This compact device combines traditional mixing functionality with modern digital connectivity, featuring two phantom-powered XLR inputs, stereo line inputs, smartphone connectivity via TRRS jack, and USB-C connectivity supporting 24-bit/192kHz audio resolution. The unit includes built-in DSP effects processing with zero-latency monitoring, loopback functionality for streaming applications, and comes bundled with professional software including Cubase AI and WaveLab Cast.

Scientific Validity

\[\Large \text{0.6}\]

Measured performance demonstrates mixed results across key audio specifications. Frequency response of +0.5 dB/−1.5 dB (20 Hz to 48 kHz @ 192 kHz sampling) falls between transparent and problematic levels according to measurement criteria. THD+N performance varies significantly by signal level: excellent at +4 dBu (0.01% meets transparent criteria) but moderate at 0 dBu (0.05% between transparent and problematic thresholds). Crosstalk performance at -80 dB significantly exceeds the transparent level requirement of -70 dB. Noise performance shows good results with equivalent input noise of -128 dBu and residual output noise of -103 dBu, indicating low noise floor characteristics. However, complete S/N ratio and dynamic range measurements remain unavailable, preventing full transparency assessment. Conservative 0.6 scoring reflects the mixed performance profile: excellent crosstalk and good noise characteristics balanced against moderate THD+N at typical operating levels and incomplete measurement transparency from manufacturer specifications lacking independent third-party verification [1].

Technology Level

\[\Large \text{0.8}\]

Demonstrates good technical implementation with proprietary DSP technology and contemporary connectivity standards. Yamaha’s proprietary DSP chip handles real-time COMP/EQ, SPX Reverb, and Amp Simulator functions without computer latency, representing valuable technological integration. In-house design leverages company’s established audio expertise and signal processing capabilities. USB Audio Class 2.0 with USB-C connectivity and 24-bit/192kHz specification represent current industry standards. DSP-integrated interface design provides competitive advantage that other manufacturers actively pursue, particularly for streaming applications requiring real-time processing. Technology integration appropriately combines digital signal processing, USB connectivity, and analog circuitry for intended applications.

Cost-Performance

\[\Large \text{1.0}\]

No equivalent-or-better products identified at lower prices when considering the complete feature set. The AG06MK2’s combination of 6 input channels (2 XLR/combo + 2 stereo line + USB + smartphone), dedicated smartphone connectivity via TRRS jack, comprehensive physical mixer controls, real-time DSP effects, and loopback functionality represents a unique feature package. Comparison analysis with potential alternatives reveals functional gaps: MAONO AM100 Podcast Bundle (229.99 USD) provides only 4 channels and 16-bit audio versus AG06MK2’s 6 channels and 24-bit capability [2]. Zoom PodTrak P4 (149.99 USD) focuses on recording rather than mixing/interface functions with only 4 XLR inputs and 16-bit/44.1kHz specification [3]. FIFINE SC3 (approximately 70 USD) offers basic gaming mixer functionality with single XLR input and 16-bit/48kHz specification, lacking equivalent channel count and audio resolution [4]. Steinberg UR22C (133-195 USD) provides superior audio specifications but lacks essential functions including fewer input channels (2 vs 6 total), no smartphone connectivity, and limited physical controls. Equipped with 6-channel mixing capabilities, smartphone connectivity via TRRS jack, and 24-bit/192kHz audio resolution that are equivalent-or-better in functionality and connectivity. Current market price of 239.99 USD positions the AG06MK2 as the cheapest option among products offering its specific combination of multi-channel mixing, smartphone integration, and comprehensive connectivity options.

Reliability & Support

\[\Large \text{0.8}\]

Good support infrastructure and construction design contribute to above-average reliability assessment. USB-powered design with minimal moving parts and solid-state electronics reduces potential failure points through simple architecture. Yamaha provides global support system with established track record for audio product reliability and ongoing driver/firmware update support through AG Controller software. Regular software updates and contemporary USB-C connectivity ensure compatibility with current systems. Standard manufacturer warranty periods with reasonable support costs expected. Company’s long-standing presence in professional audio market provides confidence in parts availability and technical support duration.

Rationality of Design Philosophy

\[\Large \text{0.8}\]

Demonstrates rational design approach with scientific basis and appropriate technology integration. Yamaha follows “natural sound” philosophy emphasizing measurement-based design and accurate signal reproduction with optional user-controlled processing. Features directly contribute to audio functionality and performance, with DSP integration providing measurable value for streaming applications. Effective integration of mixer, interface, and DSP functionality addresses specific streaming and content creation needs better than general-purpose alternatives. Appropriate use of DSP technology enables latency-free monitoring while modern USB connectivity adopts contemporary audio standards. No scientifically questionable claims identified, with design representing practical evolution from previous AG series incorporating improved connectivity and processing capabilities.

Advice

The AG06MK2 serves content creators and streamers requiring comprehensive connectivity and real-time processing capabilities. Purchase recommended for users needing smartphone integration, multiple input types, and built-in effects processing in a single unit. Consider alternatives if transparent audio performance is the primary requirement, as measured specifications indicate moderate rather than exceptional fidelity. The unique feature combination justifies the price point for intended applications, but users seeking pure audio interface functionality might find better value in dedicated products with superior measured performance. Ensure compatibility with intended streaming platforms and verify software bundle relevance to workflow requirements before purchase.

References

[1] Yamaha AG03MK2 AG06MK2 General Specifications, https://manual.yamaha.com/pa/live_streaming/ag03_06/en-US/8429860875.html, accessed on 2025-10-15, conditions: 0 dBu and +4 dBu test levels, 20 Hz to 20 kHz bandwidth

[2] MAONO Maonocaster AM100 Audio Interface & Podcast Equipment, https://www.maono.com/products/maonocaster-am100-audio-interface-podcast-equipment, accessed on 2025-10-15, specifications: 4 channels, 16-bit audio, smartphone connectivity

[3] Zoom PodTrak P4 Podcast Recorder, https://zoomcorp.com/en/us/podtrak-recorders/podcast-recorders/podtrak-p4/, accessed on 2025-10-15, specifications: 4 XLR inputs, 16-bit/44.1kHz recording

[4] FIFINE Gaming USB Audio Mixer SC3, https://fifinemicrophone.com/products/fifine-ampligame-sc3, accessed on 2025-10-15, specifications: XLR input, 16-bit/48kHz, gaming mixer functionality

(2025.10.16)
