Overview

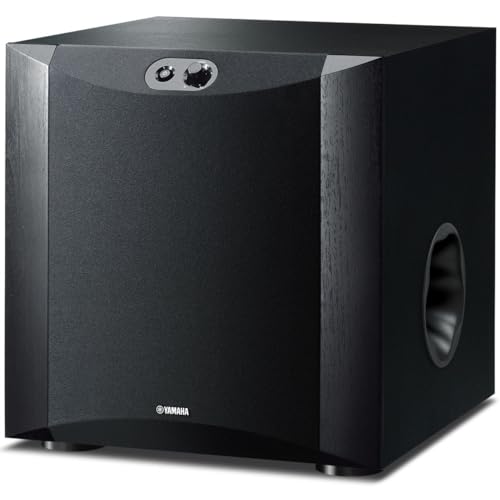

The Yamaha NS-SW300 is a front-firing 10-inch (25 cm) powered subwoofer using a PWM digital-drive high-efficiency (Class D) amplifier with a dual-feedback circuit. It features Yamaha’s Twisted Flare Port and Advanced YST II. Dimensions are approximately 13-3/4″ × 14-3/8″ × 16-1/2″ and weight is 39.7 lb. The official frequency response is 20–160 Hz, standby power is 0.3 W[1][2][3].

Scientific Validity

\[\Large \text{0.5}\]

Public data are mostly manufacturer specs: 20–160 Hz frequency response and 250 W output. A retailer/manufacturer spec listing clarifies the power rating as 250 W at 100 Hz, 5 Ω, 10% THD[6][JA]. No independent CEA-2010 burst/output data or tolerance (±dB) are published for NS-SW300, so deep-bass distortion and maximum clean SPL below ~30 Hz remain unverified. This section is therefore provisional pending third-party measurements[1][3].

Technology Level

\[\Large \text{0.5}\]

Useful engineering touches include the Class-D PWM digital-drive amp with dual feedback and the Twisted Flare Port[2]. However, there’s no advanced DSP/app control or room EQ typical of newer designs. Driver and cabinet construction are conventional for the class.

Cost-Performance

\[\Large \text{0.7}\]

Current U.S. shop price is 499.95 USD[4]. The cheapest equal-or-better alternative with credible third-party measurements is the RSL Speedwoofer 10E at 339 USD with independently verified ±3 dB to 26–200 Hz (anechoic) and published CEA-2010 output data, indicating comparable or better practical extension/output for a 10-inch sub[5][6].
Calculation: 339 USD ÷ 499.95 USD = 0.678 → 0.7 (rounded to one decimal).

(Equivalence note: both are single-box active 10″ subs with similar basic controls/connectivity; the 10E adds published measurement evidence and competitive extension/output[6]. NS-SW300 lacks equivalent third-party data.)

Reliability & Support

\[\Large \text{0.5}\]

U.S. listings state a limited 2-year manufacturer warranty for the NS-SW300[7]. Yamaha maintains a broad service network and general warranty information portal[8]. Being an analog (non-networked) design, there’s no expectation of firmware upgrades.

Rationality of Design Philosophy

\[\Large \text{0.6}\]

The design prioritizes compact size and cost over maximum low-frequency headroom and objective transparency. Port shaping and feedback are rational choices, but absent measurement-backed claims or advanced DSP/room integration, the approach is functionally conservative.

Advice

If you value compact footprint and brand support, the NS-SW300 remains serviceable for small/medium rooms. If measured performance per dollar is your priority, the RSL Speedwoofer 10E (339 USD) currently offers stronger value with published data[5][6]. If you require app control or a sealed alignment, consider options like SVS SB-1000 Pro (higher price)[9].

References

[1] Yamaha USA — “NS-SW300: Specs” — https://usa.yamaha.com/products/audio_visual/speaker_systems/ns-sw300/specs.html — accessed 2025-08-16
[2] Yamaha USA — “NS-SW300: Features (PWM digital drive amp, dual feedback, Twisted Flare Port)” — https://usa.yamaha.com/products/audio_visual/speaker_systems/ns-sw300/features.html — accessed 2025-08-16
[3] Yamaha (SG) — “NS-SW300/200 Technical Data” (PDF) — https://sg.yamaha.com/files/download/brochure/2/333002/NS-SW300-200.pdf — accessed 2025-08-16
[4] Yamaha USA Shop — “NS-SW300 10″ 250W Powered Subwoofer — price 499.95 USD” — https://shop.usa.yamaha.com/en/p/audio-home-theater/speakers/ns-sw300-10-250w-powered-subwoofer — accessed 2025-08-16
[5] RSL — “Speedwoofer 10E — product page/price 339 USD” — https://rslspeakers.com/products/rsl-speedwoofer-10e — accessed 2025-08-16
[6] Audioholics — “300 USD RSL Speedwoofer 10E Subwoofer Review” (with CEA-2010 & ±3 dB data) — https://www.audioholics.com/subwoofer-reviews/rsl-speedwoofer-10e — accessed 2025-08-16
[7] B&H — “Yamaha NS-SW300… Limited 2-Year Manufacturer Warranty” — https://www.bhphotovideo.com/c/product/1009593-REG/yamaha_ns_sw300pn_ns_sw300_10_powered_subwoofer.html — accessed 2025-08-16
[8] Yamaha USA — “Audio & Visual — Warranty Information (portal)” — https://usa.yamaha.com/support/warranty/audio_visual/index.html — accessed 2025-08-16
[9] SVS — “SB-1000 Pro — Specifications” — https://www.svsound.com/products/sb-1000-pro-subwoofer — accessed 2025-08-16

(2025.8.16)
