Overview

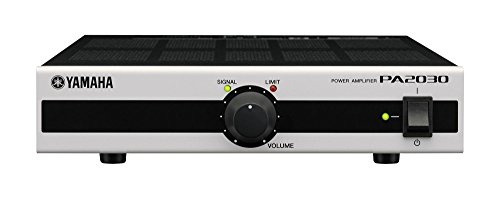

The Yamaha PA2030A is a compact 1U half-rack Class-D installation power amplifier aimed at retail, education, and public facilities. It can operate either as 30W × 2 into low-impedance loads (3Ω/4Ω/8Ω) or as a single-channel 60W constant-voltage amplifier for 70V/100V distributed systems, and includes multiple protection functions for continuous duty. [1]

Scientific Validity

\[\Large \text{0.6}\]

Manufacturer-published measurements indicate THD+N ≤0.1% at 1kHz, 15W into 3/4Ω (Lo-Z) and ≤0.2% at 1kHz, 30W in 70V/100V mode. Frequency response is 50Hz–20kHz (−3/+1dB, 1W, 3/4Ω) and 90Hz–20kHz (−3/+1dB, 1W, 70V/100V). Crosstalk is specified at ≤−70dB. No SNR spec is published and credible third-party bench data were not found at review time, so results remain based on manufacturer data. These figures are adequate for BGM/paging; the 70V high-pass and modest power keep it below transparent hi-fi thresholds. [1]

Technology Level

\[\Large \text{0.7}\]

PA2030A employs a conventional Class-D output stage with switch-mode PSU and practical install features (Lo-Z/Hi-Z switchability, speaker EQ/filters for Yamaha VXC/VXS lines, and layered protection). The design is competent but not novel—no advanced proprietary amplification or integrated networked DSP that would move it beyond industry standard practice. [1]

Cost-Performance

\[\Large \text{1.0}\]

US market price: 339.99 USD (typical street/MAP). [2][3]
We searched for the cheapest equal-or-better product (user-visible functions: 60W 70V/100V constant-voltage output suitable for distributed systems; measured performance at least comparable on THD+N and frequency response).

• Crown 160MA (60W 70V/100V mixer-amp): FR 50Hz–20kHz, THD+N <0.5% at rated power (0.1% @5W). Typically priced above PA2030A. Measured distortion is worse at rated power, so not equal-or-better. [4]
• AtlasIED PA60G (60W 70V/100V power amp): FR 50Hz–20kHz, THD+N ≤0.5% @1kHz; common street price ~472.99 USD—more expensive and higher THD. [5]
• JBL VMA/CSMA 60-W class: 70V/100V FR typically 80Hz–15kHz or 20kHz with THD <0.5%; street prices generally higher than PA2030A—not cheaper and not lower THD. [6]

Cheaper PA mixer-amps like Pyle PCM30A exist, but they are not equivalent: FR 50Hz–15kHz and THD <1%, plus lower output and different functional profile; thus they cannot be used as the CP comparator. [7][8]

Given the absence of any cheaper product with equal-or-better user-visible functions and specs, CP = 1.0 by definition (the review target is the cheapest among equal-or-better options). Do not present a numeric division when CP=1.0. [Section rules]

Reliability & Support

\[\Large \text{0.8}\]

Yamaha offers broad global service coverage and warranty support for commercial audio. The PA2030A lists thermal/overcurrent/DC/protection layers and conventional convection cooling, which is appropriate for quiet, enclosed installs. Specific MTBF data is not published, but Yamaha’s pro install track record supports an above-average reliability expectation. [1]

Rationality of Design Philosophy

\[\Large \text{0.9}\]

The product’s direction is rational for real-world installs: efficient Class-D topology, Lo-Z/Hi-Z flexibility, compact fanless chassis, and protective limiters aligned with continuous BGM/paging. It avoids marketing-driven “audiophile” claims and focuses on measurable, installation-relevant traits. Pricing aligns competitively with peers that meet or exceed its published performance. [1][2][4][5]

Advice

Choose the PA2030A when you need a compact, quiet, Lo-Z/Hi-Z switchable amp with credible published distortion/response figures and dependable support. For pure 70V/100V use, alternatives exist, but those found to be cheaper generally carry higher THD or narrower bandwidth; equal-spec peers tend to cost more. If your application demands wider low-frequency bandwidth at 70V or integrated networked DSP, consider stepping up to higher-tier commercial amps and budget accordingly. [4][5][6]

References

[1] Yamaha — “MA2030 / PA2030 Datasheet,” mapa2030_datasheet.pdf, accessed Aug 13, 2025. Key conditions: THD+N at 1kHz (15W, 3/4Ω) ≤0.1%; at 30W (70V/100V) ≤0.2%; FR 50Hz–20kHz (1W, 3/4Ω) −3/+1dB; FR 90Hz–20kHz (1W, 70V/100V) −3/+1dB; Crosstalk ≤−70dB. https://jp.yamaha.com/files/download/other_assets/6/331706/mapa2030_datasheet.pdf
[2] Sweetwater — “Yamaha PA2030a Lo-Z/Hi-Z Switchable 30W/60W Commercial Power Amplifier,” price observed 339.99 USD, accessed Aug 13, 2025. https://www.sweetwater.com/store/detail/PA2030a–yamaha-pa2030a-lo-z-hi-z-switchable-30w-60w-commercial-power-amplifier
[3] SoundPro — “Yamaha PA2030a Lo-Z/Hi-Z Switchable Power Amplifier,” MAP 339.99 USD, accessed Aug 13, 2025. https://soundpro.com/products/yamaha-pa2030a-lo-z-hi-z-switchable-power-amplifier
[4] Crown — “160MA Specifications,” FR 50Hz–20kHz; THD+N <0.5% @ rated power (0.1% @5W), accessed Aug 13, 2025. https://www.crownaudio.com/en-US/products/160ma
[5] AtlasIED — “PA60G 60W 70V/100V Power Amplifier,” FR 50Hz–20kHz; THD+N ≤0.5% @1kHz; typical price ~472.99 USD, accessed Aug 13, 2025. https://www.crutchfield.com/p_978PA60G/AtlasIED-PA60G.html
[6] JBL Professional — “VMA/CSMA Series,” 70V/100V FR typically 80Hz–15kHz (±3dB) and THD <0.5%; series price positioning above PA2030A, accessed Aug 13, 2025. https://jblpro.com/en/products/vma-160-1120-1240
[7] Pyle — “PCM30A Specifications,” FR 50–15kHz; THD <1%; 25V/70V outputs, accessed Aug 13, 2025. https://pyleusa.com/products/pcm30a
[8] Parts-Express — “Pyle PCM30A 30W PA Mixer-Amplifier,” current price availability page, accessed Aug 13, 2025. https://www.parts-express.com/Pyle-PCM30A-30W-PA-Mixer-Amplifier-with-25V-70V-Outputs-248-4262

(2025.8.13)
