Overview

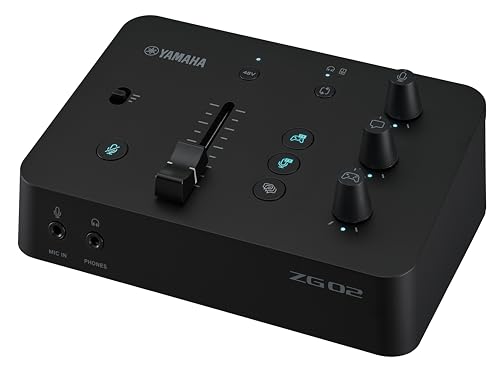

The Yamaha ZG02 is a compact USB audio interface and mixer designed specifically for gaming and streaming applications. This device combines traditional audio interface functionality with gaming-oriented features including dual USB-C connectivity for simultaneous PC and console operation, proprietary ViReal technology for surround sound processing, and integrated DSP effects. At 200 USD, the ZG02 positions itself as a specialized solution for content creators and gamers requiring multi-platform audio routing capabilities. The device measures 162mm × 61mm × 113mm and weighs 0.6kg, featuring a single XLR/TRS combo input with phantom power, 3.5mm headset microphone input, and comprehensive software control via the ZG Controller application.

Scientific Validity

\[\Large \text{0.5}\]

The ZG02’s scientific validity evaluation is severely constrained by the complete absence of published audio quality measurements from credible third-party sources and limited manufacturer specifications that omit critical audio-quality-relevant parameters. Available technical specifications indicate 48 kHz sampling frequency and 24-bit depth for PC connections, with console operation limited to 16-bit depth, representing acceptable but not high-resolution digital audio standards compared to professional interfaces supporting 96kHz/192kHz operation. Essential audio quality metrics including frequency response deviation, signal-to-noise ratio, total harmonic distortion, dynamic range, intermodulation distortion, and crosstalk specifications remain completely undisclosed by the manufacturer. The device provides standard +48V phantom power and supports up to 7.1 surround sound processing via USB-C connection, but without quantitative data on analog signal path performance, distortion characteristics, or dynamic range capabilities. This significant data limitation prevents meaningful comparison with competing products that publish comprehensive measurement specifications. Consequently, Scientific Validity cannot be properly evaluated beyond noting that basic digital audio functionality meets minimum streaming requirements, resulting in the conservative baseline score of 0.5 as mandated by evaluation guidelines for insufficient measurement data scenarios.

Technology Level

\[\Large \text{0.6}\]

The ZG02 demonstrates moderate technological advancement through several key implementations. Yamaha’s proprietary ViReal technology represents meaningful innovation in spatial audio processing, utilizing advanced algorithms to create immersive 3D soundscapes from stereo sources and enabling real-time virtualization of multi-channel audio from USB input while providing seamless downmixing of surround sound into streaming-friendly 2-channel output for broadcast applications. The dual USB-C connectivity system implements sophisticated audio routing protocols allowing simultaneous PC and console operation with independent level control and processing paths, addressing specific workflow requirements for content creators managing multiple audio sources. DSP processing capabilities include 3D voice chat enhancement, focus mode EQ with intelligent frequency targeting, real-time voice modification using pitch and formant processing, and customizable game sound effects with sample triggering, all controllable via the comprehensive ZG Controller software featuring intuitive parameter mapping and preset management. The device leverages Yamaha’s established expertise in digital signal processing, professional mixing console design, and 3D sound technology derived from their commercial audio installations. However, the core audio interface functionality relies on conventional USB audio standards without significant advancement over general-purpose implementations, limiting technical differentiation to software-based processing rather than fundamental analog or digital audio improvements.

Cost-Performance

\[\Large \text{1.0}\]

Cost-performance analysis of the ZG02 at 200 USD reveals it is the world’s cheapest gaming mixer providing its complete feature set. Competing products with equivalent functionality including dual USB-C connectivity for PC/console operation, proprietary ViReal 3D audio technology, integrated DSP processing, voice modification capabilities, and game sound effects are significantly more expensive. The RØDE Streamer X at 399 USD [2] and BEACN Studio at 249 USD [3] offer similar dual-connectivity and DSP features but at substantially higher prices. The Elgato Wave XLR at 159 USD [4] provides XLR input and software mixing but lacks essential ZG02 features including dual USB-C connectivity, ViReal technology, voice modification, and gaming-specific DSP effects. Basic audio interfaces like the M-Audio M-Track Solo lack the specialized gaming functionality that defines the ZG02’s value proposition. No currently available product offers equivalent gaming mixer functionality at a lower price point, establishing the ZG02 as the most cost-effective option in its specialized category and resulting in a cost-performance score of 1.0.

Reliability & Support

\[\Large \text{0.7}\]

The ZG02 benefits from Yamaha’s established reputation in professional and consumer audio equipment manufacturing, providing above-average reliability expectations. The device features solid-state construction with no moving parts, reducing potential failure points and mechanical wear. Its compact design and conservative power consumption (maximum 4.5W) minimize thermal stress and improve long-term operational stability. Yamaha maintains a global support infrastructure with established service networks and authorized dealer programs. The ZG Controller software provides ongoing feature updates and parameter control capabilities, demonstrating continued product support. Standard manufacturer warranty coverage applies through authorized dealers, with service center locations available globally. The gaming mixer market represents a relatively new product category for Yamaha, but the underlying USB audio interface technology builds upon proven designs. Simple USB-C connectivity and driver installation process reduce setup complexity and potential compatibility issues across Windows and Mac platforms.

Rationality of Design Philosophy

\[\Large \text{0.6}\]

Yamaha’s design philosophy for the ZG02 aligns with their established “natural sound” approach emphasizing transparent signal processing with optional modification capabilities [1]. The company’s measurement-focused development methodology, combining scientific analysis with empirical validation, provides rational foundation for audio product design. The ZG02’s functional integration addresses specific user requirements for gaming and streaming applications through dual USB-C connectivity and specialized DSP processing. The device demonstrates cost-effective engineering by delivering specialized gaming mixer functionality at the lowest price point among competing products with equivalent features. Proprietary ViReal technology and software integration represent meaningful technical advancement while maintaining competitive pricing compared to alternatives like the RØDE Streamer X and BEACN Studio. The device’s positioning as dedicated gaming equipment provides clear justification as no equivalent gaming mixer functionality exists at lower prices. Yamaha’s adoption of cutting-edge USB-C connectivity and DSP processing demonstrates progressive technology integration with rational cost optimization for the specialized gaming and streaming market segment.

Advice

The Yamaha ZG02 represents the most cost-effective option for users requiring specialized gaming mixer functionality including dual USB-C connectivity, ViReal 3D audio processing, voice modification, and integrated DSP effects. Content creators and streamers operating across multiple platforms (PC and console simultaneously) will find the ZG02’s unique feature combination essential for professional workflows. However, users primarily seeking basic audio recording or simple streaming setup may find basic audio interfaces like the M-Audio M-Track Solo adequate for core functionality at lower cost, though they sacrifice the gaming-specific features. The ZG02 offers optimal value for dedicated gaming and streaming setups where the specialized functionality directly enhances workflow efficiency and content quality. Professional streamers requiring sophisticated audio routing and real-time processing capabilities will find no cheaper alternatives with equivalent functionality, making the ZG02 the rational choice in its specialized category.

References

[1] Yamaha Corporation, “Audio quality in networked systems,” https://usa.yamaha.com/products/contents/proaudio/docs/audio_quality/01_audio_quality.html, accessed 2025-10-15

[2] RØDE, “Streamer X Professional Audio Interface and Video Capture Card,” https://rode.com/en-us/products/streamer-x, accessed 2025-10-15

[3] BEACN, “BEACN Studio XLR Audio Interface,” https://www.beacn.com/blogs/articles/announcing-beacn-studio, accessed 2025-10-15

[4] Elgato, “Wave XLR Audio Mixer,” https://www.elgato.com/en/wave-xlr, accessed 2025-10-15

(2025.10.16)
