Overview

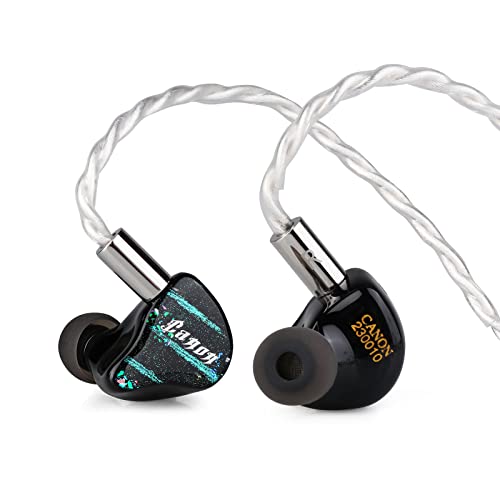

The Yanyin Canon II is a hybrid 5-driver in-ear monitor featuring a single dynamic driver combined with four balanced armature drivers. Launched in 2023, this IEM incorporates Yanyin’s third-generation bio-diaphragm dynamic driver technology with dual-chamber design for low-frequency optimization. The Canon II includes two independently controllable low-frequency tuning switches providing four distinct sound modes, housed in a handcrafted medical-grade resin shell. At 379 USD, it positions itself in the premium IEM segment with emphasis on technical implementation and user customization features.

Scientific Validity

\[\Large \text{0.5}\]

Scientific validity assessment incorporates available measured performance data and specifications. Third-party frequency response measurements show alignment with Harman in-ear target with modifications, including mid-bass boost above target and slight 1.5 kHz midrange emphasis, while treble remains relatively smooth without problematic peaks [1]. Available specifications include 27-40Ω impedance range [1], 112 dB sensitivity, and 20-30 dB passive isolation. The impedance and sensitivity values represent standard specifications with no performance impact. Passive isolation performance falls between problematic (10dB) and excellent (30dB) levels according to evaluation criteria. Critical detailed measurements including THD, S/N ratio, and comprehensive frequency response deviations remain limited from independent measurement sources. While basic frequency response characteristics are documented, comprehensive audio quality verification through complete measured performance data is insufficient for elevated Scientific Validity assessment.

Technology Level

\[\Large \text{0.7}\]

The Canon II demonstrates substantial technical sophistication through several advanced implementations. The third-generation bio-diaphragm dynamic driver represents proprietary technology development, while the dual-chamber design for low-frequency optimization shows engineering sophistication beyond basic driver arrangements. The hybrid architecture incorporates four custom balanced armature drivers in a three-way crossover configuration, representing contemporary industry approaches. Two independently controllable tuning switches provide functional innovation, allowing users to select between four distinct sound signatures. The handcrafted medical-grade resin shell construction follows premium industry standards. In-house design ownership and appropriate adoption of contemporary technologies contribute to the elevated technology assessment, though the implementation remains within established hybrid IEM approaches rather than representing cutting-edge innovation.

Cost-Performance

\[\Large \text{0.3}\]

This site evaluates based solely on functionality and measured performance values, without considering driver types or configurations. Cost-performance evaluation identifies significant alternatives providing equivalent-or-better core functionality at substantially lower prices. The Canon II provides dual tuning switches for four sound modes, 27-40Ω impedance range [1], 112 dB sensitivity, 20-30 dB passive isolation, and detachable cable connectivity. Comparison target Truthear x Crinacle ZERO offers dual dynamic driver configuration, impedance of 10Ω with sensitivity of 122 dB [2], similar passive isolation performance, and standard detachable 2-pin connectivity at 100 USD. Crinacle’s measurements show both products achieve similar frequency response characteristics close to Harman in-ear target, providing equivalent audio quality performance [2]. While the Canon II includes dual tuning switches for sound customization not present in the Truthear x Crinacle ZERO, this represents a convenience feature rather than fundamental audio performance capability, as equivalent sound signature adjustments can be achieved through external equalization. The Truthear x Crinacle ZERO provides equivalent core audio functionality with comparable measured performance specifications. CP = 100 USD ÷ 379 USD = 0.264, rounded to 0.3.

Reliability & Support

\[\Large \text{0.3}\]

Reliability assessment reveals below-average support characteristics. The Canon II includes a standard 1-year warranty on the IEM unit, but only 3 months warranty coverage on the cable, which falls below industry standards. The hybrid IEM construction utilizes standard components in a simple structure without inherent reliability concerns. Yanyin’s company establishment in 2020 provides limited long-term reliability history, though founding members possess experience from 2012. User reports indicate operational difficulties with the tuning switches, described as “quite difficult to operate, even with long fingernails” [3], suggesting potential long-term usability concerns. Support infrastructure relies primarily on dealer-based systems rather than direct manufacturer support channels. The combination of limited cable warranty, operational issues with key features, and restricted support infrastructure results in below-average reliability assessment.

Rationality of Design Philosophy

\[\Large \text{0.6}\]

Yanyin’s design philosophy demonstrates mixed rationality with both scientific and market-oriented approaches. The company emphasizes research and development, reflected in proprietary bio-diaphragm technology and dual-chamber acoustic design, indicating scientific approach to acoustic engineering. The hybrid driver implementation and tuning switch functionality provide legitimate user benefits through customization capabilities. However, the significant cost premium over equivalent-performance alternatives suggests cost-effectiveness concerns, with substantial investment in features that may not directly contribute to measured performance improvements. Claims of superior performance lack public measurement verification, limiting scientific validation of design benefits. The bio-diaphragm technology and dual-chamber design represent genuine engineering development efforts. Overall philosophy balances innovation with practical functionality, though pricing strategy reduces overall rationality assessment.

Advice

The Yanyin Canon II targets users seeking premium construction and tuning flexibility rather than optimal cost-performance value. Consider this IEM if you prioritize handcrafted build quality, multiple sound signature options through tuning switches, and proprietary driver technology implementation. The medical-grade resin construction and visual design appeal to users valuing premium aesthetics and materials. However, recognize that equivalent driver configurations and comparable specifications are available at substantially lower prices. Users focused on measured performance value should consider alternatives like the KZ ZS10 Pro providing similar functionality at 45 USD. The tuning switches require careful operation and may present long-term usability concerns. Purchase recommended only when premium construction and brand philosophy justify the significant cost premium over equivalent-performance alternatives.

References

[1] In-ear Gems - Yanyin Canon 2 - Harmony, https://iegems.nk-tran.com/2023/11/26/review-Yanyin-Canon2.html, accessed 2025-10-04, IEC-711-compliant frequency response measurements

[2] Crinacle - Truthear x Crinacle ZERO, https://crinacle.com/graphs/iems/truthear-x-crinacle-zero/, accessed 2025-10-04, frequency response and impedance measurements

[3] Audio Discourse - Yanyin Canon II Review: Dark Canon Lore, https://www.audiodiscourse.com/2023/10/canon2corgi.html, accessed 2025-10-04

(2025.10.4)
