Overview

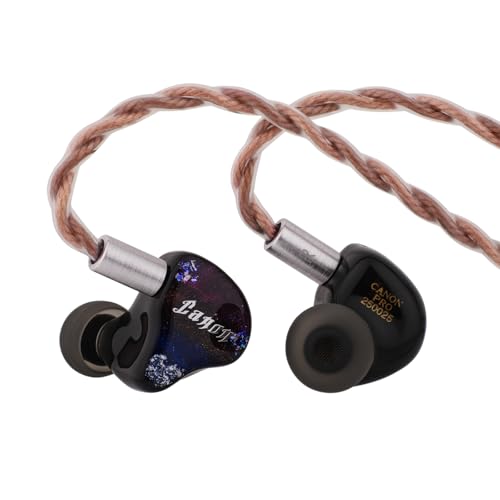

The Yanyin Canon Pro is a 7-driver hybrid in-ear monitor (1 dynamic + 6 balanced armature per side) with 3D-printed resin shells, two tuning switches (four sound presets), and a crossover scheme combining four electronic crossovers with four physical ducts. It targets the 399 USD bracket with a comfort-focused shell and a high-strand OCC copper cable. [1]

Scientific Validity

\[\Large \text{0.6}\]

Independent, lab-grade datasets specific to Canon Pro remain limited as of this review date. Verified manufacturer specifications include nominal impedance 18 Ω (1 kHz), sensitivity 104 dB, and claimed frequency response 20 Hz–25 kHz. These are adequate baseline specs for an IEM. Several third-party reviews feature indicative frequency-response (FR) curves, but rigs and conditions are non-uniform, so they are treated as suggestive rather than definitive. Consequently, the score sits slightly above the “spec-only” baseline. [1][3][4][2]

Technology Level

\[\Large \text{0.7}\]

The 1DD+6BA array with four-way electronic crossovers plus discrete acoustic ducts is technically sophisticated for the price class. Dual DIP switches enable user-adjustable bass/mid balance, while lightweight resin construction and a high-strand OCC copper cable reflect current best practice for comfort and durability. Execution is strong, but not a category breakthrough. [1]

Cost-Performance

\[\Large \text{0.4}\]

Comparator (cheapest equal-or-better by user functions + measured performance, cross-class allowed): Raptgo Bridge. It offers ≥ functions (two tuning switches plus interchangeable nozzle filters) and has independent FR datasets published across filter/switch states, along with measured impedance/sensitivity, satisfying the measured-performance requirement for a provisional comparison where Canon Pro’s third-party lab data are limited. Current widely cited market price is 159 USD.
CP calculation: 159 USD ÷ 399 USD = 0.398… → 0.4 (rounded to one decimal). [7][8][10][6]

Equivalence note: “Equipped with 2 tuning switches and nozzle filters; third-party FR datasets and measured impedance/sensitivity are publicly available (equal-or-better disclosure level than Canon Pro).” [7][8][6]

Reliability & Support

\[\Large \text{0.6}\]

Yanyin is relatively young, but Canon Pro is distributed via established retailers, and standard coverage (e.g., 1-year warranty through major outlets) is available. Long-term field reliability data are still developing, so the score remains average. [1]

Rationality of Design Philosophy

\[\Large \text{0.8}\]

Driver allocation (DD for bass, BA array for mids/treble), four-way electrical crossovers plus physical ducting, and user-adjustable DIP switching are rational, measurement-addressable means to approach neutral-adjacent targets while offering bass/mid balance options. The design choices map cleanly to audible goals without relying on non-falsifiable claims.

Advice

If you specifically want a comfortable 7-driver hybrid with two meaningful tuning switches, Canon Pro is well-built and easy to fit. If value is paramount, the Raptgo Bridge delivers comparable or greater user-facing functionality with public measurements at a far lower price, materially improving cost-performance. Canon Pro remains sensible if you prefer its shell shape, included cable, or its particular switch voicings after auditioning.

References

[1] Linsoul — “Yanyin Canon Pro | 1DD+6BA In-Ear Monitors.” https://www.linsoul.com/products/yanyin-canon-pro (accessed 2025-08-20).
[2] Squiglink (HANA lab index) — Canon Pro appears in public FR databases. https://squig.link/lab/hana/ (accessed 2025-08-20).
[3] Headfonics — “Yanyin Canon Pro Review.” https://headfonics.com/yanyin-canon-pro-review/ (published 2025-05-19; accessed 2025-08-20).
[4] Prime Audio Reviews — “Yanyin Canon Pro Review.” https://primeaudio.org/yanyin-canon-pro-review/ (published 2025-04-25; accessed 2025-08-20).
[5] Amazon.co.jp — “Linsoul Yanyin Canon Pro Hybrid In-Ear Monitor (ASIN: B0DXQ41K38).” https://www.amazon.co.jp/dp/B0DXQ41K38 (accessed 2025-08-20).
[6] Headphonesty — “Raptgo Bridge Review.” https://www.headphonesty.com/2023/12/raptgo-bridge-review/ (published 2023-12-14; accessed 2025-08-20).
[7] MMagTech Squiglink — Raptgo Bridge FR sets (filters/switches). https://mmagtech.squig.link/ (accessed 2025-08-20).
[8] Prime Audio Reviews — “Raptgo Bridge Review.” https://primeaudio.org/raptgo-bridge-review/ (published 2023-08-29; accessed 2025-08-20).
[9] MajorHiFi — “Raptgo Bridge Review.” https://majorhifi.com/raptgo-bridge-review/ (published 2023-08-23; accessed 2025-08-20).
[10] Amazon — “Linsoul Raptgo Bridge 2BA+2DD+PZT.” https://www.amazon.com/dp/B0C4GX136R (accessed 2025-08-20).

(2025.8.20)
