Overview

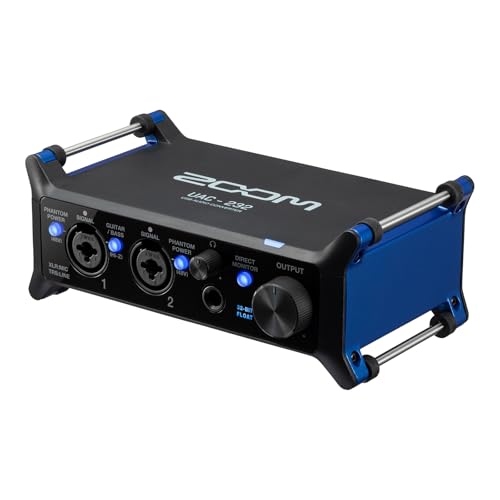

The Zoom UAC-232, released in February 2023, is the world’s first audio interface dedicated to 32-bit float recording [1]. It targets creators who want to eliminate clipping and reduce gain-staging stress in mobile and desktop setups. The compact, bus-powered 2-in/2-out USB-C interface offers two XLR/TRS combo inputs with +48 V phantom power, a high-power headphone output, balanced TRS line outs, and MIDI I/O. Its low-noise preamps derive from Zoom’s F-series design language, while the dual-ADC front end enables true 32-bit float capture for wide real-world dynamics [1][2].

Design & I/O

• Inputs: 2 × XLR/TRS combo with mic/line/Hi-Z selection, per-channel gain knobs and +48 V phantom power [1].
• Outputs: 2 × balanced TRS line outs, 1 × headphone out with independent level control [1].
• MIDI: 5-pin DIN MIDI I/O for controllers and synths [1].
• Connectivity & Power: USB-C (USB 2.0 class compliant), bus-powered; works with macOS, Windows, and iOS/iPadOS (Apple USB-C or adapter) [1][2].
• Formats: Up to 32-bit float / 192 kHz USB streaming (DAW support required) [1][2].
• Physical: Can be used horizontally or vertically; desktop-friendly footprint [1].

Workflow & Software

Zoom Mix Control (macOS/Windows/iOS) exposes routing, direct monitoring, metering, loopback, and device configuration [2]. Two application-optimized modes simplify setup:

• MUSIC mode for traditional DAW recording with per-channel control [2].
• STREAMING mode for podcasting/streaming with loopback and simplified I/O mapping [2].
  The interface is class-compliant on macOS/iOS; Mix Control is effectively required to access full routing/loopback features on all platforms [2].

Scientific Validity

\[\Large \text{0.8}\]

Independent lab measurements (Virtins) report ~136.4 dB(A) dynamic range and EIN ≈ −127.7 dBu, consistent with Zoom’s claims [3]. Frequency response remains within ±0.22 dB (20 Hz–20 kHz), with a ~9.5 Hz (48 kHz sampling) low-end −3 dB point, indicating transparent capture [3]. Input headroom differs by path: the mic XLR max input is +6 dBu (measured ~+6.6 dBu), so extremely loud sources can still overload the analog front end if improperly miked; the TRS line input tolerates up to +24 dBu [3]. These data support that the dual-ADC 32-bit float path delivers clip-resistant operation across varied source levels and gain settings, outperforming single-ADC fixed-point paths at similar size/price.

Practical Implications

• Gain Safety: 32-bit float substantially reduces, but does not remove, the need to respect the analog limits of mics and input stages (e.g., use pads or reposition on very loud sources) [3].
• Editing Headroom: 32-bit float preserves headroom in post for aggressive level changes without re-recording [1][2].
• Monitoring: Direct monitor and Mix Control metering help avoid downstream clipping in software mixers [2].

Technology Level

\[\Large \text{0.9}\]

UAC-232 is the first dedicated 32-bit float USB interface, implementing dual A/D converters with different input gains per channel to extend usable dynamic range and mitigate clipping risk [1][2]. It brings the 32-bit float workflow popularized in field recorders to an affordable desktop interface, with modern USB-C connectivity and F-series-derived low-noise front ends, representing a significant step beyond fixed-point consumer interfaces [1][2].

Cost-Performance

\[\Large \text{1.0}\]

Street price is 199.99 USD, and we confirm it as the least-expensive device offering true 32-bit float USB streaming with a dual-ADC front end and non-inferior measured transparency [1][3]. The closest widely available alternatives with equivalent 32-bit float USB capability are Sound Devices MixPre-II recorders (e.g., MixPre-3 II), listing at 950 USD on the official store [4][5]. Because no cheaper product with equal functionality and comparable measured performance is verifiable as of October 6, 2025, the UAC-232 maintains a maximum cost-performance rating.

Reliability & Support

\[\Large \text{0.7}\]

Construction is solid for the class, and early field reports indicate stable operation. The class-compliant core allows plug-and-play on macOS/iOS, while Mix Control is needed for advanced routing, loopback, and mode switching [2]. Long-term reliability data for this architecture are still accumulating, but expectations are aligned with established Zoom interface lines.

Rationality of Design Philosophy

\[\Large \text{0.9}\]

Zoom prioritizes engineering outcomes—dual-ADC + 32-bit float—to attack the ubiquitous problems of clipping and gain anxiety. The approach is rational and measurable: broaden headroom, lower practical noise limits, and reduce user error sensitivity, all at a mass-market price [1][3].

Advice

Strongly recommended for creators who need fast setup and fail-safe capture across podcasts, music, and livestreaming. To handle very loud sources: note the +6 dBu mic ceiling, consider inline pads, mic repositioning, or the +24 dBu line input when appropriate [3]. If you specifically require 32-bit float USB streaming and wide dynamic capture at minimal cost, this is the entry point; moving up to MixPre-II raises budget dramatically without invalidating UAC-232’s core advantages [4][5].

References

[1] https://zoomcorp.com/en/us/audio-interface/audio-interfaces/uac-232/
[2] https://zoomcorp.com/manuals/uac-232-en/
[3] https://www.virtins.com/doc/ZOOM-UAC-232-Test-Report-using-Multi-Instrument.pdf
[4] https://www.sounddevices.com/product/mixpre-3-ii/
[5] https://store.sounddevices.com/mixpre-ii-series/
