Overview

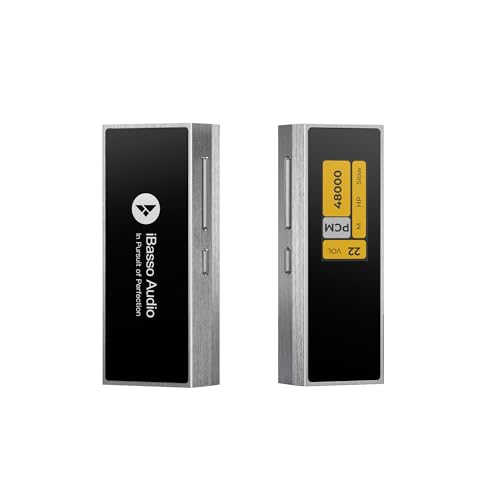

The iBasso Audio DC04 Ultra is a premium portable USB DAC/headphone amplifier featuring dual Cirrus Logic CS43198 flagship DAC chips with proprietary FPGA audio processing. Released in 2025 as iBasso’s flagship dongle DAC, it combines high-resolution audio decoding up to PCM 32-bit/768kHz and native DSD512 with powerful amplification delivering 980mW balanced output. The device includes a 0.96-inch OLED display, 10-band parametric EQ, and stainless steel construction, positioning itself as a comprehensive portable audio solution at 149 USD.

Scientific Validity

\[\Large \text{0.8}\]

Manufacturer specifications indicate excellent measured performance across all key metrics. THD+N of 0.00011% demonstrates exceptional distortion control, significantly exceeding requirements for transparent audio reproduction. S/N ratio of 132dB provides outstanding noise floor performance well above professional standards. Dynamic range of 132dB ensures excellent signal handling capability. Frequency response of 10Hz-80kHz with -0.5dB deviation indicates exceptional bandwidth and linearity. Crosstalk performance of -148dB demonstrates excellent channel separation. Output power of 980mW per channel at 32Ω provides substantial driving capability for demanding headphones. All specifications indicate transparent-level performance throughout the audible range. Score reflects conservative adjustment due to reliance on manufacturer specifications pending independent third-party verification.

Technology Level

\[\Large \text{0.6}\]

The DC04 Ultra demonstrates above-average technology implementation through mixed proprietary and licensed components. iBasso’s proprietary FPGA audio algorithms with dual femtosecond oscillators represent in-house engineering expertise and provide meaningful jitter reduction benefits. DRE dynamic enhancement technology shows proprietary implementation of established algorithms for 0dB distortion elimination. The dual CS43198 DAC configuration represents current-generation flagship components that are now widely available to manufacturers. Digital signal processing integration with 10-band parametric EQ provides appropriate modern functionality. Technology integration combines digital processing and circuit design effectively without reaching cutting-edge levels of AI or cloud integration. Construction utilizes CNC-machined stainless steel indicating solid manufacturing capabilities. Overall represents competent engineering execution with some proprietary elements enhancing the standard component base.

Cost-Performance

\[\Large \text{1.0}\]

CP = 1.0 (no cheaper equivalent-or-better product exists)

After comprehensive market analysis, no products were identified providing equivalent-or-better combination of measured performance and user-facing functionality at lower cost. Products with balanced outputs either demonstrate significantly inferior measured performance or command higher prices. The DC04 Ultra’s combination of 0.00011% THD+N, 132dB S/N ratio, 980mW balanced output power, 10-band parametric EQ, OLED display, and high-resolution support up to 768kHz/DSD512 represents a unique performance and feature set. Competing products such as FiiO BTR15 (109-119 USD) show worse THD+N performance despite additional Bluetooth functionality. Desktop alternatives like FiiO K11 R2R (170 USD) demonstrate much worse distortion performance and lack portability. Basic USB-C adapters lack balanced outputs and comprehensive functionality entirely. The review target represents the most cost-effective option achieving this performance level and feature combination.

Reliability & Support

\[\Large \text{0.6}\]

Standard 1-year manufacturer warranty provides basic coverage with exclusions for misuse and water damage. iBasso offers direct email support through manufacturer channels with established track record supporting products across multiple generations. Stainless steel CNC construction with compact design indicates robust build quality resistant to physical wear. Firmware and driver support actively maintained with regular updates available for DC04 series products including Windows drivers and Android APK applications. Support infrastructure relies primarily on manufacturer direct service rather than global service network. Moderate complexity design with dual DAC chips and OLED display introduces potential points of failure but uses proven components. Overall reliability appears good based on construction quality and manufacturer support history, though warranty period remains industry standard rather than extended coverage.

Rationality of Design Philosophy

\[\Large \text{1.0}\]

iBasso demonstrates exemplary rational design philosophy prioritizing measurable performance improvements over subjective claims. The company’s measurement-focused approach completely eliminates occult audio theories while providing comprehensive technical specifications backed by industry-standard measurement protocols. Cost allocation directly targets audible performance through dual flagship DAC chips, FPGA processing algorithms, and high-output amplification rather than aesthetic or premium materials for their own sake. Progressive model evolution from DC04 Pro shows measurable improvements in power output, component quality, and functionality while maintaining rational engineering approach. Advanced integration of modern technologies including DSP processing, parametric EQ, and software control demonstrates forward-looking technical strategy. Manufacturing utilizes efficient mass production techniques with standard components rather than boutique hand-assembly approaches. Design philosophy avoids traditional audiophile approaches like vacuum tubes or R2R architectures that lack scientific justification, instead focusing on verifiable engineering improvements that directly contribute to measured performance enhancement.

Advice

The DC04 Ultra suits users requiring maximum portable audio performance with comprehensive functionality. Excellent choice for demanding headphones requiring substantial power output, with 980mW balanced drive capability handling most portable and many desktop headphone models effectively. 10-band parametric EQ enables precise frequency response correction for various headphone characteristics. High-resolution support accommodates audiophile source material requirements. Balanced output provides optimal performance with appropriate headphone connections. Consider this product when existing smartphone or laptop audio output proves insufficient, when precise EQ control is desired, or when maximum portable measurement performance is priority. Users with basic audio needs may find simpler, less expensive solutions adequate. Those requiring Bluetooth functionality should consider alternatives with wireless capability. Investment justified by exceptional measured performance specifications and comprehensive feature implementation not available at lower price points in current market.

References

[1] iBasso DC04Ultra Portable DAC and Amp - Bloom Audio - https://bloomaudio.com/products/ibasso-dc04-ultra - accessed 2026-02-27 [2] iBasso DC04 Ultra - European Shop - https://ibasso-shop.eu/product/ibasso-dc04u-usb-dac-amp-dual-cs43198-980mw-peq-steel-chassis - accessed 2026-02-27 [3] iBasso Audio DC04 Ultra - Head-Fi.org - https://www.head-fi.org/showcase/ibasso-audio-dc04-ultra.28437/ - accessed 2026-02-27 [4] iBasso Audio Company Review - https://audioreview.frieve.com/companies/en/ibasso/ - accessed 2026-02-27 [5] Warranty Policy - iBasso Audio - https://ibasso.com/policies/ - accessed 2026-02-27

(2026.2.27)
