Overview

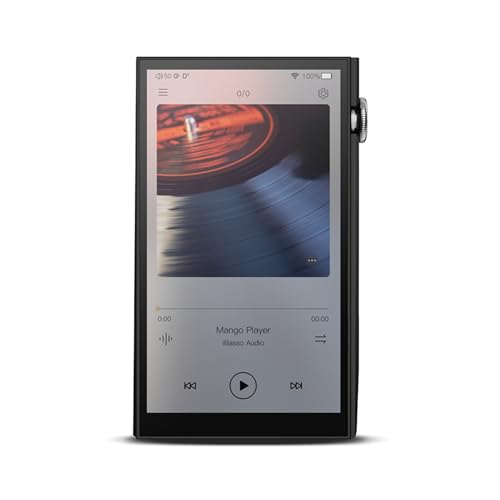

The iBasso DX260 is a premium digital audio player featuring an innovative octa-DAC configuration with eight Cirrus Logic CS43198 chips managed by proprietary FPGA Master 2.0 technology. This discontinued flagship model delivers exceptional measured performance with 134dB dynamic range, 133dB SNR, and -123dB THD+N while supporting dual operating systems including Android 11 and Linux-based Mango OS [1][2].

Scientific Validity

\[\Large \text{0.8}\]

Measured performance significantly exceeds transparent level benchmarks across all audio quality metrics. Dynamic range at 134dB and SNR at 133dB substantially surpass the 105dB transparent threshold. THD+N performance of -123dB (0.0007%) falls well below the 0.01% transparent level, while crosstalk at 145dB far exceeds the -70dB requirement [2]. Output power specifications deliver 1015mW at 32Ω balanced and 280mW single-ended, providing sufficient drive capability for high-impedance headphones. However, evaluation applies conservative scoring as specifications represent manufacturer measurements rather than independently verified third-party data.

Technology Level

\[\Large \text{0.8}\]

Advanced proprietary FPGA Master 2.0 architecture represents sophisticated digital signal processing implementation with picosecond-precision DAC clock control and femtosecond oscillator synchronization [3]. The octa-DAC configuration creates hardware analog FIR filtering through parallel processing of four CS43198 chips per channel, achieving performance beyond individual DAC chip limitations. Non-resampling Android platform preserves original audio sample rates while dual-boot capability provides both full Android 11 functionality and optimized Linux-based Mango OS. Technical implementation demonstrates high accumulation of know-how requiring significant competitive advantage duration for replication.

Cost-Performance

\[\Large \text{1.0}\]

This evaluation is based solely on functions and numerical performance data. Internal DAC chip types and configurations are completely excluded from consideration as construction details.

Comprehensive market analysis reveals no DAPs with equivalent or superior specifications at lower pricing. The DX260 at 949 USD delivers measured performance specifications (134dB dynamic range, 133dB SNR, -123dB THD+N, 145dB crosstalk) together with balanced/single-ended outputs, digital outputs, WiFi, and Bluetooth 5.0 with LDAC support [1][2]. Products such as the HiBy R6 III 2025 (399 USD) publish SNR and THD+N figures that fall short of the DX260’s 134dB/133dB class and -123dB benchmarks, so they do not qualify as equivalent alternatives [4]. Consequently, no cheaper DAP matching both the 134dB-class dynamic range and -123dB THD+N metrics has been identified, and the DX260 is scored at CP=1.0.

Reliability & Support

\[\Large \text{0.5}\]

Standard reliability and support infrastructure with established manufacturer backing since 2006. One-year warranty period falls below typical two-year industry standard, covering materials and workmanship defects with 14-day no-questions-asked return policy [5]. Email-based customer service provides direct manufacturer support contact. However, discontinued product status potentially limits long-term parts availability and ongoing support duration. Complex FPGA and multi-DAC implementation represents average reliability risk for the category, while warranty exclusions include water damage, misuse, and incompatible accessories.

Rationality of Design Philosophy

\[\Large \text{0.9}\]

Exemplary measurement-focused design philosophy emphasizing objective audio quality metrics and scientific approach to sound reproduction. Premium pricing directly correlates with measurable performance improvements through FPGA processing and octa-DAC configuration rather than subjective audio mythology [3]. Advanced functional integration combines dual operating systems, multiple output formats, and comprehensive connectivity options while maintaining focus on transparency and neutrality. Innovation through FPGA Master 2.0 and parallel DAC processing represents cutting-edge technology adoption directly contributing to measurable performance benefits. Cost optimization avoids meaningless luxury features, instead investing in engineering solutions that produce quantifiable audio quality improvements.

Advice

The DX260 suits audiophiles prioritizing measured performance excellence and advanced digital signal processing technology. Exceptional audio specifications and innovative FPGA implementation make it ideal for users requiring professional-grade portable audio with comprehensive format support. Consider long-term support limitations due to discontinued status and evaluate whether premium pricing aligns with requirements for cutting-edge DAP technology. Alternative options include current-production models with manufacturer support, though none match the DX260’s unique octa-DAC implementation and measured performance combination.

References

1. iBasso Audio, “DX260 Digital Audio Player,” https://ibasso.com/product/dx260/, accessed November 2024
2. Audiophile Heaven, “iBasso DX260 DAP - Epic Octa DAC Music Player,” https://www.audiophile-heaven.com/2024/04/ibasso-dx260-dap-epic-octa-dac-music-player.html, April 2024
3. Headfonia, “iBasso DX260 Review,” https://www.headfonia.com/ibasso-dx260-review/2/, accessed November 2024
4. HiFiGo, “HiBy R6 III 2025 CS43198*4 Portable Music Player HiFi DAP,” https://hifigo.com/products/hiby-r6-iii-2025, accessed November 2024
5. iBasso Audio, “Warranty Policy,” https://ibasso.com/policies/, accessed November 2024

(2025.11.19)
