Overview

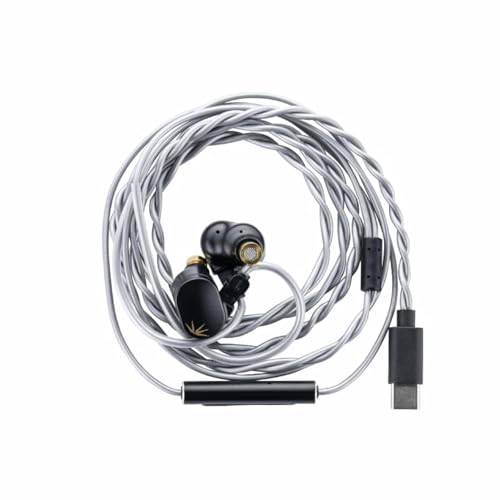

The MOONDROP CHU II DSP is an entry-level in-ear monitor pairing a 10mm aluminum-magnesium alloy composite diaphragm dynamic driver with a detachable USB-C cable that integrates a DAC and DSP. The IEM connects to the Moondrop Link 2.0 application for parametric EQ and preset tuning selection. Released in January 2024, it sits at the bottom of MOONDROP’s IEM lineup and remains in active worldwide distribution [1][2].

Scientific Validity

Manufacturer specifications list an effective frequency response of 20Hz–20kHz (IEC60318-4, ±3dB), THD of 0.5% or lower at 1kHz/94dB SPL, impedance of 18Ω±15%, and sensitivity of 119 dB/Vrms [1][2]. Third-party measurements from Pragmatic Audio and the Audio Science Review forum show frequency response close to the Harman target with the DSP Default preset engaged, mapping to FR deviation within roughly ±2–3dB. THD plots show good distortion performance across the band even with parametric EQ enabled. SINAD, IMD, and SNR are not published, but measured FR and THD characterize the audible-band headphone metrics at an acceptable level [3][4].

Technology Level

Construction relies almost entirely on commodity technology. The 10mm Al-Mg composite diaphragm dynamic driver with N52 magnet and 0.03mm CCAW voice coil, zinc alloy cavity, brass CNC nozzle, and 0.78mm 2-pin connector are all standard parts across the budget IEM segment. The USB-C DAC/DSP module is built around an off-the-shelf KTmicro SoC shared with multiple competitor USB-C DSP IEMs. In-house contributions are limited to the VDSF target tuning and the Moondrop Link 2.0 application providing 5-band PEQ (40Hz–20kHz, -12 to +3dB, Q 0.1–10) and shareable profiles. No proprietary patents are disclosed, the USB-C DSP architecture has been mainstream since 2022–2023, and competitors have shipped equivalent solutions, leaving little technical differentiation or longevity [1][3][4].

Cost-Performance

This site evaluates based solely on functionality and measured performance values, without considering driver types or configurations.

Current market price is 23.99 USD. The cheapest equivalent-or-better product is the MOONDROP Quarks DSP at 15 USD [5], which provides the same essential user-facing functions: integrated USB-C DSP/DAC cable, in-line microphone, app-based DSP tuning via Moondrop Link, and stereo IEM listening. Measured performance is equivalent based on credible third-party data:

• Frequency Response: Quarks DSP shows an FR plot close to the Harman target with DSP active, equivalent to the Chu II DSP’s measured FR (both characterized as close to Harman target with the DSP preset engaged, graph-based) [3].
• THD: Quarks DSP measures with low distortion across the band, equivalent to the Chu II DSP’s “very low distortion even with PEQ enabled” (both graph-based) [3].

Formula: CP = 15 USD / 23.99 USD = 0.625

Reliability & Support

Warranty coverage is 1 year on the IEM and 3 months on the USB-C DSP cable, shorter than the 2-year industry average [2]. The single-dynamic-driver design with detachable cable is structurally simple, and the most failure-prone component (the cable, which contains the DAC/DSP electronics) is user-replaceable via the 0.78mm 2-pin interface. MOONDROP maintains a globally distributed authorized-distributor support network covering more than 20 regions, with warranty service routed through regional partners [1][2]. Reported brass nozzle oxidation and cable handling complaints exist as anecdotal user reports without statistical RMA or MTBF data, so no negative adjustment applies. No public firmware or app changelog is documented for Moondrop Link 2.0, so no positive update credit applies either.

Rationality of Design Philosophy

The design philosophy is measurement-driven and cost-rational. Tuning targets MOONDROP’s published diffuse-field-derived VDSF curve, implemented through software DSP and parametric EQ rather than exotic materials or driver-count gimmicks. Third-party measurements confirm the DSP preset moves the in-ear response closer to the target than the analog predecessor [3][4]. Cost allocation is directed toward functional improvements: USB-C DAC, DSP processing, app-based PEQ, and profile sharing, with commodity zinc alloy and a single standard 10mm dynamic driver carrying the chassis. Product line evolution shows measurable progression from the fixed-cable Chu to the detachable-cable Chu II to the USB-C DSP variant. No occult claims, no vacuum tubes, and no inaudible-effect marketing appear, and existence as a dedicated USB-C IEM is justified for smartphones lacking a 3.5mm jack. The architecture is no longer innovative in 2026, and app integration is conventional rather than AI- or cloud-grade, capping the upside.

Advice

The MOONDROP Chu II DSP is a reasonable entry into USB-C DSP IEM listening for users who want app-based parametric EQ on a smartphone without a 3.5mm jack. Frequency response and distortion behavior, particularly with the Default DSP preset engaged, are competently executed and Moondrop Link 2.0 offers genuine tuning flexibility within its 5-band PEQ window. However, the MOONDROP Quarks DSP at 15 USD delivers equivalent measured FR and THD performance with the same essential functions at roughly two-thirds the price, so cost-conscious buyers should consider it first. The short 3-month cable warranty also warrants noting given the cable contains the DAC and DSP electronics.

References

[1] MOONDROP - CHU II Official Product Page - https://moondroplab.com/en/products/chu-ii - accessed 2026-05-18 [2] Linsoul Audio - Moondrop Chu II DSP product page (specs, warranty, distribution) - https://www.linsoul.com/products/moondrop-chu-ii-dsp - accessed 2026-05-18 [3] Pragmatic Audio - Moondrop Chu II DSP review (FR/THD/group delay plots, IEC60318-4 coupler, DSP preset comparisons) - https://www.pragmaticaudio.com/reviews/2024/04/moondrop-chu-ii-dsp/ - accessed 2026-05-18 [4] Audio Science Review forum - Moondrop Chu II DSP EQ Review thread (FR/THD plots, PEQ behavior) - https://www.audiosciencereview.com/forum/index.php?threads/moondrop-chu-ii-dsp-eq-review.53470/ - accessed 2026-05-18 [5] Amazon US - MOONDROP Quarks DSP (ASIN B0BQVPVR3L) - https://www.amazon.com/MOONDROP-Earphones-Equipped-Connection-Supports/dp/B0BQVPVR3L - accessed 2026-05-18

(2026.5.23)
